Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > TCK6336S China Supplier Incline Bed CNC Lathe Machne in China
TCK6336S China Supplier Incline Bed CNC Lathe Machne in China
US$ 14444.00 - 14444.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Ningbo Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
J32 CNC Lathe for Sale in Dubai/ Export to DubaiNegotiableMOQ: 1 Set -
CK6140 Shandong 8" Three Jaw Manual Chuck Flat Bed CNC Lathe Made in ShandongUS$ 10540.00 - 10540.00MOQ: 1 Set
-
CK6165E Long Work Piece (pipe) Automatic Turning LatheNegotiableMOQ: 1 Set
-
J32 Chino CNC TornosNegotiableMOQ: 1 Set
-
H6240 China Supplier Linear Guide Flat Bed CNC LatheNegotiableMOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
390mmm
Place of Origin
Shandong, China
Brand Name
Pulute
Model Number
TCK6336S
Voltage
220v/380/440v
Power(W)
5.5KW
Dimension(L*W*H)
2500*1340*1710mm
Weight
2500kg
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
China supplier incline bed CNC lathe machne in China
1.TCK6336S China supplier incline bed CNC lathe machne in China specification
| China supplier incline bed CNC lathe machne in China | TCK6336S |
| Max. swing over bed |
390 mm |
| Max. swing over cross slide | 130 mm |
| Spindle speed | 3500 rpm |
| Spindle nose | A2-6 |
| Spindle bore | 56 mm |
| Max. bar diameter | 45 mm |
| work piece clamping type | 6" hydraulic collet chuck |
| Spindle motor | 5.5 kw |
| X/Z feed motor power | 1.5 kw |
| X/Z feed motor torque | 6/6 Nm |
| X/Z position accuracy |
0.016/0.016 mm |
| X/Z repeatability |
0.006/0.006 mm |
| X/Z rapid feed speed | 18/15 m/min |
| Cutting tool shape size | 20*20 mm |
| Total power capacity | 9 kva |
| Machine dimension (L*W*H) | 2500×1340×1710 |
| N.W. | 2500 kg |
2. Advantages of TCK6336S China supplier incline bed CNC lathe machne in China
- 6" hydraulic chuck
- 5.5 kw main motor. the larger power main motor optional
- TCK6336S 45 degrees slant bed CNC lathe, reasonal mechanical design, easy chip convey

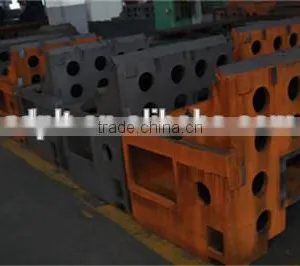

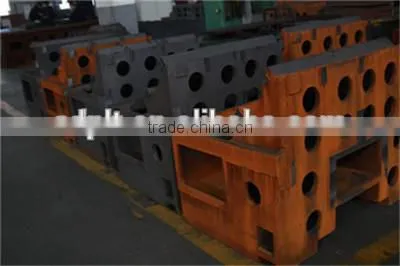

- one piece machine bed ensures high rigidity and high reliability
- Taiwan famous brand high precision linear guide way
- high speed spindle up to 3500 rpm
- pre-stretching structure ball screw could lowen friction much
- gang type tool post with quick tool changing time
-
Please click SEND and learn more details and other products.
