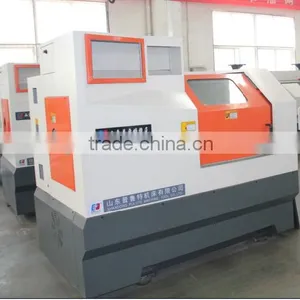

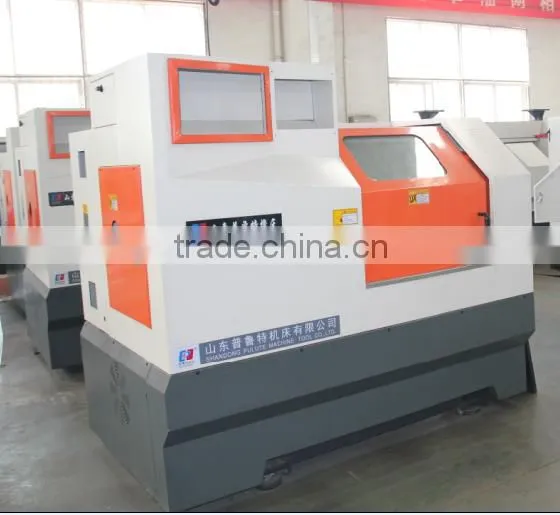

gang type tool post, collet chuck , flat bed linear guide CNC lathe machine
1.Specification of H36 gang type tool post, collet chuck , flat bed linear guide CNC lathe machine
gang type flat bed linear guide CNC lathe machine |
Unit |
H36 |
Max. swing over bed |
mm |
Φ360 |
Max. sing over cross slide |
mm |
Φ110 |
Max. processing length |
mm |
250 |
Chuck |
inch |
6″ optional |
X axis travel |
mm |
340 |
Z axis travel |
mm |
250 |
Spindle unit speed |
rpm |
2500 /4000 |
Spindle nose |
|
A2-5 |
Thro-hole diameter of spindle |
mm |
Φ48 |
Spindle drawing bar diamter |
mm |
Φ38 |
Rapid feed speed |
m/min |
X:15 Z:15 |
Spindle motor power |
kw |
4 |
X/Z motor power |
kw |
1/1.5 |
X/Z motor torque |
N.m |
4/4 |
Tool bar section |
mm |
20×20 |
Optional |
|
4-station electric turret |
X/Z position accuracy |
mm |
0.016/0.02 |
X/Z repeatability |
mm |
0.006/0.006 |
Machine dimension (L*W*H) |
mm |
2000×1400×1580 |
N.W. |
KG |
1500 |
2.Standard accessories of H36 gang type tool post, collet chuck , flat bed linear guide CNC lathe machine
GSK980TDC or Siemens 808d NC system
invertor motor 4kw
4 station gang type tool post
spring collet
automatic integrated lubrication system
coolant system
lighten system
3.Optional accessories ofH36 gang type tool post, collet chuck , flat bed linear guide CNC lathe machine
KND 1000Ti, Fanuc 0I MATE TD NC system
servo motor 3.7/5.5 kw
inverter 5.5 kw
4 station electric turret
6″Non-through hole hydraulic chuck
6″through hole hydraulic chuck
6″Non-through hole hydraulic chuck (Taiwan)
6″through hole hydraulic chuck(Taiwan)
H36 gang type tool post, collet chuck , flat bed linear guide CNC lathe machine
To choose the most suitable and economic CNC lathe model, please kindly tell the following
info. in details
work piece material and usage, solid type or hollowed type ( pipe type), list all of outer diameters
and inner diameter, drawings is best to be sent to us too.
Please talk with us on aliabba TM. We will reply you at once.
Click " send " now and learn more about our products.
