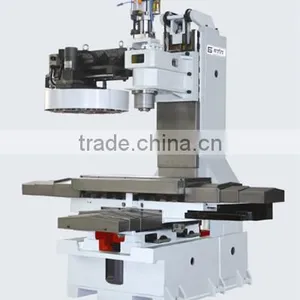

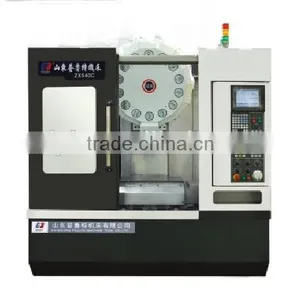

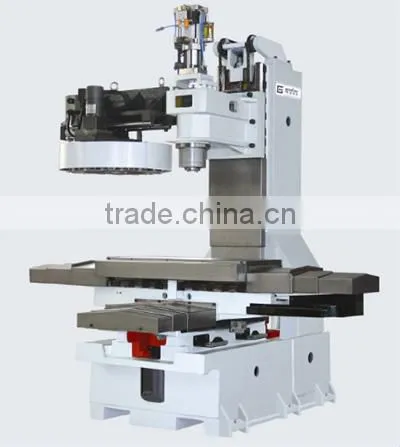

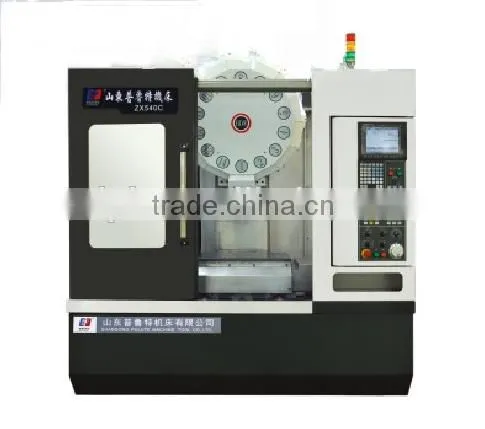

drilling and tapping machine center
1. ZX540C drilling and tapping machine center specification
table size |
400*600mm |
x, y, z axis travel |
500/400/300mm |
spindle center to column surface |
450mm |
spindle nose to table surface |
155-455mm |
T slot qty-width*distance |
3-14*100mm |
spindle taper |
MT30/ diameter100mm |
spindle speed |
12000rpm |
x, y, z axis ball screw |
2516/2516/3616 |
x, y ,z axis rapid feeding |
48m/min |
x axis linear guide way specification |
HGH25CA |
y axis linear guide way specification |
HGH25CA |
z axis box way specification |
HGH30CA |
x, y, z axis motor connection |
direct connection |
main motor power |
5.5 kw |
x, y, z axis motor torque |
8/10/12 Nm |
x, y, z guide way cover bracket |
260*220mm |
foundation parallels height |
40mm |
max. loading of table |
250 kg |
N.W. |
3200 kg |
2.ZX540C drilling and tapping machine center configuration
good quality resin sand casting
Taiwan brand spindle
Hiwin ball screw
NSK bearing
imported ball screw linear guide way
S+J/ R+W imported coupling
cutting coolant system
spindle blowing
motor heat ex-changer
full splash guard
Japanese MPG
automatic lubrication system
mechanical abnormal alarm tri-chromatic lamp
BT30 clamping arm type turret
Please click the following SEND to get more pictures, more models and best price .
