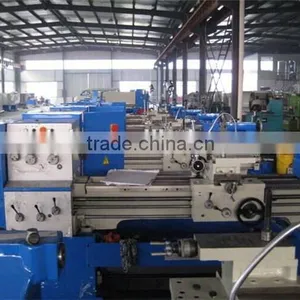

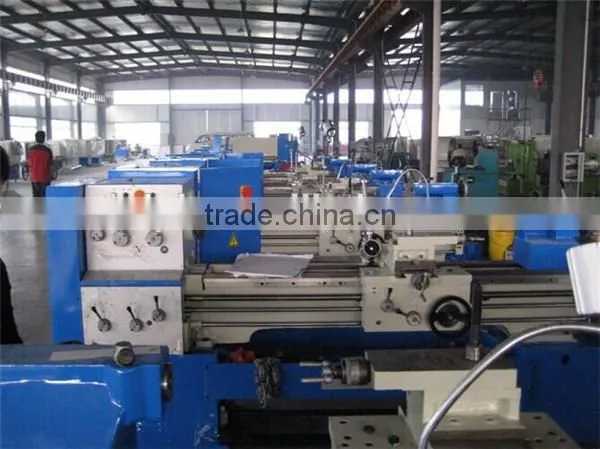

Help CenterCH6250C Small Universla Lathe Machine
Related Products
small universla lathe machine
1. specification of small universla lathe machine C6250C
capacity |
machine model |
bench lathe C6250C |
Swing over bed |
500mm |
|
Swing over cross slide |
330mm |
|
Max.swing over gap |
660 mm |
|
Effective length of gap |
200 mm |
|
Center Distance |
750mm/ 1000mm/1500mm |
|
Bed Width |
360 mm |
|
head stock |
Spindle hole |
52 mm |
Spindle nose |
ISO-C6 |
|
Spindle taper |
MT6# |
|
Spindle speed(Number) |
(9steps)40-1400rpm |
|
threads |
Module threads range |
11 kinds 0.25-3.5 mm/rev |
Metric threads range |
18 kinds 0.5-14mm |
|
Inch threads range |
27kinds 2-20inch |
|
carriage |
Max. Travel of top slide |
95 mm |
Max. Travel of cross slide |
230 mm |
|
Max. Size of tool shank |
20*20 mm |
|
tailstock |
Dia.of tailstock sleeve |
65mm |
Taper of tailstock sleeve |
MT4 |
|
Max.travel of tailstock |
140mm |
|
motor |
Main drive motor |
4KW or 5.5 KW |
Coolant pump motor |
125W |
|
Dimension |
750mm C6236H |
225*115*165cm |
1000mm C6236H |
245*115*165cm |
|
1500 mm C6236H |
288*115*165 cm |
|
weight |
750mm C6236H |
1500/1900 kg |
1000mm C6236H |
1600/2000kg |
|
1500 mm C6236H |
1750/2150kg |
2.Standard accessories of small universla lathe machine C6250C
3. Optional accessories of small universla lathe machine C6250C
4. features of small universla lathe machine C6250C CH6250C
Bed rail is VHF hardening and precision grinding , higher rigidity and higher precision.
Head-stock gears are precision grind-ed, lower noise .
Threads turned are variety.
Electricity is very safety in performance, high reliability.
An electromagnetic valve optional could brake the lathe and improve lathe safety.
Bed is available for a variety of colors.
Click send now and get the more info. of our products.
