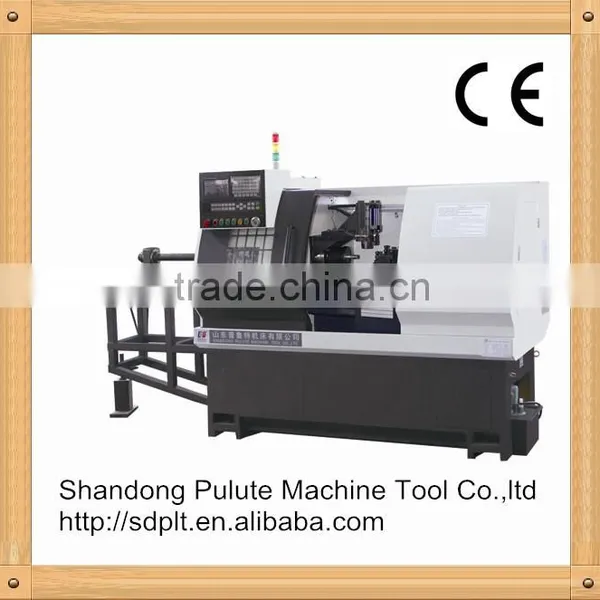

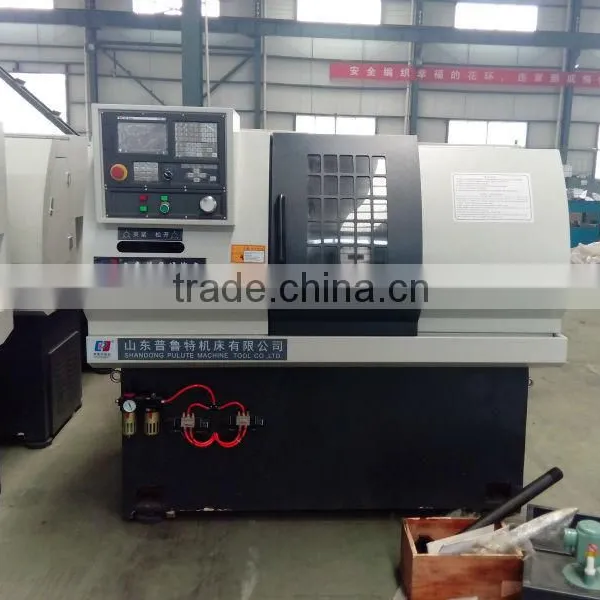

CNC LATHE ECONOMIC
1.CK6140 cnc lathe economic specification
| CK6140 cnc lathe economic | ||
| Capability | Max. swing dia. over bed | 400mm |
| Max. swing dia. over cross slide | 250mm | |
| Max. cutting dia. | 400mm | |
| Max. processing length | 490/750mm | |
| Spindle | Go-ball dia. od spindle | 48mm |
| Spindle taper | 40 degrees | |
| Spindle speed | 150-1800 rpm | |
| Main motor power(Variable frequency) | 7.5Kw | |
| Transducer | 11Kw | |
| X/Z axis | X/Z travel | 490/750mm |
| X/Z mini setting unite | 0.001mm | |
| X/Z motor torque | 4/6N.m | |
| X/Z repeatability | 0.012/0.013mm | |
| X/Z rapid feeding speed | 5/8 m/min | |
| Tailstock | Tailstock sleeve dia. | 60 |
| Tailstock sleeve strock | 100 | |
| Tailstock taper | MT4# | |
| Tool holder | Type | 4-position electric type |
| Tool bar size | 20*20mm | |
| Tool holder repeatability | 0.001mm | |
| Dimension | 2200*1100*1620mm | |
| Net weight | 1600kg | |
2.Standard accessories for this CK6140 cnc lathe economic
GSK980TDC or Siemens 808D NC system
inverter motor 5.5kw

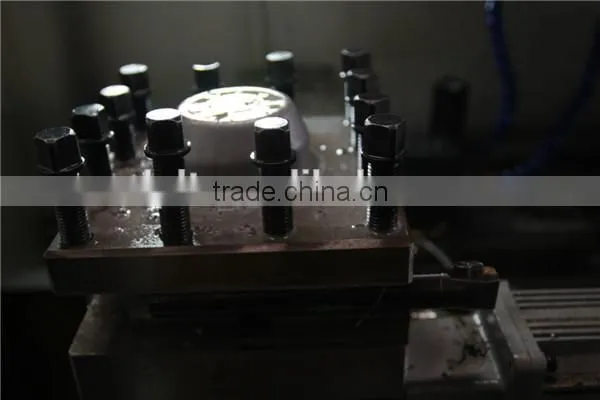

4 station electric turret

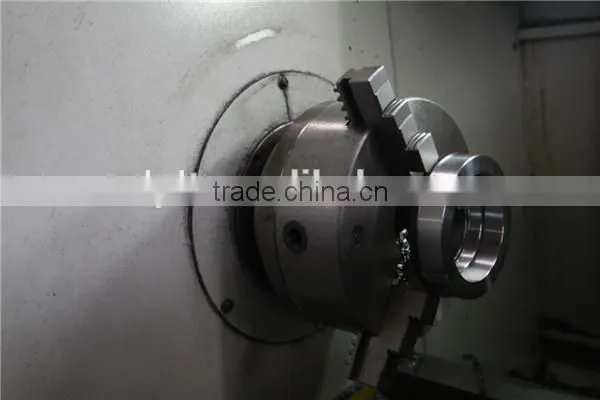

200 mm manual chuck
manual tailstock
integrated automatic lubrication system
coolant system
lighten system
3. Optional accessories for this CK6140 cnc lathe economic
Fanuc 0I mate TD or KND1000Ti
servo motor5.5 /7.5 kw
inverter motor 7.5 kw
6 station electric turret
8″Non-through hole hydraulic chuck
8″through hole hydraulic chuck
8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
steady rest

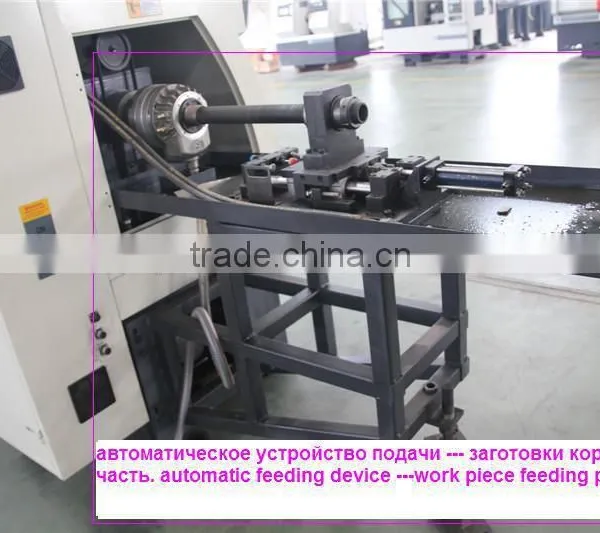

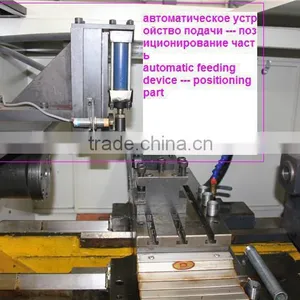

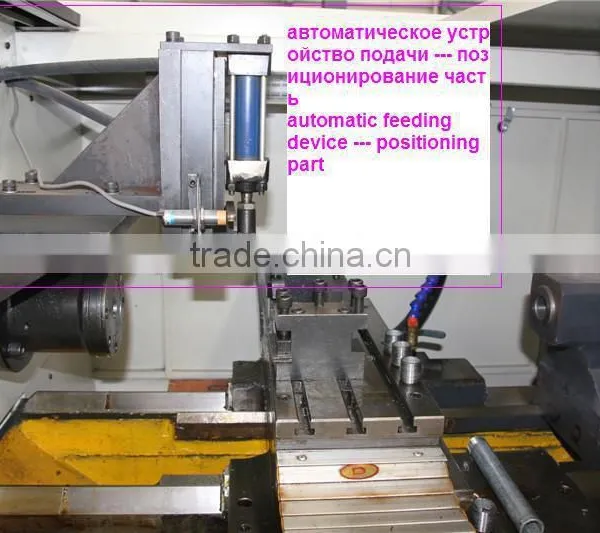

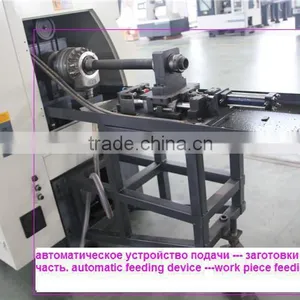

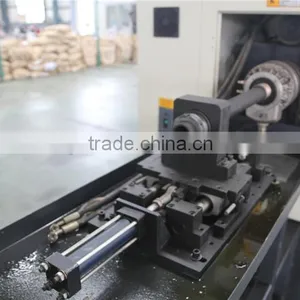

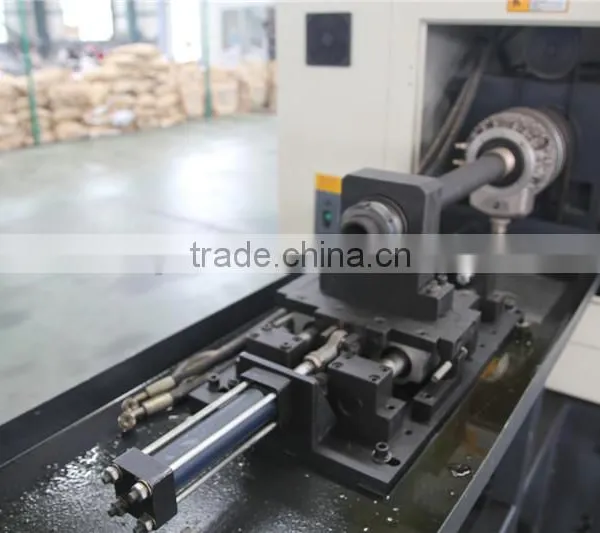

automatic feeding device

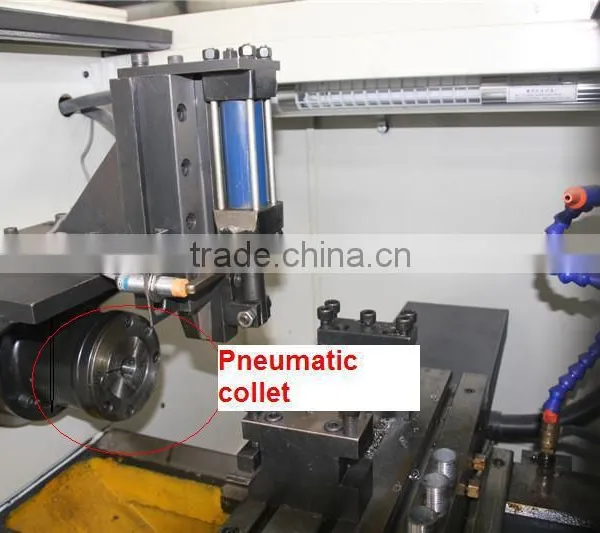

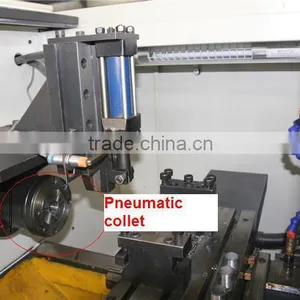

spring collet
4.Warranty
1. engineers are available to do oversea machinery service. In some countries, we have oversea
agent doing after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered
with machine for customer convenience.
5.We offer best agent price and distributer price.
5.Customer and delivery for all of lathe
accept ODM, OEM,
accept FOB, CFR, CIF, EXW price,
T/T 30% as deposit and the balance before machine tools leave our factory.
normal products with standard configuration manufacturing time is 7-15 working days.
6.Lathe package

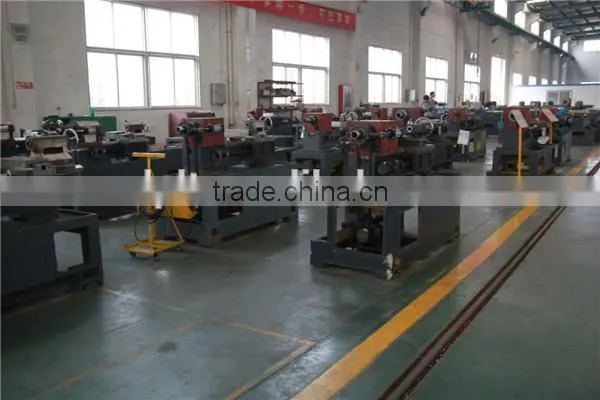

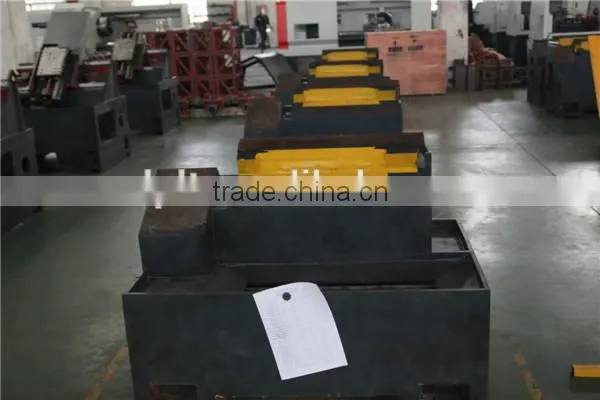

8.Factory and office building
1) Factory covers 120,000 square meters including casting,machining,assemble workshops, above
70 intermediate and senior technical personal.
2) Our casting workshop adopts lost foam to guarantee the size and precision of casting parts.
3) All the parts are performed heat treatment, natural failure, vibrating stress relief(VSR) to relieve
internal stresses.
4) All the guide surface are performed quenching.
5) we implement assembly line,and the assemble workshop includes feed box team,gear box team,
worktable team,hydraulic unit team,scrabbing team,drilling hole team,power distribution team,
daubing and painting team, test team and after-sale service team.
6)ERP information management makes our production and management more and more
standardization, networked and refinement.
To choose the most suitable and economic CNC lathe model, please kindly tell the following
info. in details
piece material and usage, solid type or hollowed type ( pipe type),
2. list all of outer diameters and inner diameter,
3. drawings is best to be sent to us too.
4. special requirement
Click “send” now and learn more details of our products.
