Help CenterBest Copartner L.C.D. Cable UL20276
Related Products
-
Best Copartner UL 2919 Low Voltage Comaputer CableNegotiableMOQ: 5000 Miles -
Best Copartner UL2464 Braided Computer CableNegotiableMOQ: 5000 Miles
-
Best Copartner KVM 3F CableNegotiableMOQ: 5000 Miles
-
Best Copartner Lan CableNegotiableMOQ: 5000 Miles
-
Best Copartner MIL-C-17F Coaxial Cable RGNegotiableMOQ: 5000 Miles
Specifications
Rated Temperature: 60aaor 80aa. Rated Voltage: 30 volts.Shielded twisted pairs
Twisted pairs each individually and drain
Copartner
Founded in 1987, Copartner Tech Corp. has been a leading manufacturer of cable and wire products. For more than twenty years, we supply products for information, communications and electronics industries around the world. In the area of electronics and communications, we have established a huge customer base and partnerships with many well-known companies from Europe, America, Australia, Japan, and South-East Asia.
In 1993, Copartner made an initial investment and formed its first company in China - Copartner Wire & Cable (Shenzhen). As the business grows steadily, we have continuously extended investment in China. Today, there are more than ten companies under Copartner Tech Corp. We have also set up R&D laboratories in various sites to ensure product quality, to meet market demand, and to accomplish innovation.
All products from Copartner are designed by most advanced AI philosophy, cutting-edge technology, and excellent sense of artistry; through professional experiments and accurate testing, we guarantee that every product made by Copartner come with the most satisfactory quality. With professional enthusiasm, we provide complete customer services, strong R&D capabilities, and excellent product quality control. All of the advantages contribute to establishing a more-important-than-ever position for Copartner in the global market. Leading the world into the new era of digital economy, we use our unique professional skills intergraded with customized services to provide brand new technology-based product solutions. By connecting the future, we create the win-win strategy for each of our customers.

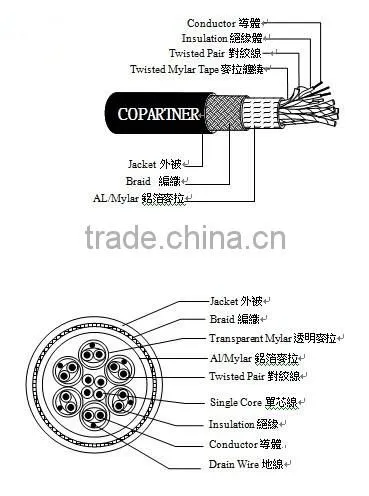

• Rated Temperature: 60℃or 80℃. Rated Voltage: 30 volts.
• Shielded twisted pairs
Twisted pairs each individually and drain wire,
Al-mylar shielded and polyester tape outside foil
• Conductor: 30AWG or 28AWG stranding tinned copper
• Insulation: Foamed PE
• Drain Wire: 30AWG standing tinned copper
• Twisted pairs or single wire
Conductor: 28 or 20AWG stranding tinned copper
Insulation: SR-PVC or PE
• Filler optional
• Binder: polyester tape foil optional
• Inner Shielded: Al-mylar foil side facing out 25% overlap
• Outer Shielded: 36AWG tinned copped braid 80% (min.) coverage
• Jacket: PVC
• Print Legend: UL 20376 or UL 20379
• Electrical Properties
• DC Conductor Resistance at 20℃
30AWG: 376.96Ω/KM (MAX)
28AWG: 237.25Ω/KM (MAX)
• 30AWG shielded pairs differential impedance at TDR 100±10Ω
• Mutual capacitance about 14 pf/ft
• Timed delay about 1.43 ns/ft
Remarks:
For the transmission between Monitor and the display interface,
cables utilized for DVI(Digital Video Interface)are divided into 2 groups:
1) For digital use (by utilizing twist pair signal wire)
2) For analog use (by utilizing RGB coaxial cable)
DVI = Digital Visual Interface
Applications:
L.C.D Cable
Packaging
We will packed as customer request.
