Home > Instruments & Meters > Test Instrument > Test Machine > Coal-organic Heat Carrier Furnace

Coal-organic Heat Carrier Furnace

Name: Coal-organic Heat Carrier Furnace
Brand: APEX
SKU: 115265559

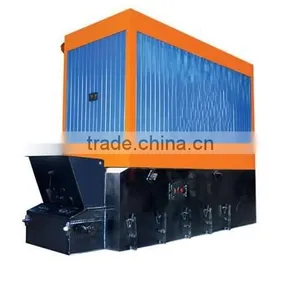

Coal-organic Heat Carrier Furnace thumbnail-1

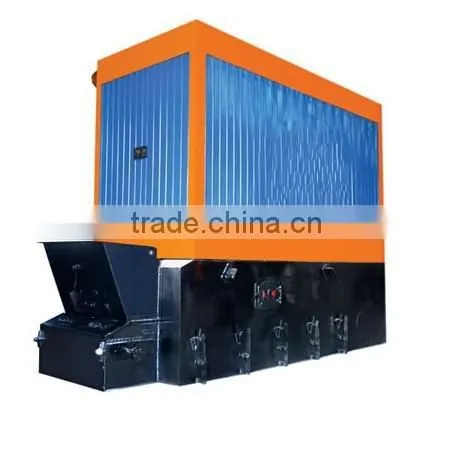

Coal-organic Heat Carrier Furnace photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

APEX

Model Number:

LKK203

Contact Supplier Request Quote Chat Now

Zhengzhou Prominent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name APEX

Model Number LKK203

Power Electronic

Usage Auto Testing Machine

Specifications

Organic heat carrier furnace, based on coal, oil and gas as fuel to heat the circulating medium oil as a new energy equipment.

Product Description

Features:
The furnace is to oil as a carrier of the boiler, so that after conducting oil furnace evenly heated by forced circulation pump with heat delivered to the hot equipment, thermal oil heating furnace back again, summarized as follows circulation.
Organic heat carrier furnace, based on coal, oil and gas as fuel to heat the circulating medium oil as a new energy equipment. It uses high-temperature thermal oil circulating pumps were forcibly closed loop, return to the heat for process heating boiler to heat the device. Since it has a high temperature (320 ℃ above) Low (0.3-0.5MPa) benefits, and its heating temperature can be controlled accurately, it can replace the original steam boiler heating. Meanwhile, the device does not require water treatment equipment and no running steam boiler, run, drip, leak heat loss, so its a one-time investment, low operating costs, is a safe, efficient, energy-saving heating equipment.

Specification:

Project	Unit	LKK203A-70MA	LKK203B-100MA	LKK203C-120MA	LKK203D-240MA	LKK203 E-350MA	LKK203F-500MA	LKK203 G-700MA
Project	Unit	(6*104Kcal)	(8*104Kcal)	(10*104Kcal)	(20*104Kcal)	(30*104Kcal)	(43*104Kcal)	(60*104Kcal)
Rated thermal power	KW	70	100	120	240	350	500	700
Thermal efficiency	%	≥62	≥62	≥62	≥62	≥62	≥62	≥62
Design pressure	Mpa	1.1	1.1	1.1	1.1	1.1	1.1	1.1
Media maximum temperature	℃	340	340	340	340	340	340	340
Cycle oil	m³/h	8	10	12.5	20	30	40	60
Diameter pipe connection	DN	50	50	50	50	65	65	100
System-wide capacity	KW	2.2	2.2	4.5	7.0	14.5	14.5	23.5
Fired species		MA II III	MA II III	MA II III	MA II III	MA II III	MA II III	MA II III
Coal consumption	kg/h	17	25	29	58	87	124	173
Dimensions (diameter * height)	mm	1050*2112	1150*2367	1230*2450	1340*2970	1600*3385	1660*3720	1920*4258
Gross weight	kg	1210	1400	1780	2910	3670	4400	5700

Packaging & Shipping

Compression wood packaging, Maritime

Our Services

Good method on using and operating lab equipment can greatly improving the testing accurate, improve the product quality and lengthen the service life of your instrument. This can help engineer to complete the testing.

APEX provide training service for equipment using and for the collective industry knowledge. Our aim is to spread complete laboratory knowledge, train common users to be professional operator.
