Specifications
surge arresterDC12V, DC24V
OEM available
remote contact
12V24V DC electrical items, electrical products, surge arrester

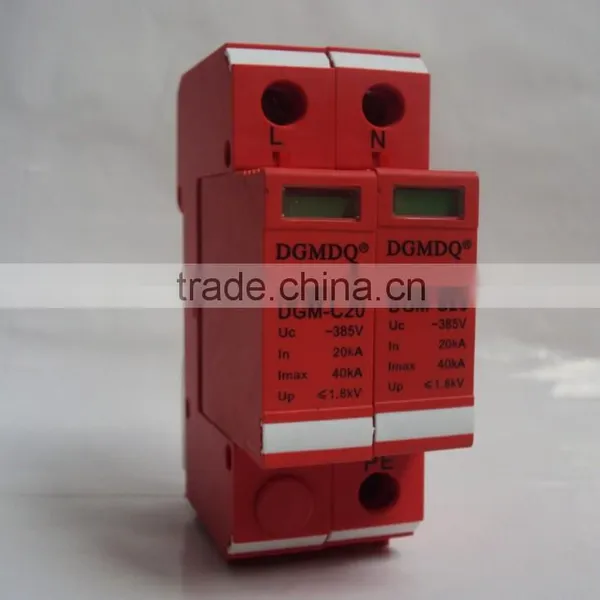

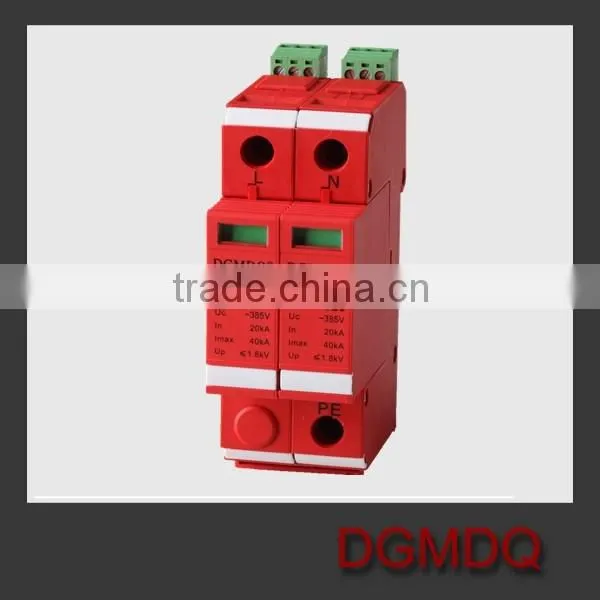

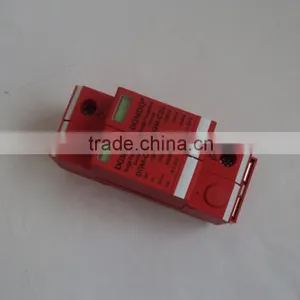

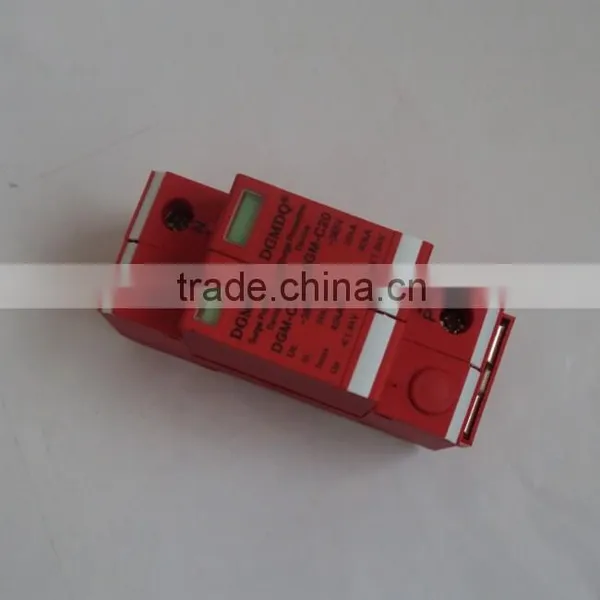

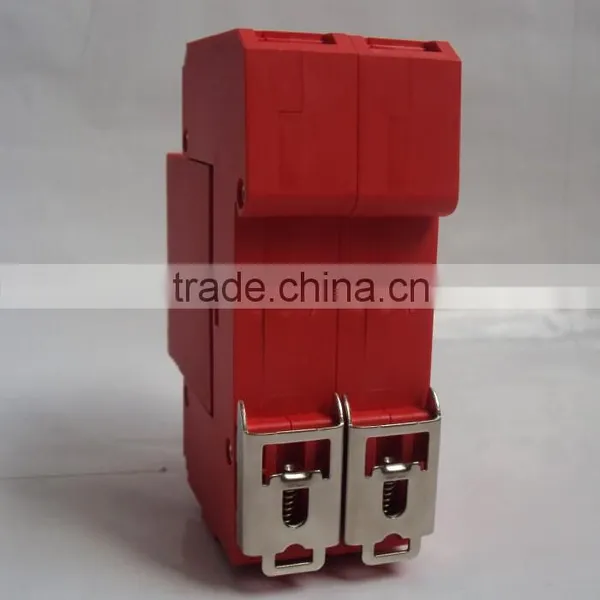

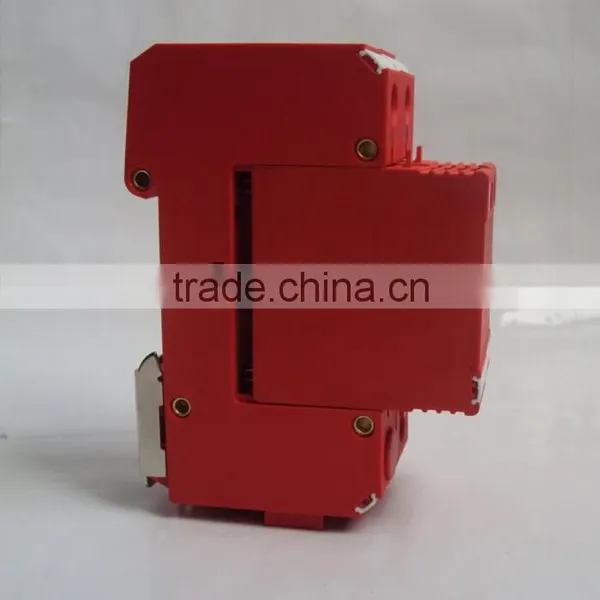

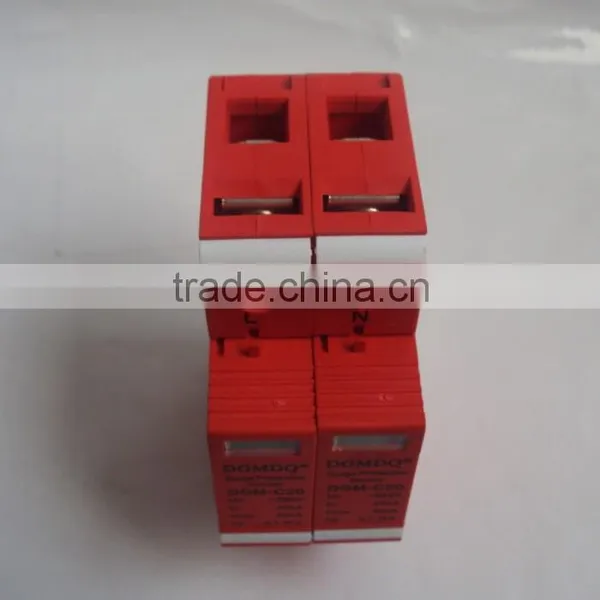

1.Pictures of 12V DC surge arrester
2. Description of 12V DC surge arrester
The products comply with IEC61643-1, GB18802.1.
The housing is fixed on 35mm electrical guide, and with failure release device inside. As long as SPD become invalid after the breakdown caused by over-heat and overload current, the failure release device will be disengaged from power system automatically with the warning indicator turning from Green (normal) to Red (failure).
SPD is usually installed in household power distribution boards, telecom machinery center, computer equipment center, elevator control center, hospital's surgery and ICU, information equipment, electronic equipment and in front of control equipment or nearest socket box of control equipment.
No. |
DC power system Voltage(V) Un |
Continuous Voltage Uc(V~) |
Standard Discharge Current In(KA) |
Max Discharge Current Imax(KA) |
Protection Level(KA~) |
DGM-D5-Z/12 |
12 |
16 |
5 |
10 |
120 |
DGM-D5-Z/24 |
24 |
32 |
5 |
10 |
150 |
DGM-D5-Z/48 |
48 |
62 |
5 |
10 |
250 |
DGM-D5-Z/110 |
110 |
140 |
5 |
10 |
500 |
DGM-D10-Z/12 |
12 |
16 |
10 |
20 |
150 |
DGM-D10-Z/24 |
24 |
32 |
10 |
20 |
200 |
DGM-D10-Z/48 |
48 |
62 |
10 |
20 |
300 |
DGM-D10-Z/110 |
110 |
140 |
10 |
20 |
600 |
DGM-C20-Z/48 |
48 |
62 |
20 |
40 |
350 |
DGM-C20-Z/110 |
110 |
142 |
20 |
40 |
650 |
