Specifications
ABS BV Marine Offshore Cable1.tinned copper conductor
2.XLPE insulation
3.PVC/PO sheath
4.ABS BV DNV certificate

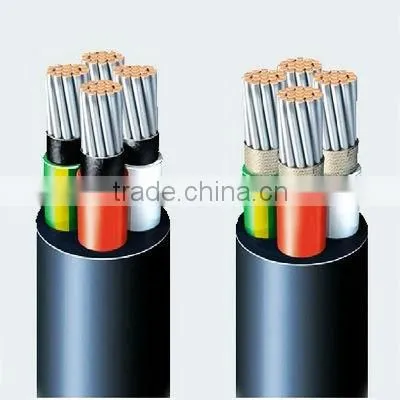

ABS BV Marine Power Cable
Rating voltage: 600V/1000V
Standards applied
IEC60228 IEC60092-350 IEC60092-351 IEC60092-353 IEC60092-359
IEC60332-1 IEC60332-3-22 IEC60331 IEC60754-2 IEC60134-2
Construction:
1. Conductor: tinned copper wire,class2 or 5
2. Fire resistant Mica tape on request
3. Insulation: XLPE/EPR
4. Filler ( if necessary)
5. Tape
6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)
7. Screen/Armored: tinned copper wire braided or Galvanized steel wire braided
8. Outer sheath:PVC/PCP/PO(SHF1, SHF2)
Control cable Specifications
Cores: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37
Nominal Cross-section Areas: 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2, 300mm2
Flammability features
SA:bunched cable flame retardant
SC:bunched cable flame retardant,halogen free & low smoke
NA:bunched cable flame retardant,fire resistant
NC:bunched cable flame retardant,fire resistant,halogen free & low smoke
Application
The cable is intended for power,lighting of shipboard or offshore building.It is also available for power plant,chemical works and mines,etc.
Classification Society Certificates
CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.
The radius of bend for the installation of cables
Cable structure features |
Over diameter of cable(D) |
Minimum internal bending radius |
Metal braided armored |
Any value |
6D |
Non-armored |
D≤25 |
4D |
D25 |
6D |
