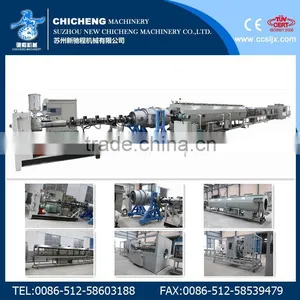

CE&ISO High Quality PE Water Supply Pipe Production Machine
The System configuration of PE Water Supply Pipe Production Machine
(a) Feeding machine
(b) Conical single-screw extruder
(c) Mould
(d) Vacuum Calibrating tank
(e) Hauling off machine
(f) Printing machine
(g) Pipe cutting machine
(h) Pipe pile-up frame
(i) Auxiliary machine such as feeding, belling and crushing machine.
Technical Date of PE Water Supply Pipe Production Machine
| Main Eetruder | 45/33 | 75/33 | 60/33 | 75/33 | 990/33 | 90/33 | 120/33 | 120/33 | 150/33 | 150/33 | 150/33 |
| Pipe Diameter | 16-63 | 16-63 | 32-125 | 75-250 | 110-450 | 160-500 | 160-500 | 250-630 | 315-800 | 450-1000 | 630-1200 |
| Die Head | Single Outlet | Double Outlet | Single Outlet | ||||||||
| Down-stream Equipment | LG63 | SLG63 | LG125 | LG250 | LG450 | LG500 | LG500 | LG630 | LG800 | LG1000 | LG1200 |
| Total Power | 70 | 125 | 150 | 230 | 380 | 380 | 550 | 550 | 800 | 800 | 1000 |
Please feel free to contact us for more information. Additionally, it is worth noting that, it will be more advantageous if you told the diameter and more details of the pipes you are going to produce when sending your messages.
Advantages of PE Water Supply Pipe Production Machine
1. Excellent in chemical corrosion, no rust;
2. With self extinguishing and flame retardant;
3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60 degrees Celsius;
4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7% higher than the cast iron pipe;
5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to the steel pipes, low labor intensity, short duration;
6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23 to 2kv/mm;
7. The toughness of PE pipe is low, linear expansion coefficient is high, operating temperature range is narrow.
Main Applications
1. Water supply and drainage pipelines in building;
2. Rainwater drainage pipelines in building;
3. Electrical wiring pipe in building;
4. Air conditioning condensate water systems.
Our corporation is a major producer of plastic extruder.We are in a position to accept orders against customers samples specifying design, specifications and packaging requirements. Welcome to inquiry,looking forward to cooperating with you in long terms!!!
