Shacman tractor truck with 10 wheels for sale
About F3000 series
The F3000 Series products are the latest success of SHACMAN. Introduced in 2009 it quickly became one of our top selling products. The F3000 has an improved driver’s cab utilizing advanced technologies from the German truck giant, MAN. The power of the F3000 series comes from Wei Chai Euro III, IV engines or the Euro III, IV and V electric control engines Made by Cummins. F3000 series utilize technologies introduced by MAN in its front/rear axles and its suspensions, cooling system of the chassis, the intake/exhaust systems and the chassis structure/layout. Powerful, safe, reliable and comfortable, the F3000 is a refined product line positioned in the high-end market of the truck manufacturing industry. The F3000 series has many optional equipments to customize from; it is a new generation of products that meets the toughest demands and requirements for all purposes under any working condition.
specification
| Model | SX4257NT324 |
| Drive type | 6x4 |
| Weight | |
| Complete kerb mass (kg) | 9400 |
| GVW (kg) | 29400 |
| GCW(kg) | 60000 |
| Dimensions | |
| Max.length(mm) | 6825 |
| Max.width(mm) | 2490 |
| Max.heigh(mm) | 3710 |
| Front / Rear overhang (Chassis) | 1525/725 |
| Wheel base(mm) | 3175+1400 |
| Track width(mm) | 2036/1800 |
| Performance | |
| Max.speed (km/h) | 127 |
| Min.turning circle(m) | 15 |
| Min.ground clearance(mm) | 314 |
| Approach / Departure angle (°) | 22/30 |
| Max.gradeability(%) | 34 |
| Engine | |
| Brand | WEI CHAI |
| Model | WP12.375N |
| Power(kw/HP) | 276/375 |
| Max.Torque (N.m )/rpm | 1800/1000—1400 |
| Displacement (L) | 11.596 |
| Bore/Stroke (mm) | 126/155 |
| Emmission Standards | Euro Ⅲ |
| Transmission | |
| Brand | FAST |
| Model | 12JS180TA |
| Control type | manual |
| Gear Shift | 12-forward and 2 reverse speeds |
| Option | —— |
| Clutch | |
| Type | Single plate,diaphragm spring |
| Diameter (mm) | φ430 |
| Action | mechanical type,hydraulic and pneumatic operation |
| Brakes | |
| Type | Drum |
| Service brake |
With dual-circuit compressed air brake |
| Park brake |
Power spring brake acting on rear wheel |
| Auxiliary brake | WEVB |
| Option | ABS |
| Steering | |
| Type |
Integral circulating ball power sreering |
| Option | ZF8098 |
| Chassis | |
| Type |
Ladder structure, widened and cross-section variable |
| Suspension | |
| Front Suspension | Longitudinal leaf spring |
| Rear Suspension | Inverted leaf spring stabilizator suspension |
| Axles | |
| Brand | HANDE |
| Front axle | 7500kg |
| Rear axle |
13000kg(each other) Double reduction driving axle with inter-wheel differential and differential lock. |
| Ratio | 3.866(option 4.266) |
| Option | 11500kg(each other)single reduction or 16000kg(each other)double reduction rear axle |
| Tyres | |
| Type (Standard) | 12.00-20 |
| Option | 12.00R20/11.00-20/11.00R20/12R22.5 |
| Fueltank | |
| Tank capacity (L) | 400 |
| Material | Aluminium |
| Electrics | |
| Type | 24V |
| Starter | 6.2kw(24V) |
| Generator | 2.2kw(28V 80A) |
| Battery | 2×135Ah |
| Cab | |
| Type | MAN F3000, Lengthened high roof |
| Equipments | 2 rear window,mechanical clerestory,4 point air suspension,A/C,air suspension driver seat with handle and seatbelts,two sleeping bed,hydraulic reversal cab,with USB can play radilo with MP3 format |
| Option | electric windows,electricity heated, GPS or CD,rear-view mirror,Tachograph;carPhone;electricity reversal cab |
| Other | |
| The fifth wheel | 2 inch |
| saddle ground clearance(mm) | 1400 |

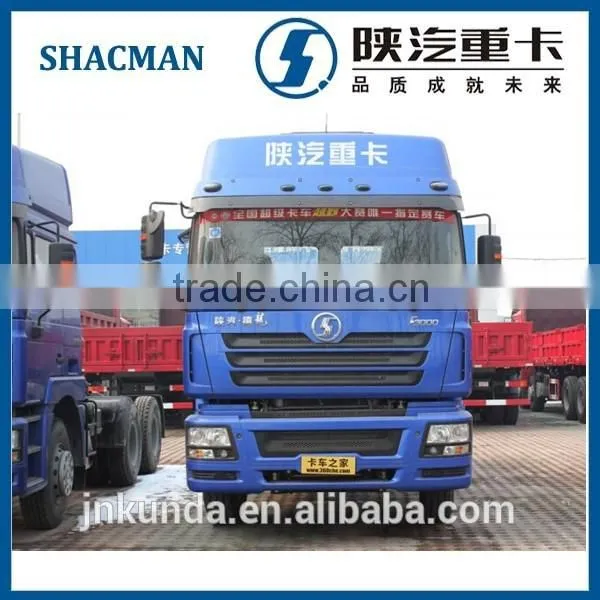

Photos of F3000 tractor truck
Does that truck satisfy your mind? Contact me,I will provide any truck you want.
