Home > Transportation > Trailer > Truck Trailer > Competitive Price 40-60ton 3 Axle Extendable Low Bed Trailer / Low Flatbed Truck Semi Trailer / Low Boy Truck Semitrailer

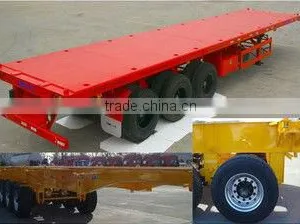

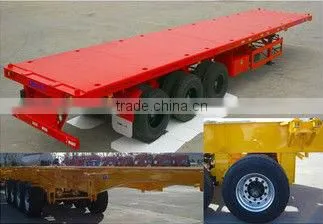

Competitive Price 40-60ton 3 Axle Extendable Low Bed Trailer / Low Flatbed Truck Semi Trailer / Low Boy Truck Semitrailer

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, iso

Contact Supplier Request Quote Chat Now

Jinan Kunda Automobile Sales Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Semi-Trailer

Material Steel

Certification Other, iso

Max Payload 60ton

Place of Origin Shandong, China

Product Name

Model

Outside Dimension

(L×W×H)

leaf spring

NO.of tire

NO. of Axle

type of tire

Rated Loading Capacity

(kg)

Distance of each Axl

low bed semi trailer

low bed

13000,12500X3000,

2800X3150,1710

10 (8)

8.25R20

60000

8310+1310+1310 7810+1310+1310



Main Frame			AH60
Floor			Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness,such as 2mm,2.3mm,4mm,5mm,6mm)
Axle			Brand: FUWA (BPW optional)
Suspension			Independent stamping steel rigid suspension ( air suspension)
King Pin			2" or 3.5" traction pin made in China( Jost optional)
Landing Gear			chinese brand loading 28000kg (JOST optional)
Wheel Rim			7.5 rim
Spare Wheel Carrier			One set of spare wheel carrier including a riser.
Braking System			dual-pipes braking system
Brake Air Chamber			Four double and two single chamber
Electrical System			1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness)
Painting			Sand blasting processing clean rust 1 coat of anticorrosive primer 2 coats of finish urethane paint Color as customer choice
Accessory			One tooling box with a set of standard trailer tool
Usage			Is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment or machine, and all sorts of steel products.
Other Descriptions			The cargo platform is lower than others, is applicable for unsound road condition, ensuring the stablenessof the transportation.
Other Specifications			It's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm,(ladders belong to optional components), with the overall height of 1710 mm
remark			we can designed model according to client's requirement
