Specifications
network card with Bootrom Slot1,The good price
2,Supports 32-bit 33/66MHz PCI Bus
3,Supports ACPI
4,High quality
LREC7230MT
PCI 10/100/1000Mbps Network Card (RTL8169 Based)
RTL8169 PCI Network Card With PXE Slot Features:
Supports 32-bit 33/66MHz PCI Bus
Supports 10/100/1000Mbps Nway Auto-Negotiation
Supports 10/100Mbps full and half duplex, 1000Mbps full duplex
Supports Full Duplex Flow Control (IEEE 802.3x)
Supports IEEE 802.1P, IEEE 802.1Q VLAN tag
Supports Jumbo Frame
Supports Auto-MDI/MDIX
RTL8169 Network Card Provides Bootrom slot, supporting remote boot
Supports ACPI, PCI power management
Contain two large independent receive and transmit FIFOs
One STP/UTP connector
Provides LEDs to indicate network Link/Activity/Speed/Duplex
Support Windows98/98se/2000/ME/NT/XP/2003/VISTA/Novell Netware/LINUX
Plug and Play

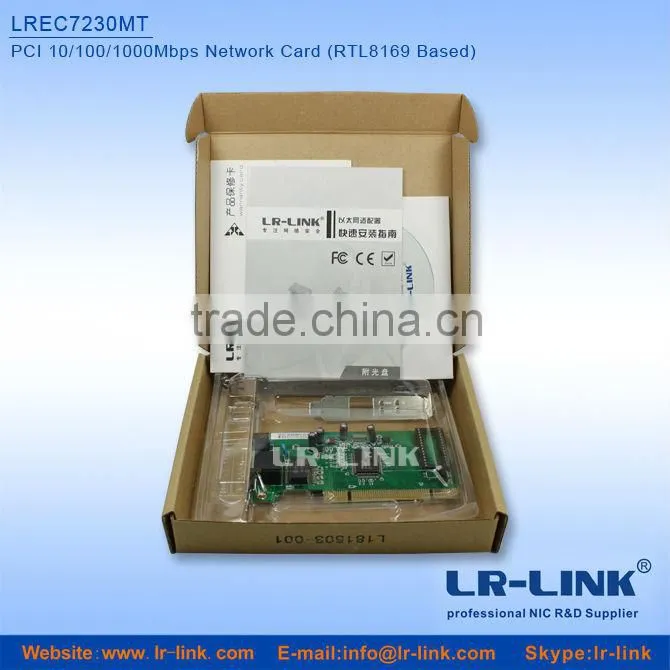

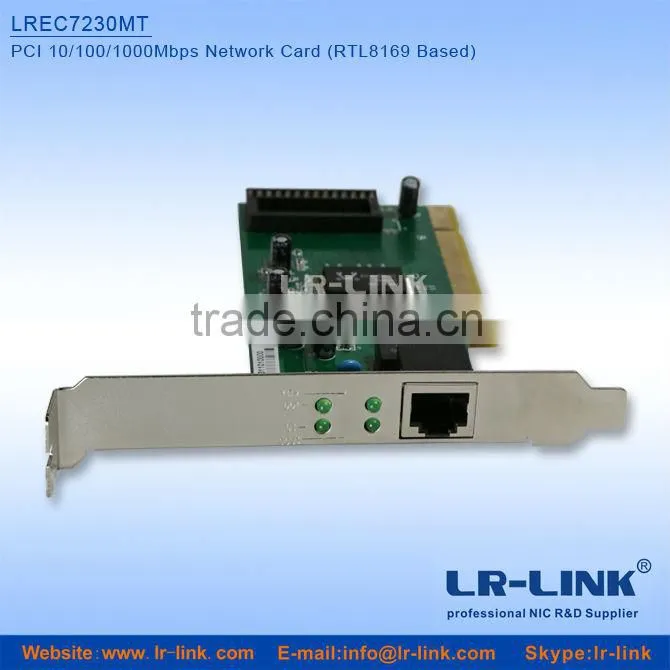

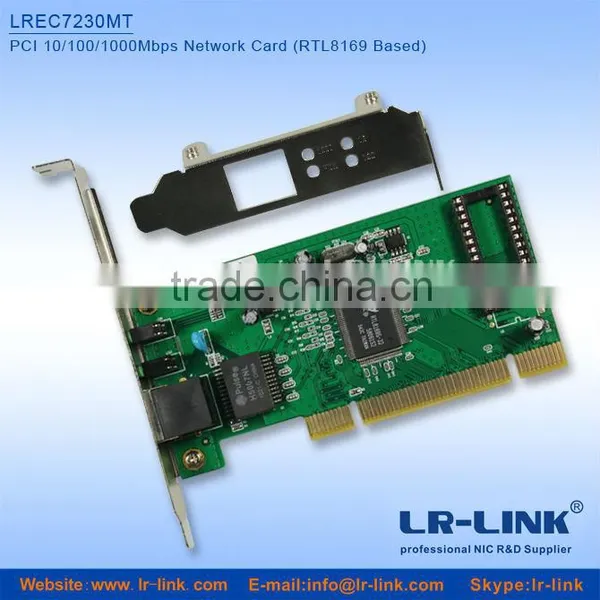

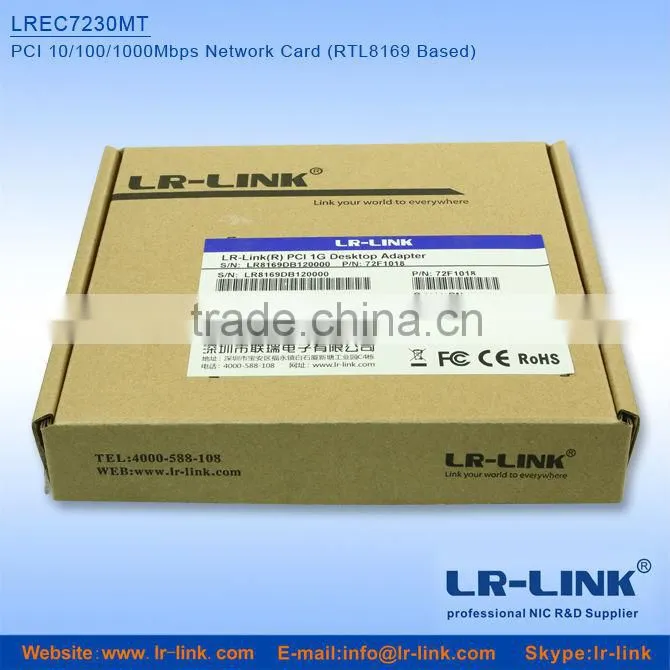

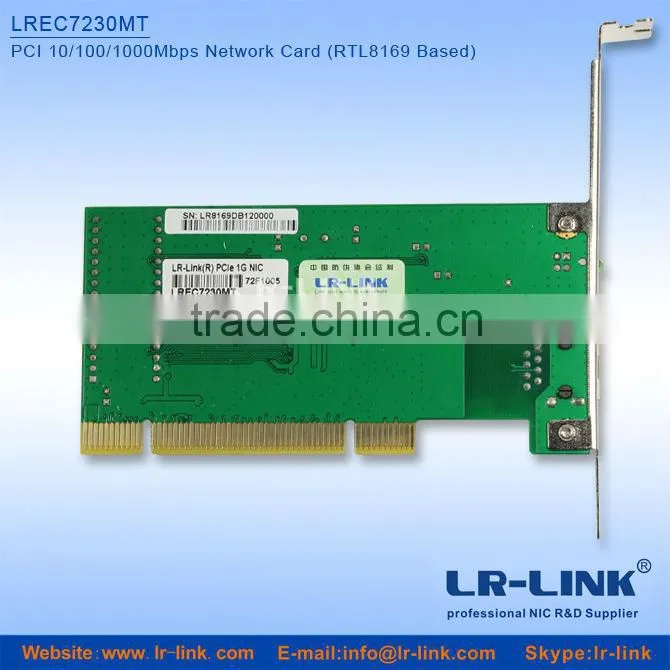

Beautiful Product Picture:
Highlights:
10/100/1000Mbps PCI Adapter
Complies with IEEE 802.3/802.3u/802.3ab Ethernet Standard
RTL8169 PCI Network Card Specifications:
| Standards and Protocols |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p CSMA/CD, TCP/IP, PCI Revision 2.1/2.2 |
| Interface |
32-bit PCI 1 10/100/1000Mbps RJ45 port |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
|
100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000Base-T: UTP category 5, 5e cable (maximum 100m) | |
| Data Rates |
10/100/1000Mbps for Half-Duplex mode 20/200/2000Mbps for Full-Duplex mode |
| LED Indicator: |
1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act, Duplex Flow Control:IEEE 802.3x Flow Control (Full-Duplex) |
Support All Most of Operating System
RTL8169 PCI Network Card Environment:
| Operating Temperature | 0~40 (32~104) |
| Storage Temperature | -40~70 (-40~158) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
RTL8169 PCI Network Card Ordering Information:
M/N |
Description |
|
LREC7230MT |
PCI 10/100/1000Mbps Network Card (RTL8169 Based) |
|
PS: The above details is just for reference,if there is any change,no inform will have.
