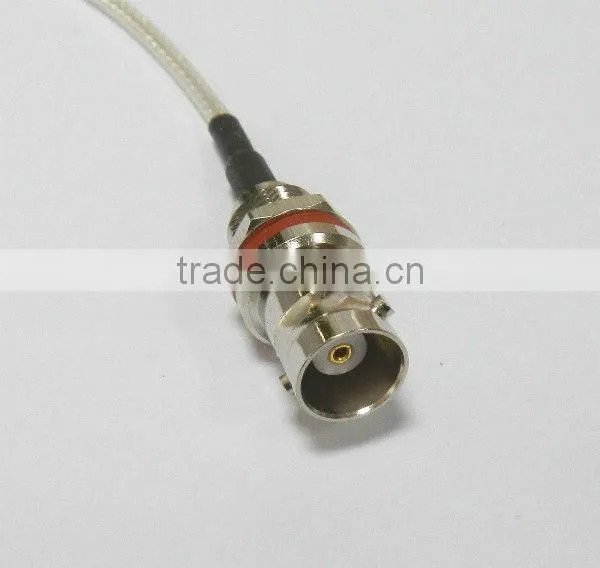

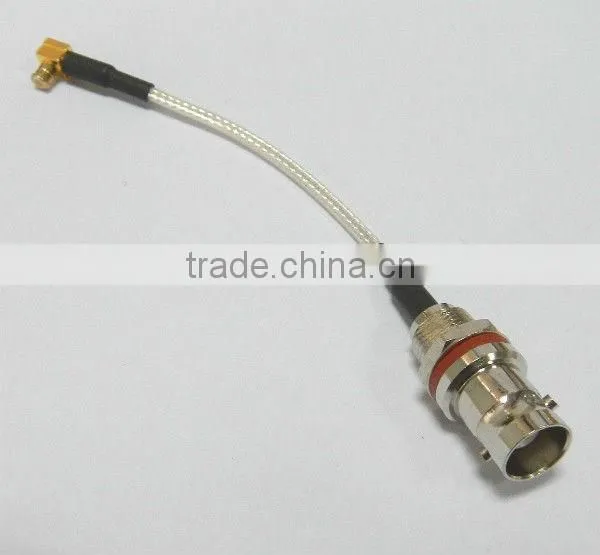

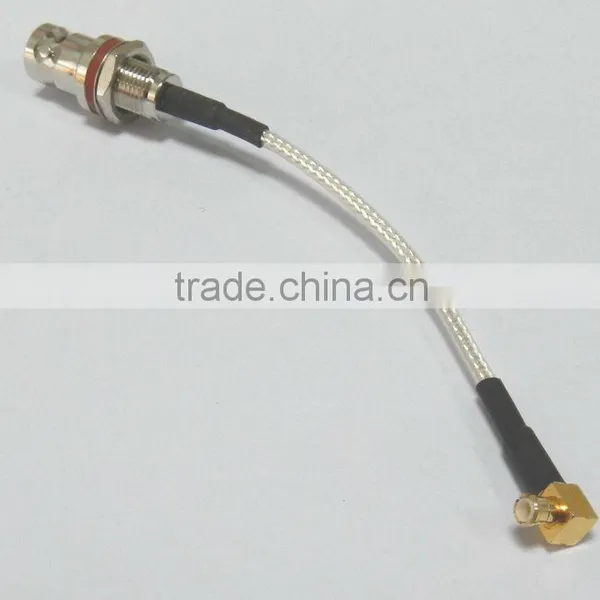

Help CenterCable Assembly, BNC Female, Bulkhead to MCX Male, RG316 Cable
Related Products
-
Cable Assembly SMA Female With RG316NegotiableMOQ: 10 Pieces -
N Female Bulkhead to MMCX Male With RG316, Pigtail, Cable AssemblyNegotiableMOQ: 10 Pieces
-
Cable Assembly With Sma ConnectorNegotiableMOQ: 10 Pieces
-
rf Connector Pigtail CableNegotiableMOQ: 10 Pieces
-
Din Male Connector Pigtail CableNegotiableMOQ: 10 Pieces
According to customer demand for different types of cable assembly design customized products, so the quality of satisfaction with the Service class.
Our company produces the cable packages are for the cable of line for the GSM, PCN and every communication system between the cabinet of machine and the cabinet of machine, between the antenna and the trunk cable, between the trunk cable and the cabinet of machine. Model of cable package, the variety is various. User may be according to the need, choice not of the came kind pattern connector of different model and diffevent the cable of length and model buy the cable package. May reduce the user himself load the cost to receive cable, guaranteed the usage mass.
RG316
Construction Specification
|
Material |
Diameter(mm) |
1.Inner Conductor |
Silver Plated Copper Clad Steel |
7*0.17 |
2.Dielecric |
PTFE |
1.52 |
3.Outer Conductor |
Silver Plated Copper Braid |
1.95 |
4.Jacket |
FEP |
2.50 |
Electrical Characteristics
Capacitance (pF/m) |
96.45 |
Impedance (ohm) |
50 |
Velocity (%) |
70 |
Bending Radius(mm) |
13 |
Max.Oper.Voltage (VMS) |
1200 |
Max.Oper.Frequency (MHz) |
3000 |
Operating Temp(°C) |
-55 to 200 |
Attenuation(Typical)
Frequency(MHz) |
Attenuation (>dB/100m) |
100 |
26.2 |
400 |
53.1 |
1000 |
85.6 |
3000 |
153.2 |
About Us:
According to the national and professional standards(GB&JS), we produce all kinds of RF coaxial connector, assembly of antenna, cable-package, audio and video connector, big specification connector of feeder line.
All kinds of adapter, impedance converter, fixed attenuator, termination loading, arrester.
All kinds of RF coaxial cable—SYV, SFF, RG, semi-rigid, etc.
RF coaxial connector designed for various major projects.
This is our website:
PS:If you are interesting in any of our products, please contact with me, I will provide you with a reasonable quotation. we also can send you several samples for testing.
