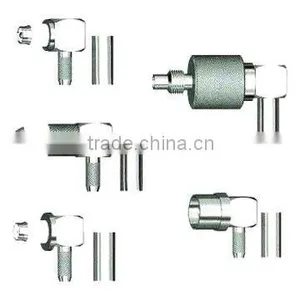

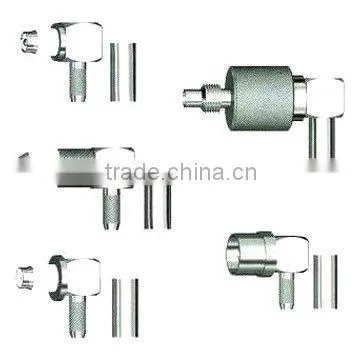

Connectors for Flexible Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Specifications
Specifications:1) Temperature range: -65 - +165°C
2) Impedance: 50Ω
3) Frequency range
Specifications:
1) Temperature range: -65 - +165°C
2) Impedance: 50Ω
3) Frequency range: DC -3GHz
4) Working voltage: 170V max
5) Withstand voltage: 500V rms
6) Contact resistance:
a) Center contact: ≤3mΩ
b) Outer contact: ≤2mΩ
7) Insulation resistance: ≥1,000mΩ
8) VSWR:
a) Straight: ≤1.15
b) Right angle: ≤1.25
9) Durability (mating): ≥500 times
