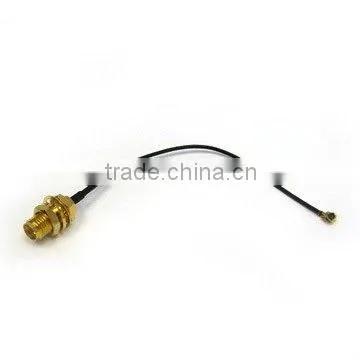

SMA Female to IPX With 1.13 Cable RF Connector ,coaxial Connector ,pigtail ,jumper
US$ 1 - 1.2
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
jinchengnuo
Model Number:
SMA-C-KY1.0(1.13 Cable)IPEX
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen shanghgai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
jinchengnuo
Model Number
SMA-C-KY1.0(1.13 Cable)IPEX
Application
RF
Specifications
Top quality with reasonable pricefast and safe delivery for door to door
Accept Small trial orders and wholesale
Specifications:
1) Temperature range: -55+165°C (PE cable: -40 - 85°C)
2)Vibration:98m int S
3)Impedance: 50Ω
4) Frequency range: DC - 12.4GHz(semi-rigled cable DC-18GHz)
5) Working voltage: 335V r.m.s
6)Withstand voltage: 1,000V rms
7) Contact resistance: a) Center contact: ≤3mΩ b) Outer contact: ≤2.5mΩ
8 )Insulation resistance: ≥5,000MΩ
9) VSWR:
a) Straight: ≤1.10+0.02f
b) Right angle: ≤1.07+0.018f
10)Durability (mating): ≥500 times
Applicable Standards:
1) CECC 22110
2) IEC-60169-15
3) MIL-C-39012
