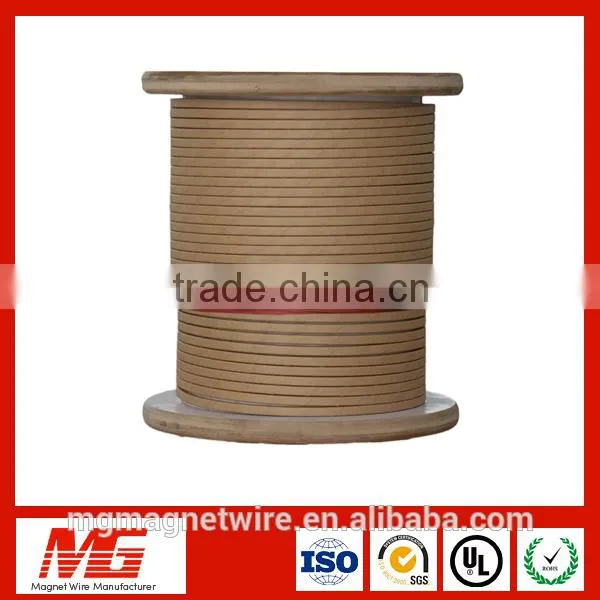

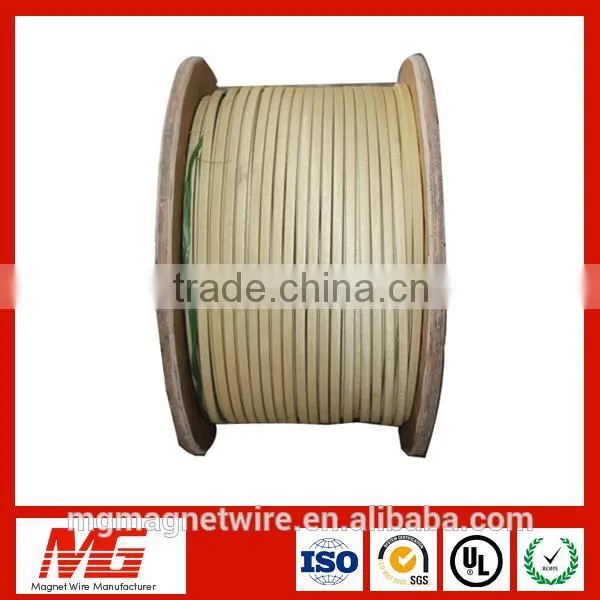

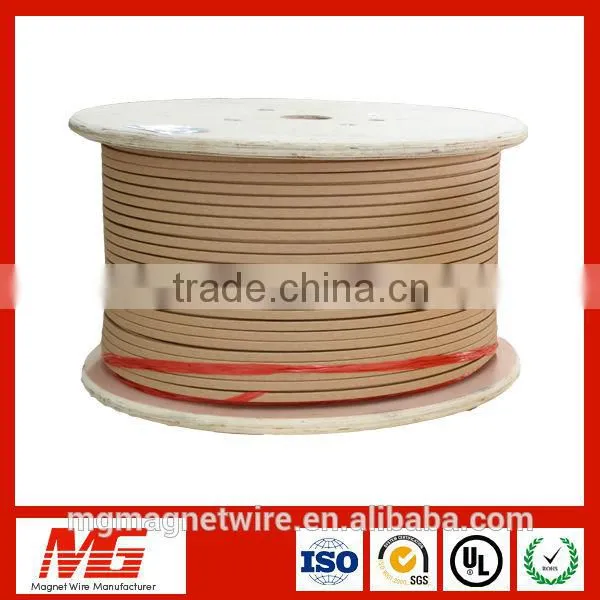

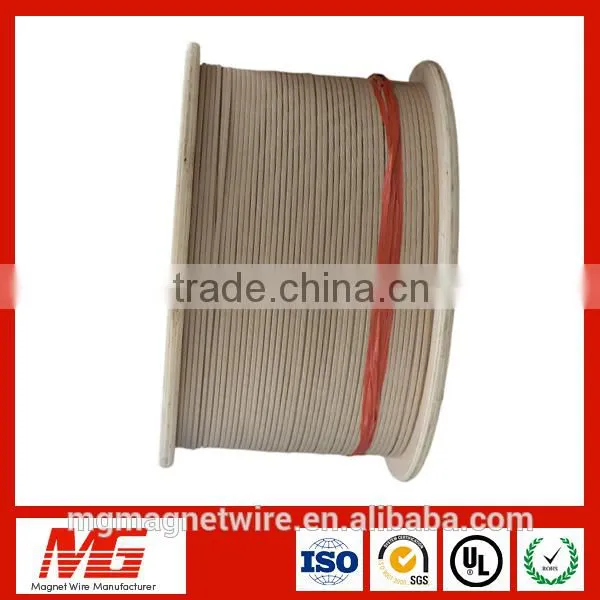

paper covered wire
1. Features of Kraft paper covered wire
a) High cut through
b) Excellent electricity performance
c) Excellent heat shock, adherence and flexibility
d) Excellent resistance to abrasion and solvent
2. Adwantages of our product
♦ Square Wire are available
♦ Varieties of wires,Stable quality
♦ Timely, continuous after-sales service
♦ Professional Tech and sales Work Team
♦ Safe and variety packing terms are available
♦ Double or Three Type Insultaions covered wires are available
♦ NEMA/IEC/JIS/GB and any Local Standards base on requirements
3. Reference parameter as follows
Name |
Paper Covered Wire |
|||
Model |
Q(Z/Y)LB-2/180 |
|||
Diameter |
4mm*15mm |
|||
Standard |
GB/T7673.3-2008 |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
Uniform, no missing layer, no wrinkling and cracking |
Ok |
|
Bare Conductor |
a |
mm |
±0.05 |
3.99 |
b |
mm |
±0.10 |
14.98 |
|
Thickness of insulation film |
mm |
0.405----0.45 ----0.50 |
0.43 |
|
resistance |
Ω/m |
≤0.02785 |
0.02773 |
|
Elongation |
|
>=17% |
24% |
|
Wrapped overlapped |
|
≥2 |
2 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
||
HENAN MG MAGNET WIRE.,LTD. is a professional supplier of magnet wires and electrical materials. Following is a brief introduction about the production process of enameled wire:
Discharge line -> Extruded &drawing -> Cleaning -> Painted -> Toasted & Cooled -> Spooling -> Testing.
We will try our best to send the paper covered wire to your city as soon as possible. Carton and wooden box will be used as double protection to protect the product from wear and tear during transport.
|
Our Company’s annual production is about 8,000 tons.
Our Company covers almost 100,000 square meters, including plant area of 80,000 square meters.
we have many kinds of products ,such as enameled aluminum wire, enameled copper wire, paper covered magnet wire, fiber glass covered magnet wire and so on.
We produce the thermal class of paper covered wire from 105 Centigrade.

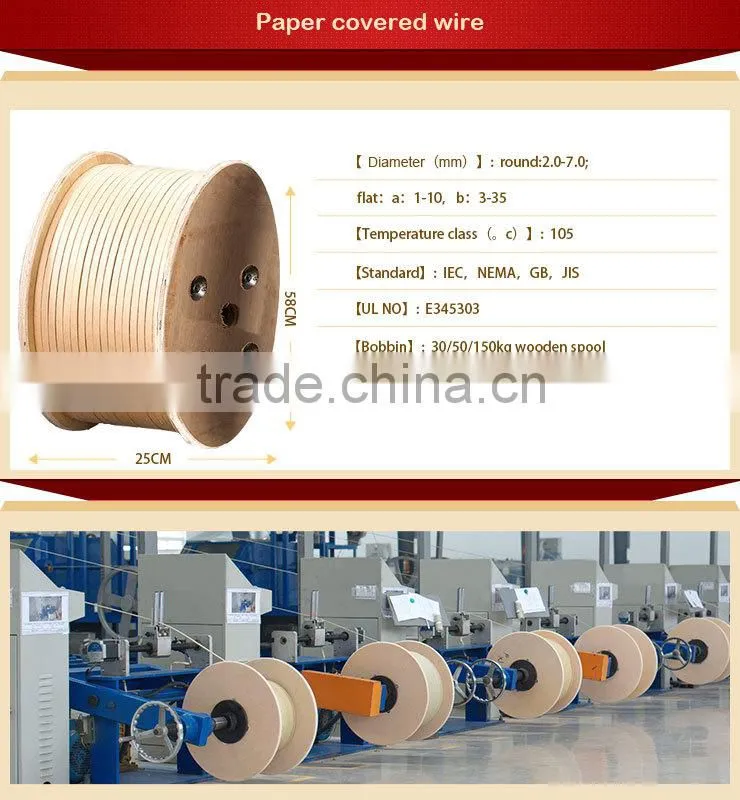

Gauge of paper covered wire:paper covered round wire: 2.0mm-7.0mm paper covered flat wire: a: 1-10mm, b: 3-35mm
An experienced and well mannered sales and marketing team is committed to bringing you 100% customer satisfaction. In order to succeed in the rapidly changing enameled magnet wire and winding magnet wire market, our company has instituted a development policy that emphasizes "Serving the customer, improving products, sureness and steadiness,providing best service,devotion and dedication".Please feel free to contact us at any time.
