Specifications

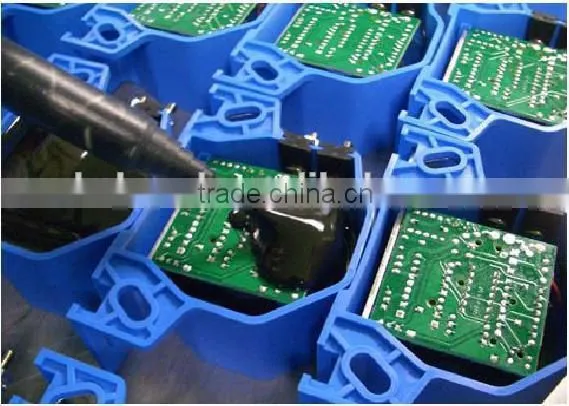

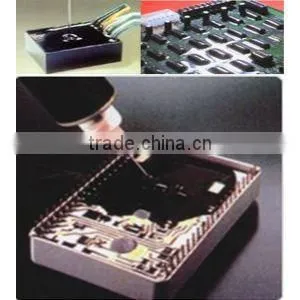

a kind of Epoxy adhesive with double component,perfect for potting, encapsulating and bonding transformer, switch and so on
Product Description

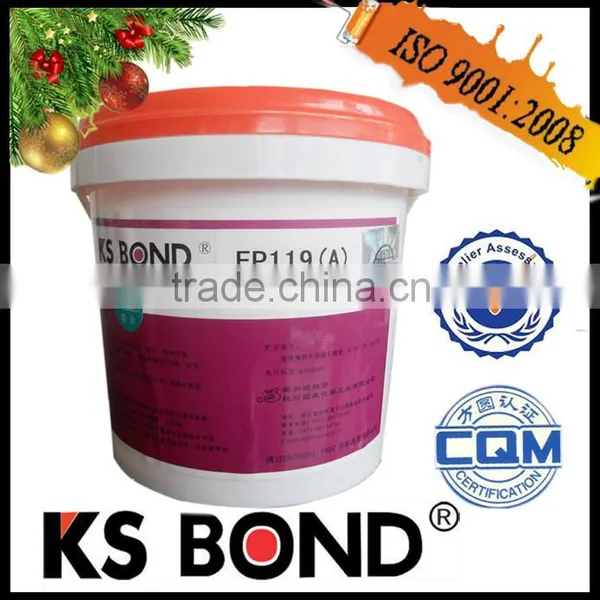

KSBOND® EP119 is a kind of Epoxy adhesive with double component and cure at medium temperature, perfect for potting, encapsulating and bonding transformer, switch, various sensor, electric, electronic component, etc; especially for PVC materials.
Properties:
item |
EP119A |
EP119B |
Appearance |
Black viscous liquid |
yellow liquid |
Component |
Epoxy resin |
Modified amin |
Viscosity(mpa.s/25℃ ) |
10000-40000 |
5-100 |
Solid content |
100 |
100 |
Mix ratio (weight) |
4 |
1 |
Work time |
>100minutes(100g) |
|
hardness(shore D) |
>78 |
|
volume resistivity (25℃) |
>1013Ω.cm |
|
Surface resistivity (25℃) |
>1013Ω |
|
Total curing time |
25℃*7days |
|
Total curing time |
50℃*8 hours |
|
Directions for use:
- 1. Clean the surfaces to be bonded firstly.
- 2. Mix ratio by weight :part A: part B=4:1. Stir evenly and use it up in work time.
Caution:
1. If there is the stratification in EP119A, it’s a normal phenomenon. Stir it before using.
2. Don’t put the tool which touched A into the B packing. Or it will make the A useless. And vice versa.
3. Stir evenly and use it up in work time.
4. Pay attention to the temperature, the higher temperature make the less working time.
5. Pay attention to the mixing quantity, the more quantity make the less working time.
