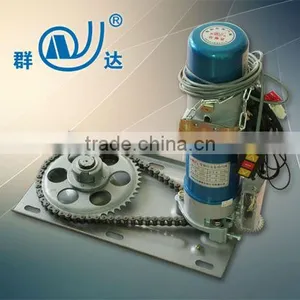

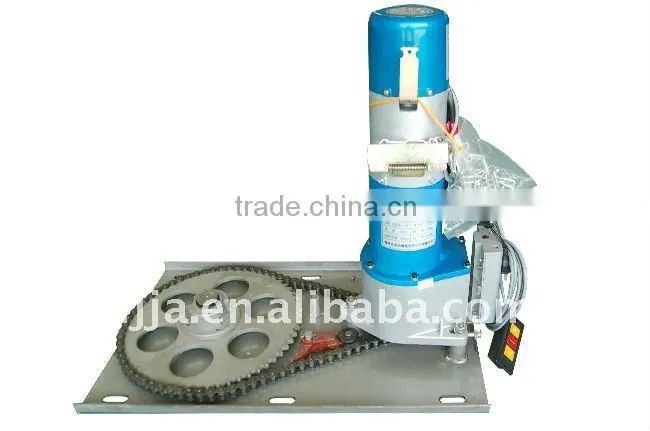

Garage door motor (Garage door opener) JM800-1P
The details of model and specification are as the following,
MODEL NO |
Max upgrade height(M) | Max upgrade weight(Kg) | Power (W) | Current Rating (A) | Output Torque (N.m) | rotation (r/min) | CHAIN NO |
| 220V 50HZ | |||||||
| JM3OO-1P | 6.5 | 300 | 250 | 3.3 | 168 | 6.2 | 10A |
| JM500-1P | 6.5 | 500 | 250 | 3.9 | 343 | 6.2 | 10A |
| JM600-1P | 6.5 | 600 | 370 | 3.9 | 412 | 6.2 | 10A |
| JM800-1P | 7 | 800 | 370 | 4.5 | 607 | 3.4 | 10A |
| JM1000-1P | 7 | 1000 | 400 | 4.5 | 1102 | 3.2 | 10A |
| 380V 50HZ | |||||||
| JM1000-3P | 8 | 1000 | 400 | 2.3 | 1102 | 6.5 | 12A |
| JM1300-3P | 8 | 1300 | 600 | 3 | 1372 | 6.5 | 12A |
| JM1500-3P | 8 | 1500 | 600 | 3.2 | 1610 | 5.7 | 12A |
| JM2000-3P | 11.5 | 2000 | 750 | 3.9 | 2450 | 3.6 | 16A |
Working environment and conditions:
1) Air temperature change as well as season.
2) Relative humidity:90%(25°C).
3) Voltage and frequency is in line with the product nameplate.
4) Short hour working system, continuous operation not exceeding 5 mins..
Main technology parameter:
max lifting door weight: 800kg
max lifting height: 7 m
rated power: 370w
rated current: 4.5A
output torque: 607N.m
output turn speed:3.4 r/min
chain number:10 A
weight of host motor:22 kg
Main features of JM-800 rolling door motor:
1) Shell : Aluminium alloy , solid and lingt but durable and easy to install.
2) Gear : High-quality alloy steel and special technical treatment to guarantee the strong hoist.
3) Brake structure: special device mechanical brakes, power cut off in an instant the brakes, to ensure absolute safety brake.
4) Limit System: Correct control , easy operation , and big control range.
5) Transmission System : High accuracy, smooth running , and low noise.
6) Anti-dropping device : Preventing accidental injury and ensure safety.
Notice: Your prompt inquiry after the Above Technical Parameters will be highly appreciated.Thanks.
"Pursuing quality,permanent and continuous service" is our motto. With the positive attitude of keeping-improving and the spirit of striving,exploring and being responsible,we sincerely hope to receive your detailed inquiries and look forward having the chance to establish long-term,friendly,mutual reliance business relationship with you in the near future.
-------Zhangzhou JinAn Electric & Machine Co.,Ltd
Rolling door motor are suits for shop doors,cinema doors,garage doors and other aluminum lock gates.
