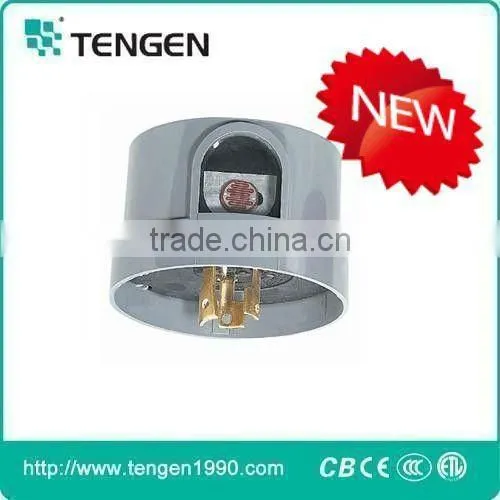

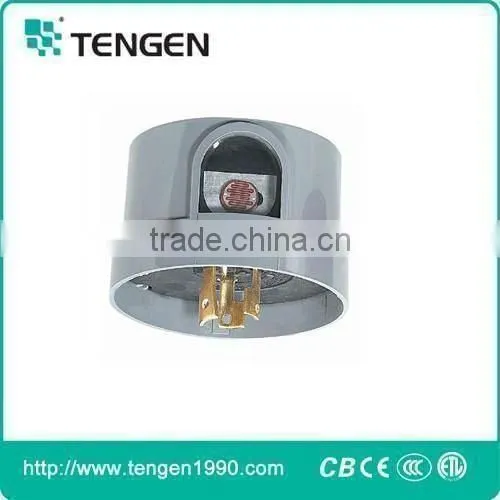

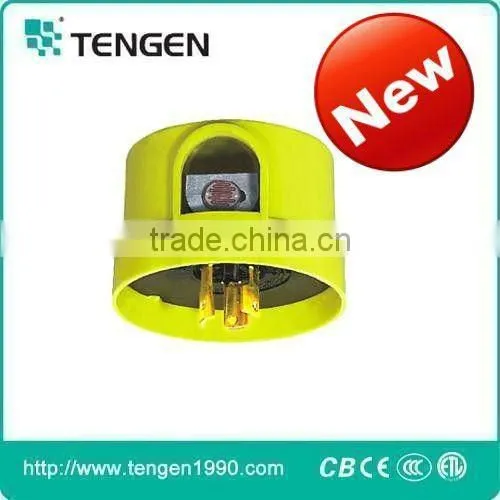

Electromagnetic Outdoor Lighting Controller /photo-controller

Name: Electromagnetic Outdoor Lighting Controller /photo-controller
Brand: Tengen or OEM
SKU: 115627751

US$ 1.1 - 1.5 MOQ: 400 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Tengen or OEM

Model Number:

TG-BF/R

Tengen Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai / Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Tengen or OEM

Model Number TG-BF/R

Max. Current 10A

Max. Voltage 110V/120V/220V/240V/360V/380V

Photocell / outdoor lighting controller detail information as following:

1. CE and ISO approved
2. Energy-saving and control auotomatic by Sunshine
3.Long life time and Reliable quality

· Meet stringent utility standards for street& highway lighting. · Delayed response prevents false switching due to light from vehicles, lightning, etc. · Longer life extends the maintenance cycle for photocontrols mounted in difficult locations. · Positive electronic switching provides quick made/break of the load relay eliminating relay chatter · Regulated voltage and silicon photocell maintain accurate turn on /off points of the life of the control · Low power consumption through a unique regulator circuit. Resulting low internal temperature rise contributes to long life.l For safety reasons, the RYG photocontrols are designed to fail in the ON position
Specifications
· Nominal Voltages	120, 220, 240, 277, 120-277,480 VAC, 50/60 Hz.
· Voltage Range	Nominal Voltage ± 15%
· Maximum Load	1000 watt tungsten, 1800 VA. HID
· Guaranteed operation	5000 operations minimum (13.7 years)
· Turn-On/Turn-Off	<1:5(Thermal ) <1:4(Electronic )
· Delay Time(Instant on)	30 to 120 seconds
· Operating temperature	-40C to +70C(-40F to +158F)
· Surge protection (MOV)	90J, 180J, 320J (optional.)
· Dielectric strength	5000 volts between current carrying parts and metal surfaces
· Average Power consumption	<1 watts
· Photocell	Cadmium sulphide (Cds),or phototransistor(Hermetically sealed Cds
· Materials	Cover: Polypropylene UV stabilized,High impact, flammability resistance Base: Heat resistant phenolic with moisture resistant gasket Contacts: Hard brass
