Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > Multi Drilling Machine DS703A

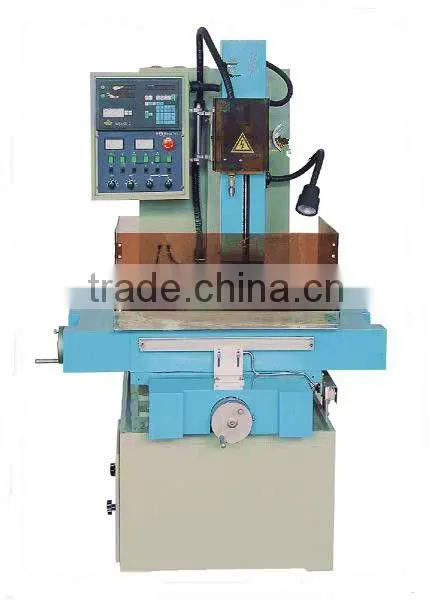

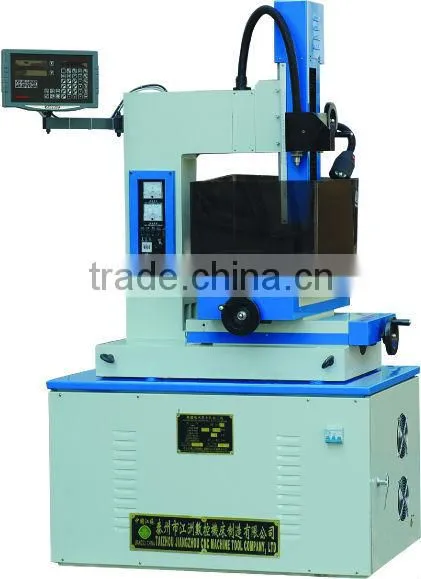

Multi Drilling Machine DS703A
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
CNC or Not
Normal
Place of Origin
Jiangsu, China
Brand Name
JZ
Model Number
DS703A
Voltage
380V/50Hz
Power(W)
3.5kW
Dimension(L*W*H)
1070 710 1970
Weight
600
Certification
TM ISO9001:2008
Specifications
Deep Hole Drilling Machine DS703AX Y axis DRO
High precision easy operate
Micro Hole dia 0.3mm
TM ISO9001:2008
| Type | DS703A |
| Worktable Size | 400×300 |
| Worktable Travel | 1070×710×1970 |
| Spindle travel | 200 |
| Servo travel | 330 |
| Electrode diameter | Φ 0.3~ Φ 3 |
| ing current | 22A |
| Power input | 380V/50Hz 3.5kW |
| Machine Dimension | 1070×710×1970 |
| Machine Weight | 600 |
This machine is mainly used for stainless steel, hardened steel, carbide, copper, aluminum and the deep hole processing of other conductive materials.
Such as moly wire of EDM cutting workpiece, fiber spinneret, spinning holes of spinning plate,
group holes of filter board and sieve plate, cooloing holes of motor blades and cylinder body, oil and gas channel hole of hydraulic and pneumatic valve.
Worktables’s X,Y axis is equipped with digital device.
Use pure water or tap water as the working fluid.
It can directly penetration process from inclined plane and curved plane.
