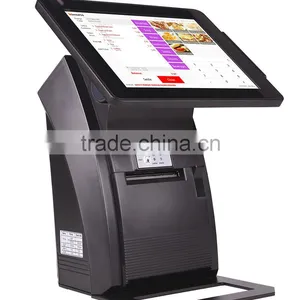

9.7" POS Touch Screen Machine All in One Retail Store Pos System ZQ-P1088mini

Name: 9.7" POS Touch Screen Machine All in One Retail Store Pos System ZQ-P1088mini
Brand: ZONERICH
SKU: 115676209

US$ 1 - 1,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guizhou, China

Brand Name:

ZONERICH

Model Number:

ZQ-P1088mini

Guangzhou Zonerich Business Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guizhou, China

Brand Name ZONERICH

Model Number ZQ-P1088mini

PRODUCT NAME: SMART POS SERIES

MODEL#: ZQ-P1088 mini

HIGHLIGHTS

OPTIONAL

- MSR/ Dallas key/RFID

SPECIFICATION

CPU	Intel Atom D2550 1.86GHZ
Memory	DDRIII 2GB
Storage	Mini SSD 32GB or 2.5’’ SATA 320GB
Graphics	Intel Graphics Media Accelerator 3650
Audio	ALC662 Intel Nm10
Operator Display	9.7’’, LED Back light, 1024×768 LVDS Projected Capacitive touch, USB
Customer Display (Three choose one)	LED: 10 Digit, DC5V, RS232, 2400BPS, Characters: 0…9 VFD: 220 Digit, DC5V, RS232, 9600BPS, ASCII code, Page 0 (PC437:USA,StandardEurope); Page 1 (Katakana); Page 2 (PC850:Multilingual); Page 3 (PC860:Portuguese); Page 4 (PC863:Canadian-French); Page 5 (PC865:Nordic); Page 6 (Slavonic); Page 7 (Russia); Page 12 (Greek); Page 16 (WPC1252); Page 19 (Pc858 Euro); PAGE36(PC862,Hebrew) LCD:* 2*20 Digit,DC5V, RS232, 9600BPS; ASCII code
Internet	Ethernet 10/100/1000M
Thermal Printer Model	80mm Thermal Printer, Automatic cutter, Max 170 mm/sec, Diameter Max.80 mm, GB2312, PC437, Katakana, PC850, PC860, PC863, PC865, WPC1253, Iran, WPC1256, PC737, WPC1250, WPC1252, PC866, PC852, PC858, WPC1257, WPC775, WPC1251, User define
Printer Port	USB and RS232
Card Reader (optional)	USB or PS/2, DC5V±5%,65mA(max)
External Port	1 RS232 serial interfaces, 1 VGA interface, 1 RJ45 Ethernet port, 4 USB interfaces, 1 DC24V input interface, 1 Cash Drawer Interface
Power Supply	DC24V,5A
Environment	Operating temperature and humidity: -10°C ~ 40°C, 20 ~ 80% RH Storage temperature and humidity: -20°C ~ 50°C, 20 ~ 90% RH
Dimension	250(L)X205(W)X 323(H)mm
