plate compactor

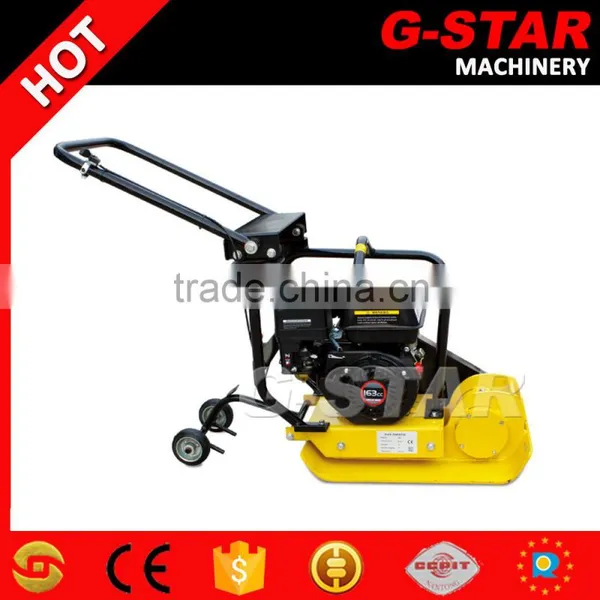

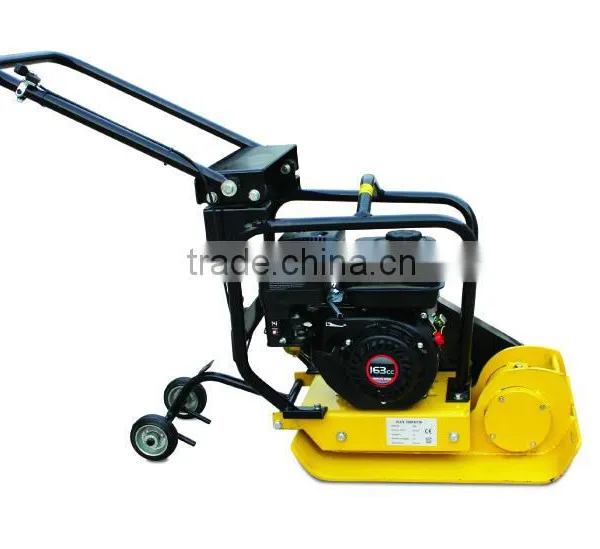

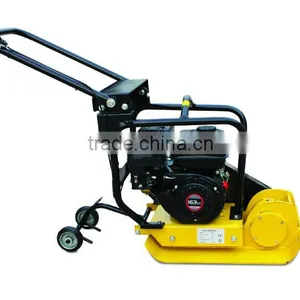

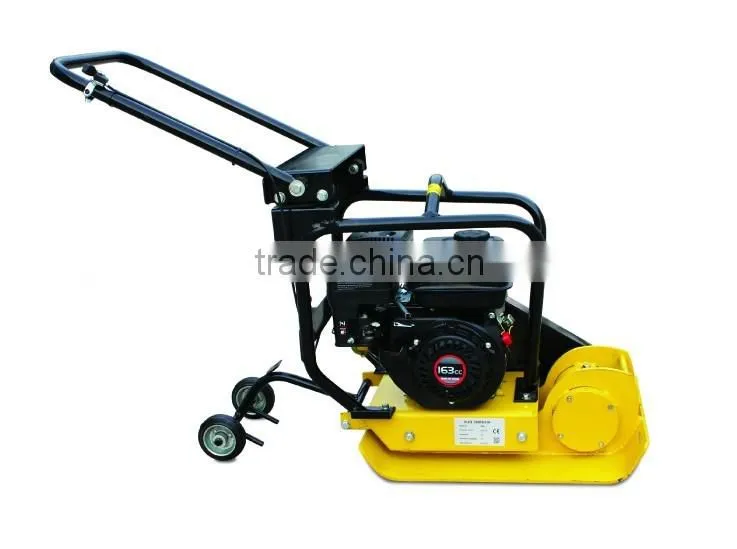

PB60 Petrol powered concrete plate compactor
Features:

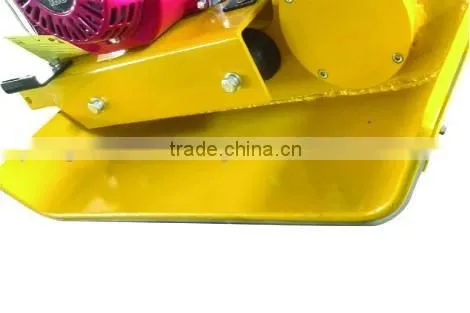

·Solid, high strength steel base plate with curved edges provides top performance.
·Robust design sealed belt cover for Clutch and Belt protection.
·Self cleaning open base plate minimizes dirt and rock build up.
·Anti vibration removable flip over handle for easy transportation.
·Built-in transport wheel for easy transportation around sites.
·Optional water tank for asphalt use.
| Product Name | Plate compactor |
| Model | PB60 |
| Gasoline Engine | Honda,Briggs & Stratton, Loncin |
| Rated Output | 5.5HP |
| Climb Ability | 0-25° |
| Vibration Frequency | 5900rpm |
| Max. centrifugal force | 12KN |
| Max Forward Speed | 15m/min |
| Compaction Depth | 300mm |
| Plate size | 50×37cm |
| Plate material | steel |
| Weight | 64kg |
| Packing size | 77*41*70cm |
| Loading capacity | 20GP-68pcs ; 40GP-142pcs |

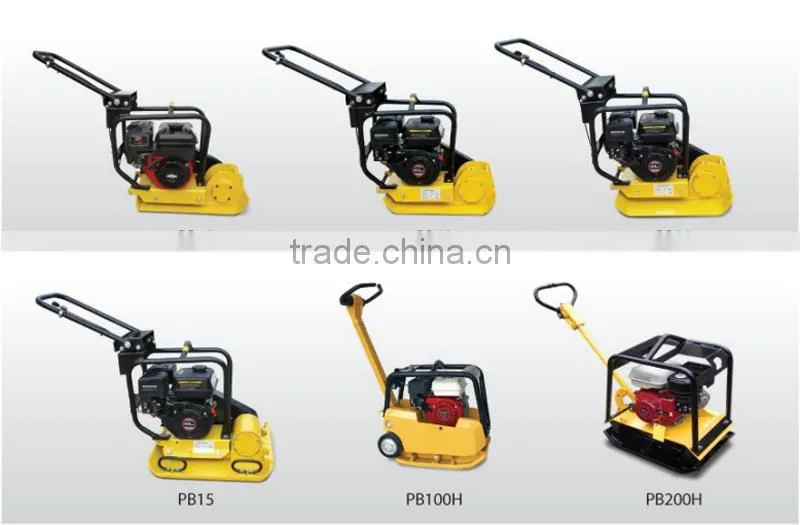

| Plate compactor Model | Plate size(mm) | Compaction Depth(mm) | Max Forward Speed | Climb Ability | Max. centrifugal force | Plate material | Weight | Packing size(cm) |
| PB50 | 500*300 | 300 | 15m/min | 0-25° | 12KN | Steel | 60kg | 73*40*70 |
| PB60 | 500*370 | 300 | 15m/min | 0-25° | 12KN | Steel | 64kg | 77*41*70 |
| PB80 | 500*500 | 400 | 24m/min | 0-25° | 15KN | Steel | 84kg | 76.5*57.5*70 |
| PB15 | 450*500 | 400 | 24m/min | 0-25° | 20KN | Cast iron | 97kg | 70.5*56.5*70 |
| PB100H | 450*600 | 450 | 24m/min | 0-25° | 25KN | Cast iron | 140kg | 111*54*115 |
| PB200H | 500*700 | 450 | 24m/min | 0-25° | 30KN | Cast iron | 152kg | 110*54*115 |
1.For our products,we have 12 months warranty.
2.Within 12 months ,if there is some accessory going wrong ,we will send you the accessory at once ,free of Charge or deliver the spare parts in next order.
3.No responsibillity for man-made destory.
4. If the buyer has any questions from our technical department, we can supply on-line service
Our company having over 10 years’ experience in production and sales of light construction machinery. Our products have been sold to more than 70 countries and areas.
The present leading series of products include Mini loader,Power trowel,Tamping rammer ,Concrete road cutter,Plate compactors ,Concrete vibrator and so on.
