new & hot sales APB002 ozonizer ozon/ozone equipment/ozone generator spare part
1.Ozone Concentrationsin water treatment
In water treatment, the solubility of ozone scope is 0.1mg / L ~ 10mg / L. The lower concentration could be for water disinfection and purification. And a high concentration could be as "ozone water disinfectant";
Tap water purification: International concentration level is 0.4PPM ( Mg/L), the treating time is 4 minute. The CT will be 1.6;
The dissolved ozone concentration 0.1-0.5Mg/L in water, to meet disinfection purposes within 5-10 minutes.
Ozone water disinfection and sterilization is rapid and occur in an instant. To kill the bacteria in 0.5-1.0 minute; Under the concentration of 4PPM (mg / L) to kill hepatitis B virus 100% in 1.0 minute.
Herbold reports: Under 20 °C conditions, the ozone concentration in water 0.43mg / L, can be 100% kill of E. coli, and under the 10 °C to kill all E. Coli at 0.36Mg/L only;
The ozone concentration 0.25-0.38Mg/L, kill all HAV in the several minute.
Mineral water: The solubility of ozone in the 0.4 ~ 0.5mg / L can meet the requirements of sterilization. The ozone dosage is 1.5 ~ 2.0mg /L.
Bottled water: Require the ozone dissolved in water 0.3-0.5mg/L; The ozone dosage is 2 grams per 1000 liters water. According to practical experience, the ozone gas concentrations higher than 8mg / L will be susceptible to meet this level
Category |
Dual Water |
Pure water |
Natural water |
Tap water |
Swimming pool |
Ozone dissolved in water |
0.1-0.3mg/L |
0.2-0.4mg/L |
0.4-0.6mg/L |
0.4mg/L |
0.2mg/L |
Ozone dosage |
1-2g/1000L |
2-3g/1000L |
3-5g/1000L |
3-5g/1000L |
1-2g/1000L |
2. Specification
2500mg/Hour APB002 Long life ozonizer / ozoniser / ozonator /corona ozone generator
Model: APB002
Voltage: 110V or 220V/50Hz
Power consumption: 150W
Ozone output: 2.5grams/H
Ozone module type: Porcelain Enamel type
Ozone module quantity: 2 PCS;
Feeding: dry Air Air flow: 8LPM Ozone gas concentration: 5.2mg/L at relative humidity: 50%
Ozone Outlet: 5*8mm
Air pump built inside
On/Off Switch
Handle With Timer
Net Weight: 5KGS
Unit size: 145*260*460*mm
Gross weight: 11.5KGS (two units in one carton)
Free accessories: 1 x Air dryer; silicon hose 10 meters; 1 x venturi 3/4"

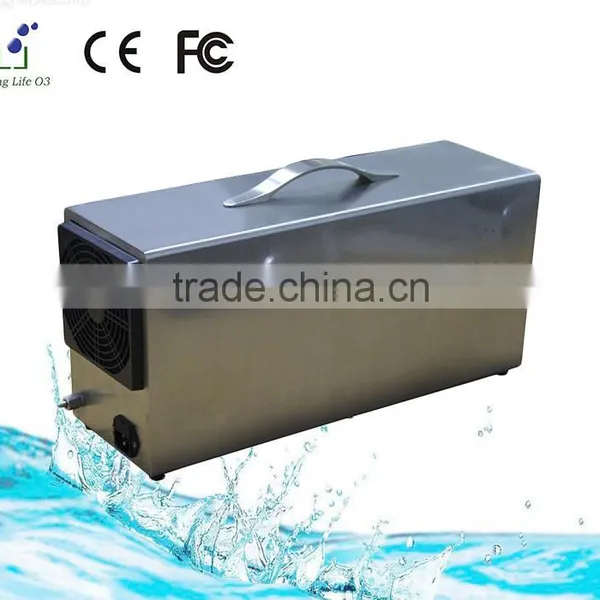

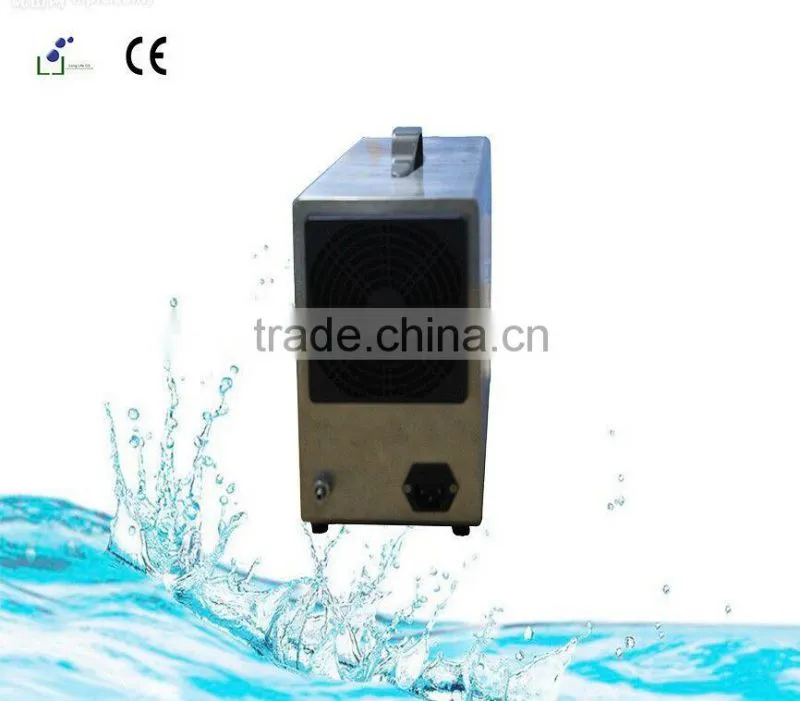

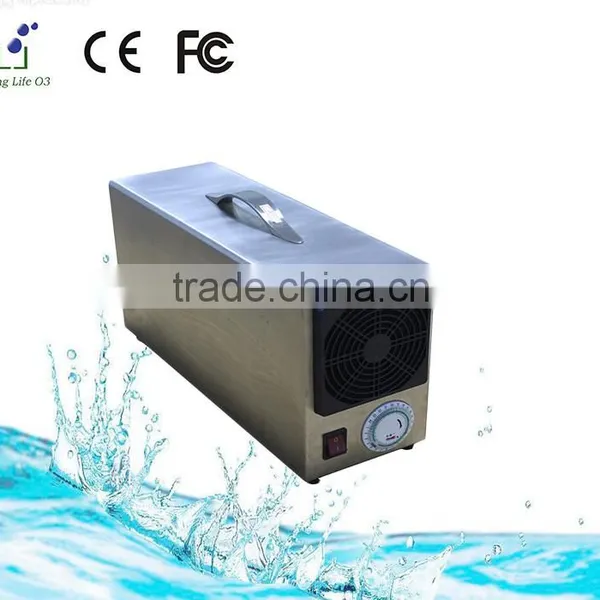

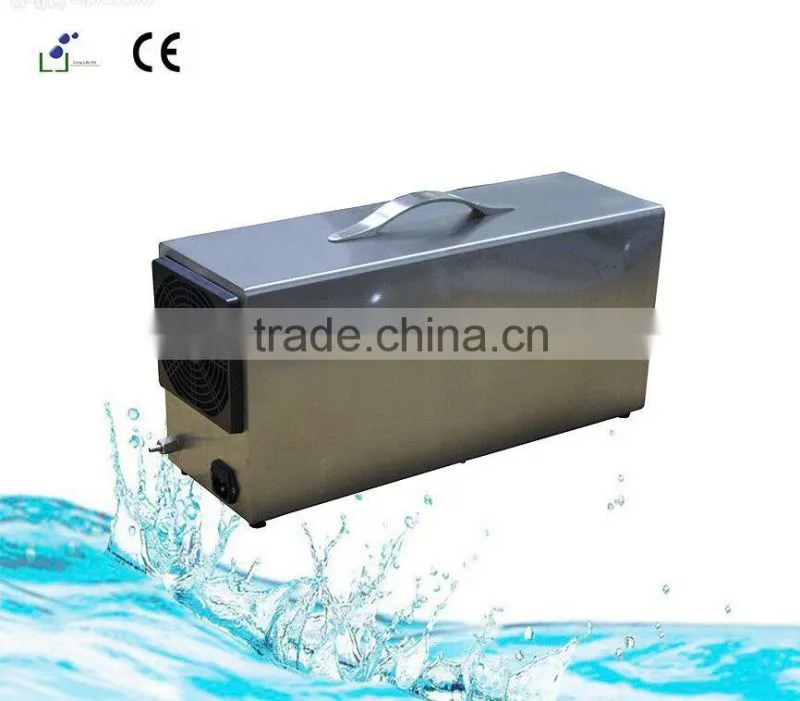

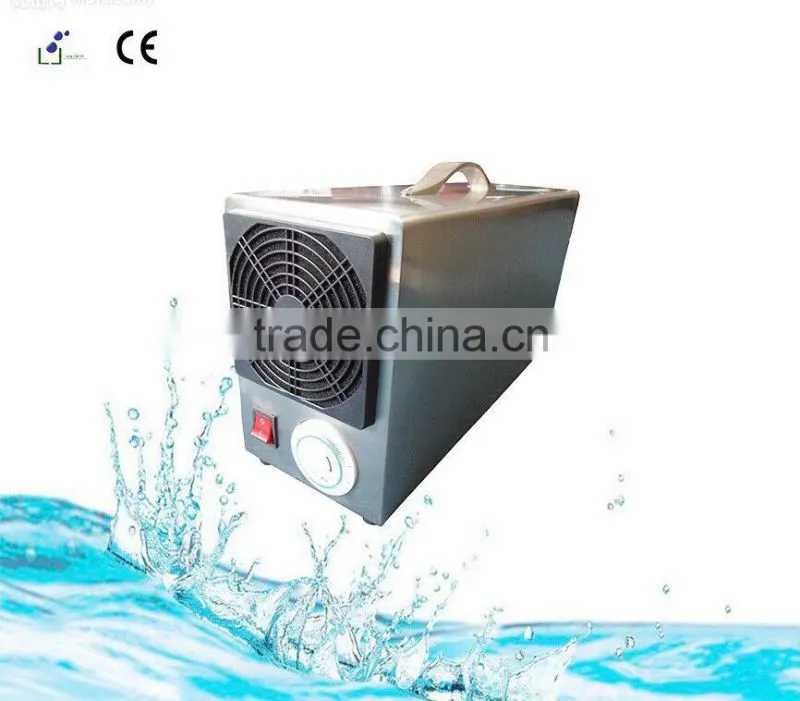

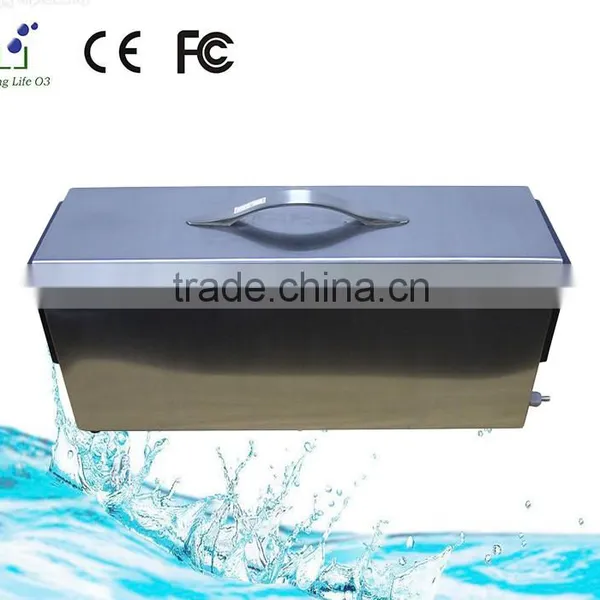

3. Product Pictures
4. Installation Diagram

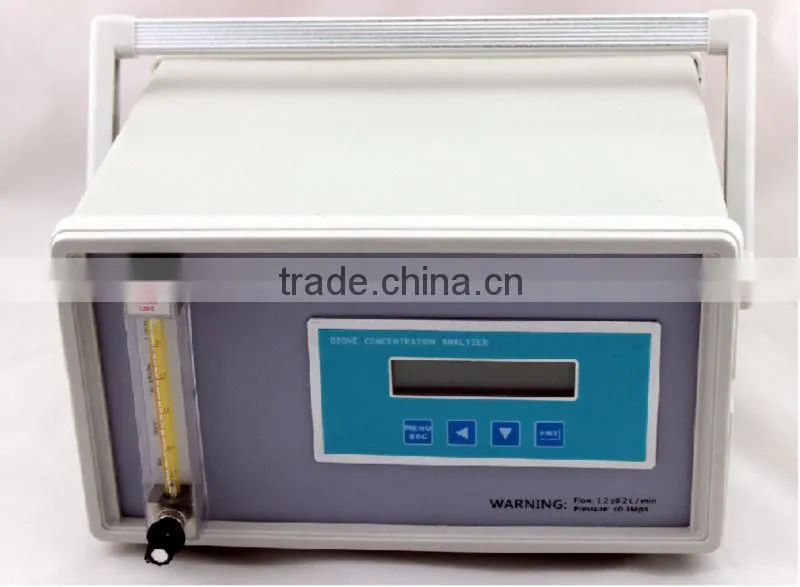

5. Ozone Analyzer
https://img13.fr-trading.com/product/60251165749-219024556/LF_UV600_high_accuracy_portable_ozone_ozone_gas_analyzer_ozone_monitor.html
6. Factory

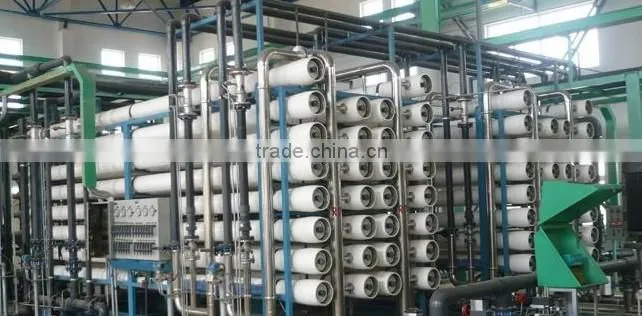

7. Application
8. Certificate
