Help CenterHigh Quality LR6 Size aa AM3 1.5V Battery for Flashlight
Related Products
-
Supply New Battery Super Power 1.5v Aaa Am4 LR03 Alkaline Battery BatteriesUS$ 0.06 - 0.07MOQ: 15000 Pieces -
Wholesale LR6 1.5v aa Lr6 Am3 Alkaline Battery With High QualityUS$ 0.07 - 0.08MOQ: 15000 Pieces
-
High Quality C/lr14 Um2 Batteries 1.5v Battery C/lr14 Batteries 1.5vUS$ 0.27 - 0.28MOQ: 5000 Pieces
-
China Factory Supply 1.5V LR6 aa Alkaline Battery for FlashlightUS$ 0.07 - 0.08MOQ: 15000 Pieces
-
Factory Customized High Quality 1.5v Alkaline Zn/Mno2 Battery LR03 Aaa BatteryUS$ 0.8 - 0.97MOQ: 1000 Dozens
FAQ
1. Your company is professional battery manufacturer ?
answer : yes,we are factory,we can do Alkaline battery ,Carbon battery,Button cell battery,
2. Can you provide OEM /ODM service to customers?
answer : Yes,we can Offer Free OEM service according to client requirement
3. How long your warranty of the battery?
answer : 12 month warranty
4. Do you have any Certificates?
answer : we have CE,ISO9001.ROSH,EMC,SGS certificates
5. Can you offer free sample?
answer : some product,we can offer free sample to our client
High Quality LR6 Size aa AM3 1.5V Battery for Flashlight
Specification of 1.5v LR6 AA Battery
| Model | LR6 / AM-3 / 5 # / AA |
| Voltage | 1.5v |
| Capacity | 1900mah(10Ω,1h/d) |
| Discharge Time | 360 min |
| Jacket | Foil Label |
| Weight | 22.5g |
| Packing list |
4/shrink,60 pcs/box,1200 pcs/carton,gross weight :18kg/carton 4/blister,40 pcs/box,720 pcs/carton,gross weight :13kg/carton |
| Shelf Life | 3 years after delivery under proper storage condition |
| Warranty | 18 Month |
| Payment Terms | By T/T,L/C,Western Union |
| Delivery Date |
Sample : 2-7 days Production of battery : 25-30 days |
| Shipping terms | By sea,air, |

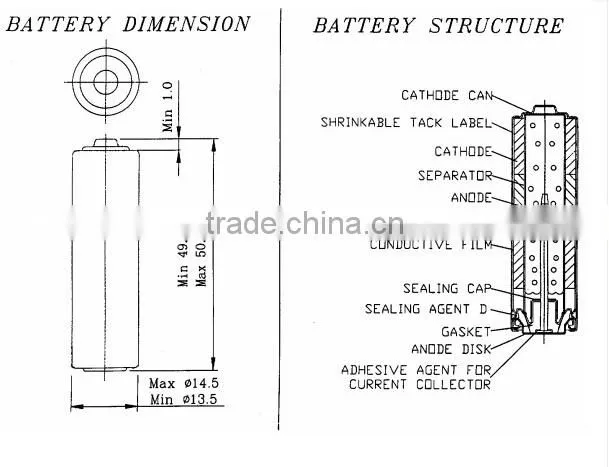

1. Battery Dimension and Structure
2.Scope
This specification defines the technical requirements for LR20 Alkaline battery
Cross Reference : IEC JIS CHINA ATC Other
LR6 AM3 NO.5 LR6 AA
3. Reference Document
IEC 60086 -1:2000 ---Primary batteries-Part 1:General
IEC 60086 -2:2000 ---Primary batteries-Part 2:Physical and Electrical Specification
GB/T 7112-1998 ---Alkaline Zinc-Manganese Dry batteries of LR03,LR6,LR14,LR20
4. Chemical System
Alkaline Zinc-Manganese Dioxide(KOH Electrolyte)
Mercury and cadmium are not added in battery
5. Electrical Characteristic
| / | Off-load Voltage | On-load Voltage | Short Circuit Current | Acceptance Standard |
| Initial within 30 days | 1.58v | 1.50v | 8.0A |
GB 2828 commonly I sampling AQL=0.4 |
| After 12 months | 1.55V | 1.45V | 7.0A |
** conditions : 3.9Ω±0.5% load resistance ,Measuring time 0.3 seconds,tempereture at 20±2°c,
the hairspring type ampere meter with ±0.5% accuracy(0.5 level) shall used
6. Service Time
(condition: test temp: 20±2°c,tested within 30 days after delivery)
| Discharge Condition | IEC standard | Average Minimum Discharge Time | |||
| Discharge Load | Daily Discharge Time | End Point Voltage | Initial Within 30 days | After 12 month at 20±2°c | |
| 43Ω | 4h | 0.9v | 60h | 82h | 77h |
| 3.9Ω | 1h | 0.8v | 4h | 6.5h | 6h |
| 10Ω | 1h | 0.9v | 11h | 16.8h | 15.5h |
| 1.8Ω | 15 sec/min | 0.9v | 320 cycles | 530 cycles | 470 cycles |
| 10Ω | 24h | 0.9v | / | 17.5h | 16.5h |
7.Electrolyte Leakage Proof Characteristics
| Item | Condition | Period | Characteristics | Acceptance standard |
| Over-discharge leakage test | 10Ω conditinuous discharge at temp 20±2°c,Relative Humidity:50±20% RH | 48 hours | there shall be no deformation exceeding the specified dimension,no leakage recognized by human eye |
N=9 Ac=0 Re=1 |
| High temp,storage leakage test |
At temp 45±2°c, Relative Humidity: less than 65% RH |
90 days |
N=40 Ac=1 Re=2 |
|
|
At temp 60±2°c, Relative humidity : 90±5% RH |
20 days |
8. Safety Characteristics
| Item | Condition | Period | Characteristics | Acceptance standard |
| Short Circuit Test characteristics | Temp : 20±2°c | 24 hours | there shall be no explosion of battery |
N=5 Ac=0 Re=1 |
| Abusive characteristics |
at temp 20±2°c, short circuit 4 pieces of battery in series, one of the 4 battery has to be connected with its polarity reversed |
24 hours |
N=20 Ac=0 Re=1 |
9. Discharge Curves
(a) 10Ω-24h/d , 10Ω-1h/d
(b) 43Ω-4h/d ,3.9Ω-1h/d
10. Expiry Period Marking
a. Production date and shelf life 5 years marked on the finished cell
b. For private,can mark according to customer's requirement
Advantage
* Super Heavy Duty Battery
* Long discharge time
* More Environmental
* More Material Of Battery Jacket (PVC / Metal / Alumimum)
* CE ROSH SGS UL IOS9001:2000 Certification
* More Kind Of Package
* 5 Month Warranty
Our Advantage :
1. We are Factory: Can Provide All Model and Capacity dry battery
2. We can offer best Service : OEM Service,Long Time Warranty
3. We Have 18 Year International Trade Experience
4. We Have CE,ROSH,ISO9001:2000,UL,SGS
5. Short Delivery date :10-25 Day
6. Our Products Have Best Quality With Competitive Price
Cautions for use
(1) Do not charge the battery, which may lead to battery leakage or dangerous.
(2) Should pay attention to the battery polarity to prevent incorrect installation.
(3) Do not short-circuit the battery, heat, fire or attempt to disassemble.
(4) Do not mix old and new batteries.
Application
The battery are widely use in Electric toys, tape recorders, remote control,, pagers, test instruments, radios, hand-held walkie-talkie ect
A professional battery manufacturer
Shenzhen Eastar Battery Co., Ltd was set up as a manufacturer of various batteries in 1997. Our main products include dry batteries ( carbon & alkaline), lead-acid batteries(General batteries, Auto batteries), Ni-MH/Ni-CD batteries and packs, Lithium batteries ( Li-ion, Li-PO). With six manufacturing facilities of around 200,000 square meters, and a team of highly qualified staff, Eastar grew up as a professional battery group in Southern China.
Quality is our life
As a battery manufacturing group, we have separate factory located in Guangzhou, Shenzhen and Xingfeng for different battery types. We understand well on the importance of the quality, so we invested much on the advanced production facilities and testing equipments. We have a powerful R&D and skillful worker group. Based on ISO9001, we built up a complete quality control system. We always keep ourselves working ahead on technology and quality control in battery field.
The best services to you
We built up our sales team with 20 saleswomen/ salesmen in down town Shenzhen. Our team is a experienced sales team, Our motto is: EVERY TIME THE BEST SERVICES TO EVERY CUSTOMER. We are good at both ODM orders and OEM projects. If you are in battery business, come to us, I believe you will find that you are working with the right partner: Shenzhen Eastar Battery Co., Ltd.
