Specifications
1.Heat exchanger tube rolling round heater2.carbon steel/stainless steel is ok
3.delivery time 30days
4.sample ok
Datiled Introduction:

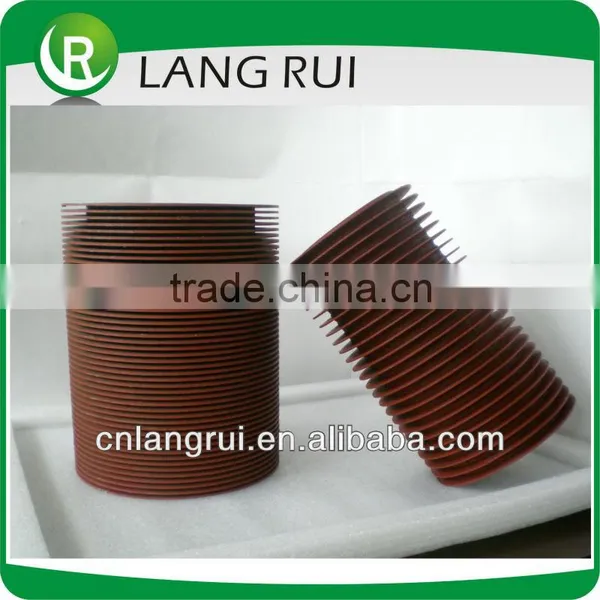

1. Heat exchanger tube rolling round heater
2. Production range
Bare pipe (OD):25mm-165mm
Bare pipe length (L):1-12m
Fin spacing (t):5-30mm
Fin thick (Sn):0.6-3.0mm
Fin height (hf): general no more than the radius of bare pipe(5-30mm)
3. High technology, Heat exchanger tube rolling round heater ,heat transfer area is 8 times than the light tube, extruded heat exchanger parts, lower cost, reasonable price, much more advanced than the other heat exchangers finned tube.
4. Our main products is single/bimetallic metal fin tube for heaters with carbon steel/stainless steel/copper/aluminum welded fin, and the type of tubes are welded or seamless.
5. Different kinds of Heat exchanger tube rolling round heater can be developed and designed according to your requirements, finning type including High frequency welding / Extruded / L-foot / H type / Embedded etc.
6. Weld able material: carbon steel, corrosion resistant steel, stainless steel, alloy steel and aluminum&copper etc.
7. Applied range of the carbon fin / stainless steel fin tube products: Bolier economizer/ Power plant waste bolier/Petrochemical engineering and varioue types pof heat exchangers.
8. Top quality, competitive price, fast delivery, excellent service
MORE ENERGY-EFFICIENT & ENVIRONMENTAL!
WE ARE TRUSTWORTHY!
Extruded Type:
High Frequency Welded Type:
High frequency welding finning machine
Wooden Package or Iron Frame Package:
Certificates:
Parameters Range:
Heat exchanger tube rolling round heater | |||
Name |
symbols |
Unit |
Value |
Steel pipe diameter |
d |
mm |
25-165 |
Steel pipe wall |
S |
mm |
2-8 |
Steel tube length |
L |
m |
1-12 |
Fin thickness |
δ |
mm |
0.6-3.0 |
Fin height |
h |
mm |
5-30 |
Fins spacing (pitch) |
t |
mm |
5-30 |
Steel tube material |
Carbon steel, alloy steel, stainless steel |
||
Fin material |
Carbon steel, alloy steel, stainless steel |
||
Fin form |
Parallel fin |
||
