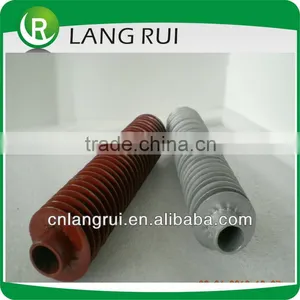

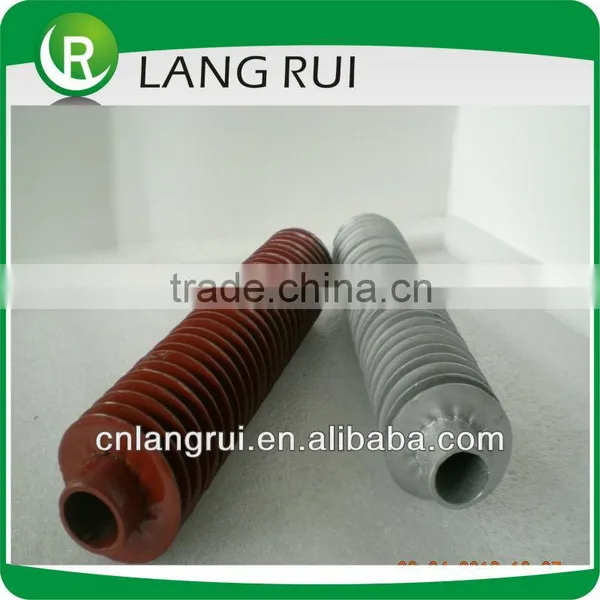

Help CenterStainless Steel Round Welding Fin Heater
Related Products
-
The Heater Transfer Tube PipeUS$ 8 - 20MOQ: 500 Meters -
Radiator Pipe Tube Pipe Fins HeaterUS$ 8 - 20MOQ: 500 Meters
-
High Quality Pipe Tube Heater Fins CoolingUS$ 8 - 18MOQ: 500 Meters
-
Water to Air Fin Heat Exchanger Steel WeldingUS$ 8 - 18MOQ: 500 Meters
-
Pipe Fins Cooling Heat Exchanger PriceUS$ 8 - 20MOQ: 500 Meters
Specifications
1.Stainless steel round welding fin heater2.carbon steel/stainless steel is ok
3.delivery time 30days
4.sample ok
HIGH QUALITY FIN TUBE ----
FLY TO YOUR LIFE !!
Datiled Introduction:
1. Stainless steel round welding fin heater
2. Production range
Bare pipe (OD):25mm-165mm
Bare pipe length (L):1-12m
Fin spacing (t):5-30mm
Fin thick (Sn):0.6-3.0mm
Fin height (hf): general no more than the radius of bare pipe(5-30mm)
3. High technology, Stainless steel round welding fin heater ,heat transfer area is 8 times than the light tube, extruded heat exchanger parts, lower cost, reasonable price, much more advanced than the other heat exchangers finned tube.
4. Our main products is single/bimetallic metal fin tube for heaters with carbon steel/stainless steel/copper/aluminum welded fin, and the type of tubes are welded or seamless.
5. Different kinds of Stainless steel round welding fin heater can be developed and designed according to your requirements, finning type including High frequency welding / Extruded / L-foot / H type / Embedded etc.
6. Weld able material: carbon steel, corrosion resistant steel, stainless steel, alloy steel and aluminum&copper etc.
7. Applied range of the carbon fin / stainless steel fin tube products: Bolier economizer/ Power plant waste bolier/Petrochemical engineering and varioue types pof heat exchangers.
8. Top quality, competitive price, fast delivery, excellent service
MORE ENERGY-EFFICIENT & ENVIRONMENTAL!
WE ARE TRUSTWORTHY!
Extruded Type:
High Frequency Welded Type:
Wooden Package or Iron Frame Package:
Certificates:
Parameters Range:
Stainless steel round welding fin heater | |||
Name |
symbols |
Unit |
Value |
Steel pipe diameter |
d |
mm |
25-165 |
Steel pipe wall |
S |
mm |
2-8 |
Steel tube length |
L |
m |
1-12 |
Fin thickness |
δ |
mm |
0.6-3.0 |
Fin height |
h |
mm |
5-30 |
Fins spacing (pitch) |
t |
mm |
5-30 |
Steel tube material |
Carbon steel, alloy steel, stainless steel |
||
Fin material |
Carbon steel, alloy steel, stainless steel |
||
Fin form |
Parallel fin |
||
