Specifications
1.Heat exchanger stainless steel heating2.carbon steel/stainless steel is ok
3.delivery time 30days
4.free sample is ok
Datiled Introduction:

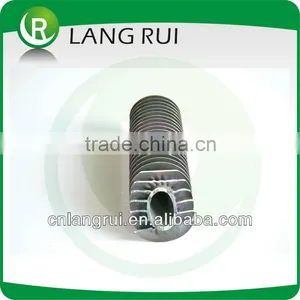

1. Heat exchanger stainless steel heating
2. Production range
Bare pipe (OD):25mm-165mm
Bare pipe length (L):1-12m
Fin spacing (t):5-30mm
Fin thick (Sn):0.6-3.0mm
Fin height (hf): general no more than the radius of bare pipe(5-30mm)
3. High technology,heat exchanger stainless steel heating,heat transfer area is 8 times than the light tube, extruded heat exchanger parts, lower cost, reasonable price, much more advanced than the other heat exchangers finned tube.
4. Our main products is single/bimetallic metal fin tube for heaters with carbon steel/stainless steel/copper/aluminum welded fin, and the type of tubes are welded or seamless.
5. Different kinds of stainless steel heating can be developed and designed according to your requirements, finning type including High frequency welding / Extruded / L-foot / H type / Embedded etc.
6. Weld able material: carbon steel, corrosion resistant steel, stainless steel, alloy steel and aluminum&copper etc.
7. Applied range of the carbon fin / stainless steel fin tube products: Bolier economizer/ Power plant waste bolier/Petrochemical engineering and varioue types pof heat exchangers.
8. Top quality, competitive price, fast delivery, excellent service
MORE ENERGY-EFFICIENT & ENVIRONMENTAL!
WE ARE TRUSTWORTHY!
More pictures for your reference:
Parameters Range:
Heat exchanger stainless steel heating | |||
Name |
symbols |
Unit |
Value |
Steel pipe diameter |
d |
mm |
Min.16 |
Steel pipe wall |
S |
mm |
No limited |
Steel tube length |
L |
m |
1-12 |
Fin thickness |
δ |
mm |
0.35-0.5 |
Fin height |
h |
mm |
Max.16 |
Fins spacing (pitch) |
t |
mm |
2.3-5.0 |
Steel tube material |
Carbon steel, alloy steel, stainless steel |
||
Fin material |
Aluminum |
||
Fin form |
Parallel fin |
||
