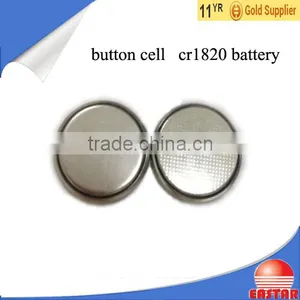

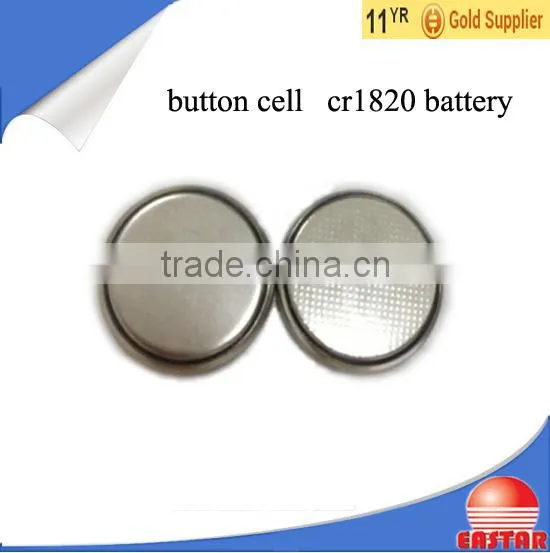

Li-MnO2 button cell cr1820 battery
| Li-MnO2 Button Cell | |||||||||
| Model | Nominal | Nominal | Dimension With Tube | Operating Current | Cut off | Weight | Operating | ||
| IEC | Voltage | Capacity | Diameter | Height | (max.mA) | Voltage | Approx | Temperature | |
| (v) | (mAh | (mm) | (mm) | Continuous | Pulse | (v) | (g) | (℃) | |
| CR1220 | 3 | 35 | 12.5 | 2 | 1.5 | 5 | 2 | 0.9 | -30~+60 |
| CR2430 | 3 | 270 | 24.5 | 3 | 1.8 | 15 | 2 | 4.2 | -30~+60 |
| CR1620 | 3 | 60 | 16 | 2 | 1.5 | 8 | 2 | 1.3 | -30~+60 |
| CR2016 | 3 | 70 | 20 | 1.6 | 1.8 | 8 | 2 | 1.7 | -30~+60 |
| CR2025 | 3 | 140 | 20 | 2.5 | 1.8 | 12 | 2 | 2.5 | -30~+60 |
| CR2032 | 3 | 210 | 20 | 3.2 | 1.8 | 12 | 2 | 3.1 | -30~+60 |
| CR2450 | 3 | 550 | 24.5 | 5 | 1.8 | 15 | 2 | 6.2 | -30~+60 |
| CR1616 | 3 | 50 | 16 | 1.6 | 2 | 10 | 2 | 1.1 | -40~+60 |
| CR1632 | 3 | 120 | 16 | 3.2 | 2 | 15 | 2 | 1.8 | -40~+60 |
| CR2332 | 3 | 220 | 20 | 3.2 | 3 | 20 | 2 | 3.1 | -40~+60 |
| CR2325 | 3 | 190 | 23 | 2.5 | 3 | 20 | 2 | 3.2 | -40~+60 |
| CR2354 | 3 | 530 | 23 | 5.4 | 3 | 20 | 2 | 6.3 | -40~+60 |
| CR1025 | 3 | 30 | 10 | 2.5 | 0.1 | 3 | 2 | 0.9 | -40~+60 |
| CR1225 | 3 | 50 | 12.5 | 2.5 | 0.2 | 3 | 2 | 1.1 | -40~+60 |
| CR2320 | 3 | 130 | 23 | 2 | 3 | 15 | 2 | 3 | -40~+60 |
| CR2330 | 3 | 250 | 23 | 3 | 3 | 15 | 2 | 4 | -40~+60 |
| CR2477 | 3 | 950 | 24.5 | 7.7 | 3 | 15 | 2 | 10.5 | -40~+60 |
| CR1216 | 3 | 25 | 12.6 | 1.6 | 0.1 | 3 | 2 | 0.7 | -40~+60 |
| CR3032 | 3 | 500 | 30 | 3.2 | 3 | 20 | 2 | 6.8 | -40~+60 |
Our Certificates:
Company Profile:
Established in 1997, Shenzhen Eastar Battery Co., Ltd. is a professional manufacturer of various batteries. Our products cover a full range of carbon-zinc batteries, alkaline batteries and rechargeable batteries, lithium batteries, lead acid batteries and button cells.
As a battery manufacturing group, we have set up two separate factories in Guangzhou and Shenzhen cities respectively for different items. Stressing the importance of quality, with a belief "quality is our life", we invested much on advanced production facilities and testing equipment. Moreover, we have a powerful R&D team and many skillful employees.
Based on the ISO9001 standard, we have built up a complete quality control system, which guarantees the quality of products. Furthermore, we always march ahead of technological and quality control trends in the battery field. With a large production capacity, our products are widely exported to many countries in the world.
We welcome both ODM orders and OEM projects for completion. If you are interested in any of our products, please contact us for more details. We hope to establish friendly relationships with both domestic and overseas customers.
As a lithium li-ion battery manufacturing group, we have separate factory located in Guangzhou, Shenzhen for different battery types. We understand well on the importance of the quality, so we invested much on the advanced production facilities and testing equipments. We have a powerful R&D and skillful worker group. Based on ISO9001, we built up a complete quality control system. We always keep ourselves working ahead on technology and quality control in battery field.
It contributed us to supply with good quality products to our customers always. With a large capacity, we export more than 50 containers battery monthly to countries all over the world
