Help CenterBorosilicate Optical Glass
Related Products
Specifications
1.Great material for optical glass2.low co-efficient of expansion,
petitive price,
4.2-12mm,15mm,20mm

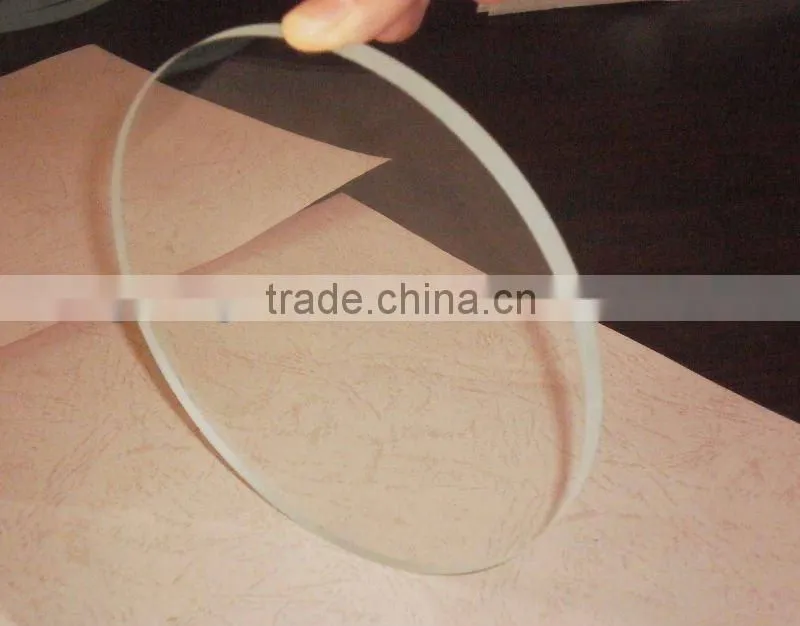

Great material for optical glass
1. Characteristics
Great heat resistance performance,stable chemical property;
High light transmission;
Various thicknesses for you to choose;
Wide optical application.
2. Application
Borosilicate 3.3 serves as a material of true function and wide applications:
1). Household electrical appliance (panel for oven and fireplace, microwave tray etc.);
2). Environmental engineering and chemical engineering (lining layer of repellence, autoclave of chemical reaction and safety spectacles);
3). Lighting (spotlight and protective glass for jumbo power of floodlight);
4). Power regeneration by solar energy (solar cell base plate);
5). Fine instruments (optical filter);
6). Semi-conductor technology (LCD disc, display glass);
7). Medical technique and bio-engineering;
8). Safety protection (bullet proof glass)
3. Technical Data
Dimensions: 1150mm×850mm 1150mm×1700mm other formats upon request
Available thickness: 2mm--12mm 20mm
Processing: pre-cut formats, edge processing
Density (at 25): 2.23±0.02g/3
Co-efficient of expansion(20-300): 3.3±0.1×10-6
Softening point: 820±10
Identical temperature difference (Strengthening type): 100K
Maximum working temperature: more than 450
Refractive: nd : 1.47384
Light transmission: 92%thickness≤4mm91%(thickness≥5mm)
