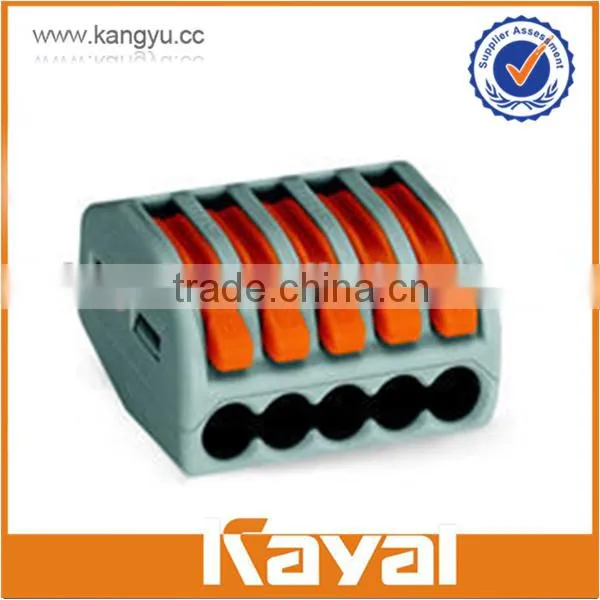

Similar wago 5 compact connector, lever wire connector, high quality PA wire connector
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1.Features of crimp connector wire harness terminal:
Safety-Can avoid wire loosing, adhesive aging, wire fire risk etc.
Convenience - There is a test hole. No need to remove the adhesive tape for Voltage testing.
Reliability- Every contact is independent, firm combination of different diameter security short circuit.
Utility- The wire can be directly inserted after stripping , it is reusable
2.Technical parameters of crimp connector wire harness terminal :
| Wire cross section(mm2): |
0.08-2.5(Single laid wire ) 0.08-4.0(Stranded conductor ) |
Insulation material: | PA66 |
| Rated voltage/Current (V/A): | 400/24 | Anti-fire Grade: | V-0 or V-2 |
| Rated impulse voltage(KV): | 4 | Contact material: | Copper alloy |
| Strip length(mm): | 9-11 | Contact points: | Tin coating |

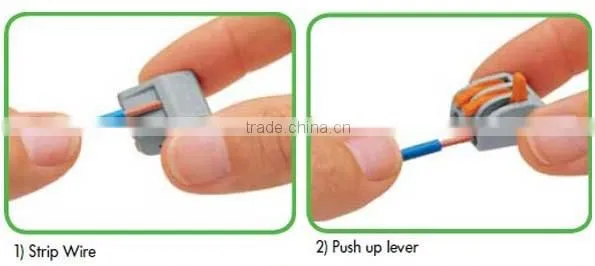

3.How to use for crimp connector wire harness terminal:
|
Established in 2002, Wenzhou Kangyu Electrical CO.,LTD. is a specialized manufacturer of definite purpose contactors,AC/DC magnetic contactors,circuit breakers. Located in Xinguang industry zone Liushi town Wenzhou city, we enjoy convenient transportation. Our company occupies an area of 30000 and has advanced facilities of injection molding machine,punching machine,monitoring station and so on. Our annual production capacity is 50,000,000 pieces. With export license, we export products to China,America,Australia, Europe,South America and Southeast Asia. Our products gain wide praises at home and abroad. Our company has won ISO9001:2008,CUL,CB,KEMA,CE,CCC,Rohs and PICC. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our tenet is “Quality First; Improve Technology; Expecting Future”. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together. |
FAQ
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or
other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
