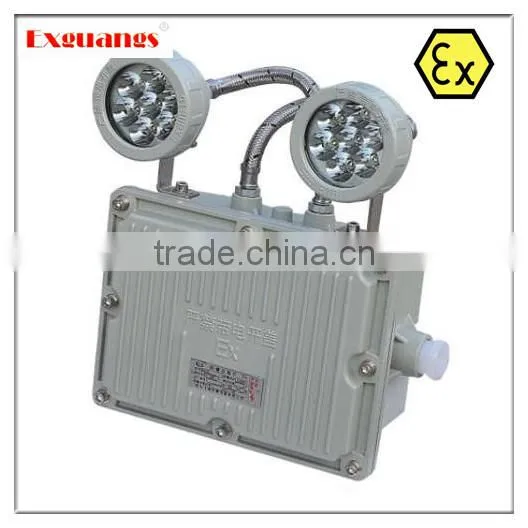

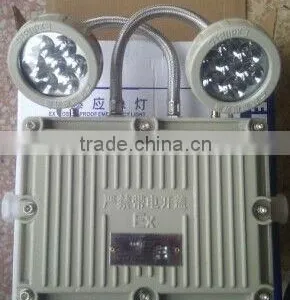

Help CenterBAJ(BCJ)Explosion Proof Emergency Lighting/Hazardous Areas Illumination
Related Products
-
Explosion Proof Exit Lighting Type BYYUS$ 15 - 20MOQ: 10 Pieces -
BAJ(BCJ)Explosion Proof Emergency LightingUS$ 10 - 20MOQ: 10 Pieces
-
BA(Y)D/BYY Series Explosion Proof Exit LightingUS$ 15 - 20MOQ: 10 Pieces
-
BAT-51 Series Explosion Proof Floodlight(IIB,IIC,tD)US$ 40 - 80MOQ: 10 Pieces
-
BTd52 Series Explosion Proof Floodlight(IIB,IIC,tD)US$ 40 - 80MOQ: 10 Pieces

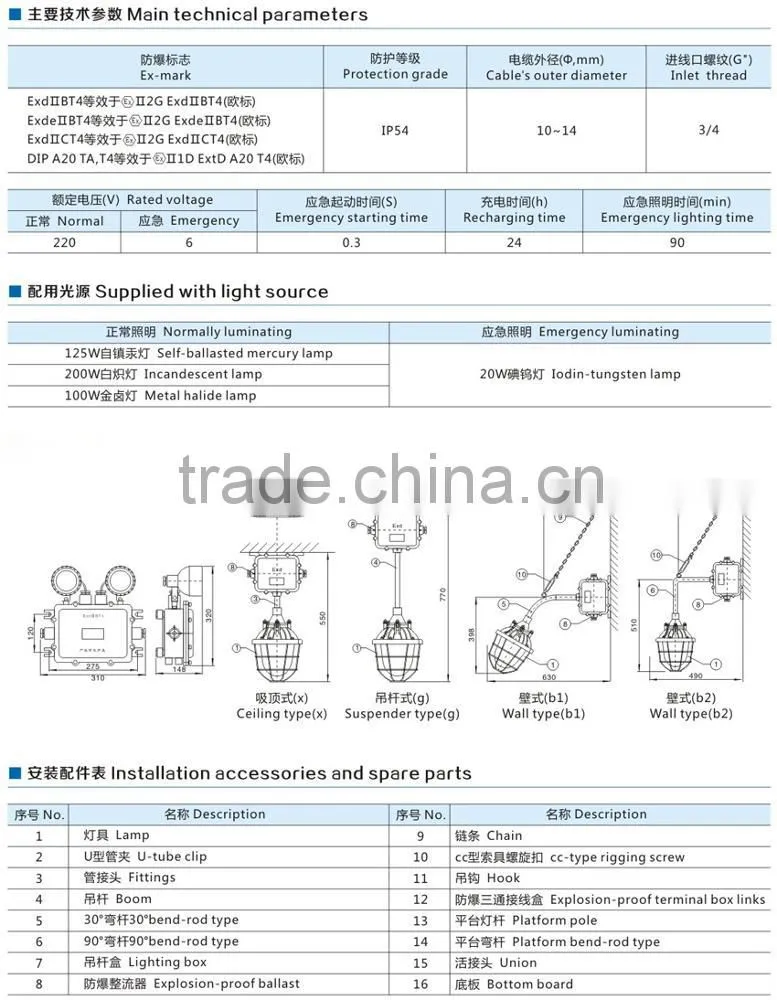

Specifications
1 Explosion Proof Emergency Lighting
2 Emergency time is longer than 20min
3 Ingress protection:IP65

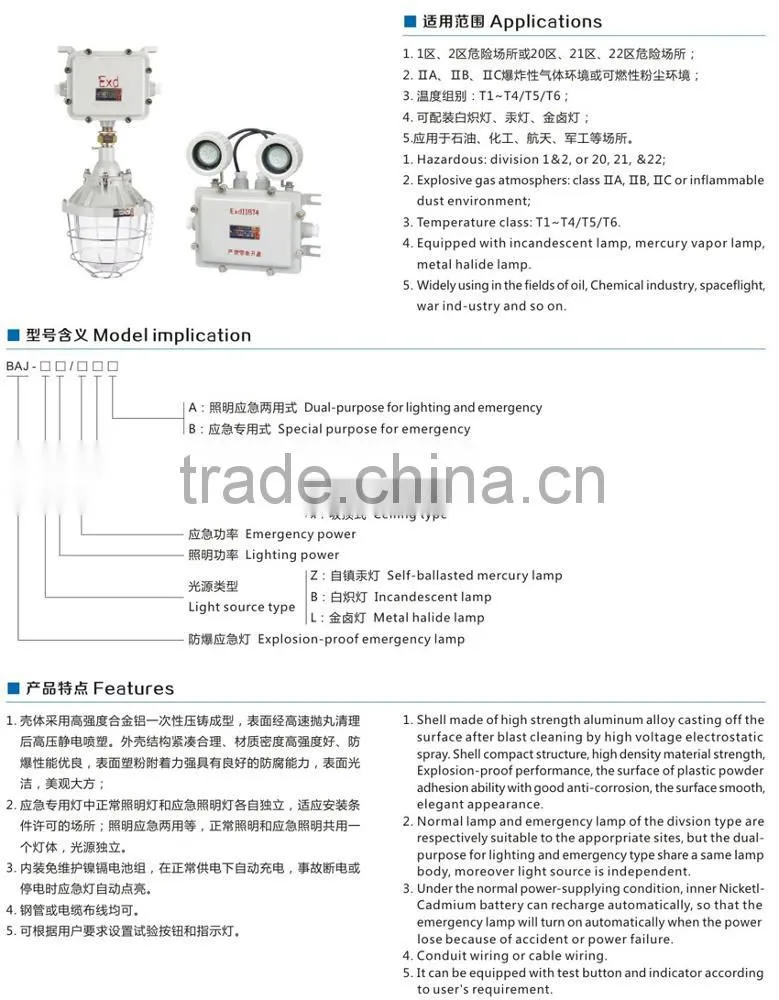

- Application
|
1 Designed for Explosive atmosphere Zone 1, Zone 2 Combustible dust Zone 20, Zone 21, Zone 22 |
|
2 Designed for Groups IIA, IIB,IIC Temperature classes T1~T4 |
3 Designed for site with explosive atmosphere such as petroleum exploitation refinery, storage, chemistry, medicine, textile, printing, military and military facilities etc. |
4 Types options: A, B, C, D, E |
5 B type is emergency exclusive type and A, C, D,E types are normal and emergency dual propose types. |
Lighting Type |
Main Parameter |
|
Normal and emergency lighting dual purpose model normal lighting lamp is GLS, SBMV, emergency lighting is LED. |
Compliance with:GB 3836.1,GB 3836.2,GB 3836.3,GB 3836.9,GB 12476.1, IEC60079-0,IEC60079-1,IEC60079-7,IEC60079-18,IEC61241-1-1 Rated voltage: AC 220V Explosion protection:ExdIIBT4,DIP A20 TA,T4 ExdembIICT4 Matching light:BCd200-X CCd93(II) Max.length of lamp:195mm 255mm Normal lighting:B200,Z125 Emergency lighting: LED 5W Lampholder:E27 Charging time:≤24h Emergency voltage:DC 3.6V Emergency time:≥120min Ingress protection:IP65 Corrosion resistance:WF1 Cable entries specification:G3/4″ Cable's out diameter:Φ9mm~Φ14mm |
|
Emergency exclusive type, LED bulb, only works under emergency conditions. |
Compliance with: GB 3836.1,GB 3836.2,GB 3836.3,GB 3836.9,GB 12476.1, ICE60079-0,IEC60079-1,IEC60079-7,IEC60079-18,IEC61241-1-1 Rated voltage: AC 220V Explosion protection:ExdIIBT4,DIP A20 TA,T4,ExdembIICT4 Emergency lighting: LED 2×2W Charging time:≤24h Emergency voltage:DC 3.6V Emergency duration:≥120min Ingress protection:IP65 Corrosion resistance:WF1 Cable entries specification:G3/4″ Cable’s outer diameter:Φ9mm~Φ14mm
|
|
Normal and emergency lighting dual purpose type, normal lamp is HPM, HPS, MHI, emergency lamp is LED. |
Compliance with: GB 3836.1,GB 3836.2,GB 3836,3,GB 3836.9,GB 12476.1, IEC60079-0,IEC60079-1,IEC60079-7,IEC60079-18,IEC61241-1-1 Rated voltage: AC 220V Explosion protection:ExdIIBT4,DIP A20 TA,T4 ExdembIICT4 Matching lightingd:BCd200-X CCd93(I) CCd93(II) : Max. length of lamp: 195mm 185mm 255mm Normal lighting:G80,G125,N70,N100,N110,L70,L100,L150 Emergency lighting: LED 5W Lampholder:E27 Charging time:≤24h Emergency voltage: DC 3.6V Emergency duration:≥120min Ingress protection:IP65 Corrosion resistance: WF1 Cable entries specification:G3/4″ Cable’s outer diameter:Φ9mm~Φ14mm |
Packaging Details:
1. Standard export packing or customized packing available.
2. Shipping arrangement according to buyers request.
Delivery Detail: Shipped in 5 days after payment
Dear Customers,
Welcome to visit Exguangs online marketing display.
To serve you in a better and efficient way, please browse our products and contact us with following information.
1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?
2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.
3. Your preference on light source, power and installation methods etc.
We will offer our best products and prices according to your actual demand.
Sincerely yours,
Exguangs sales team.
Zhejiang Guangshun Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
1. What is our advantage in the industry?
Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.
Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.
2. What is our sales and distribution policy?
We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.
3. Do you have warranty policy?
We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.
