China Foshan Explosive proof pressure switch
Technical Parameter:
1, Switching type : DPDT 2NC+2NO, Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: R1/2"-14BSPT( Male ).
3, Electrical connection: UL 2517 3X22AWG,
Lead wire length: 1000mm & 2000mm & 3000mm & 4000mm & 5000mm( Selectable ).
4, Voltage & Resistance load : DC24V 3A; 50Hz AC250V 3(1.5)A.
5, Fluid media: water, steam, hydraulic oil, compressed air etc .
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP65.
8, Ambient temperature: -40°C~125°C(Selectable),
Medium temperature: -40°C~180°C(Selectable). .

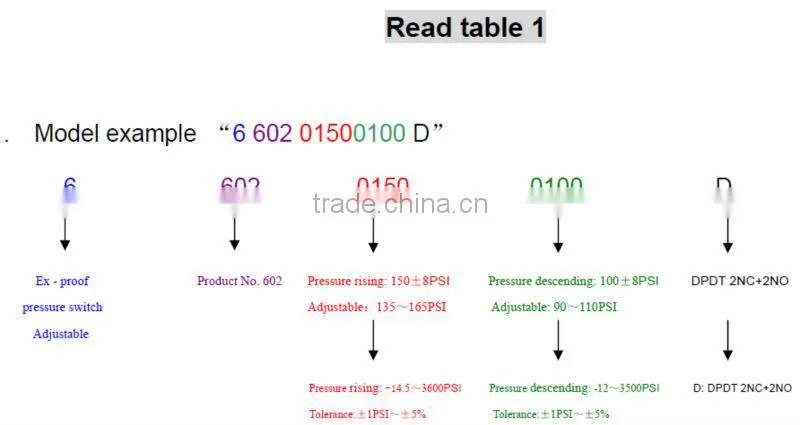

9, Model: ( Selectable, Read table 1).
10,Working pressure: -14.5 to 3600PSI , Adjustable (Selectable, Read table 2).
11, Explosion-proof grade: Exd Ⅱ CT6 , Explosion-proof certificate Certificate No.: CNEx11.2271
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.

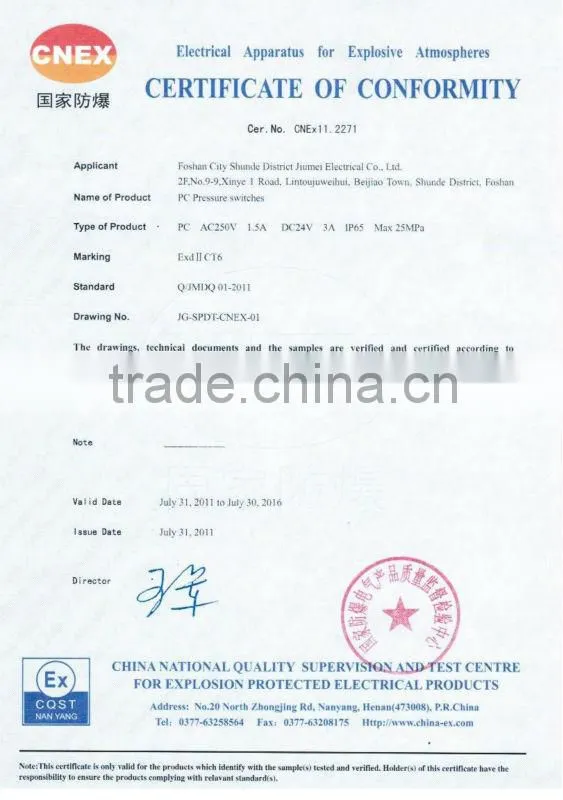

Certificate:

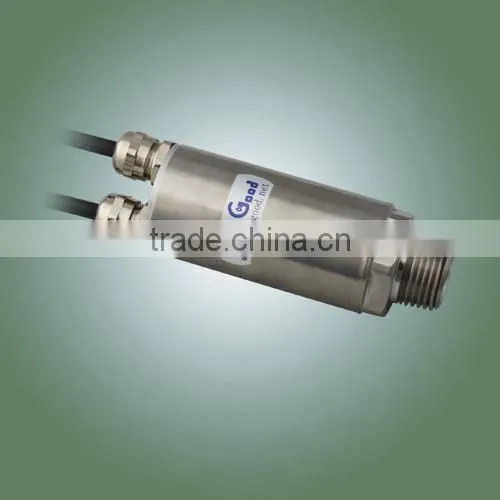

Product Photo:
Dimension Drawing:
