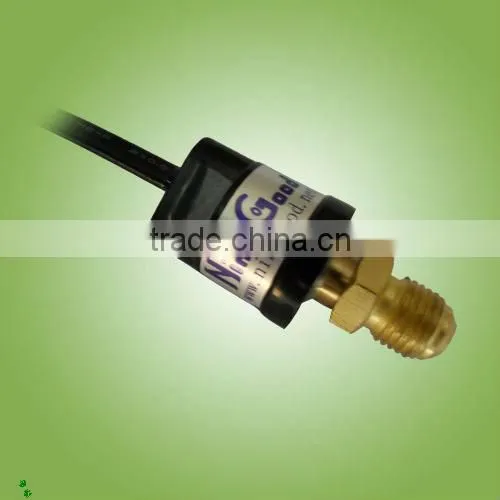

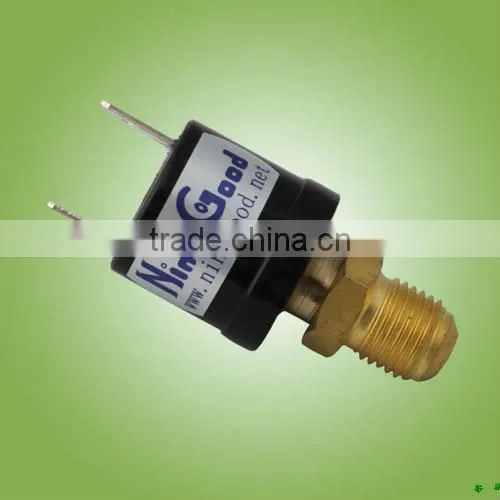

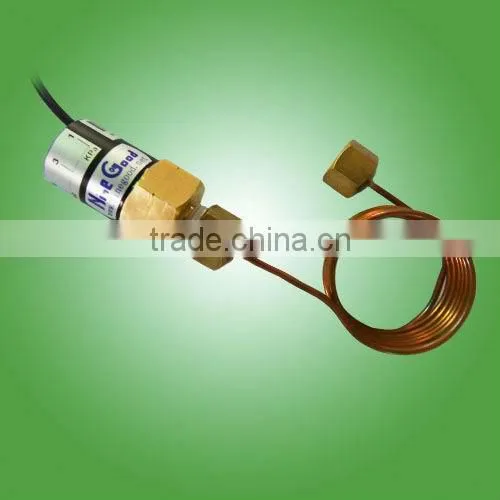

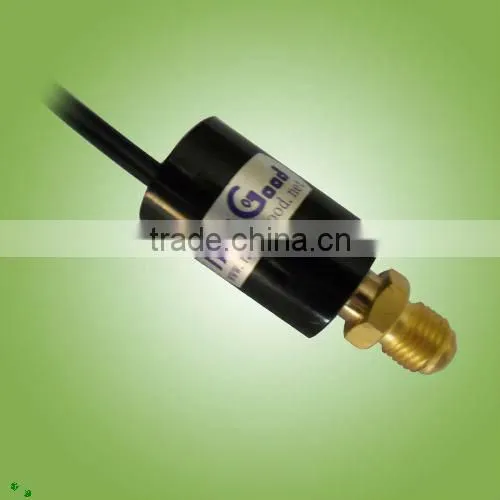

Help CenterHigh Temperature Pressure Switch
US$ 10 - 25
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NineGood
Model Number:
PC series -900
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Temperature Steam Pressure Control Switch (901)US$ 10 - 25MOQ: 100 Pieces -
Steam Pressure Switch (902)US$ 10 - 25MOQ: 100 Pieces
-
High Temperature Steam Pressure Sensor (903)US$ 10 - 25MOQ: 100 Pieces
-
Steam Pressure Control Switch 904US$ 10 - 25MOQ: 100 Pieces
-
Steam High Temperature Pressure Control Switch (905)US$ 10 - 25MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
NineGood
Model Number
PC series -900
Max. Current
6A
Max. Voltage
250VAC
Max. Working Pressure
800PSI
Specifications
Suitable for water & gas & air & oil & steam,etc.Pressure range: 0 to 800PSI
Technical Parameter:
1, Switching type : SPST NC or SPST NO or SPDT NC+NO (Selectable),
Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: a variety of user-selectable.
3, Electrical connection: a variety of user-selectable.
4, Voltage: 5-110VDC, 5-250VAC;
Resistance load : 0.1A to 6A, Inductive load : 0.1A to 3A.
5, Fluid media: water & gas & air & oil & steam,etc .
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP00 or IP54 or IP65(Selectable).
8, Ambient temperature: -40°C~125°C(Selectable),
Medium temperature: -40°C~180°C(Selectable). .
9, Model: a variety of user-selectable.
10,Working pressure: 0 to 800PSI (Selectable).
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2011
Factory Size
1,000-3,000 square meters
Total Employees
11 - 50 People
