Specifications
hydraulic pressure switchSuitable for
Air, Water, Vacuum,oil
Pressure range: Vacuum -14.5 to 800PSI
stable performance

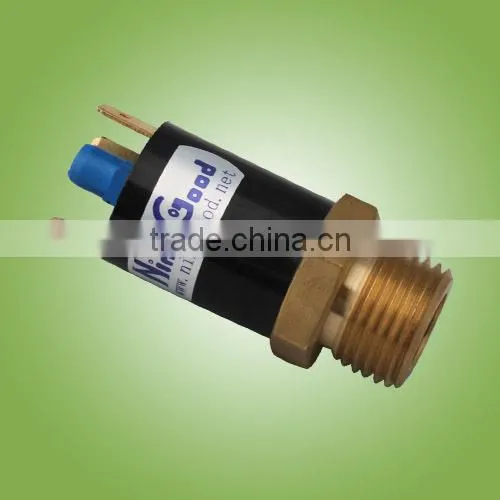

hydraulic pressure switch
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPDT NC + NO (Selectable), Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: G1/2"-14BSP Thread (Male ).
3, Electrical connection: 6.35X0.8 Male terminals (Brass & Silver plating).
4, Voltage: 5-110VDC, 5-250VAC; Resistance load : 0.1- 6A, Inductive load : 0.1-3A.
5, Fluid media: Air,Water, Vacuum,etc.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP00 (No PVC jacket); IP54 ( Equipped with PVC jacket).
8, Ambient temperature: -20°C~55°C, Medium temperature: 0°C~80°C.
9, Model: (Read table 1).
10,Working pressure: Vacuum -14.5PSI to +800PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.
Certificate:
Production Photo:

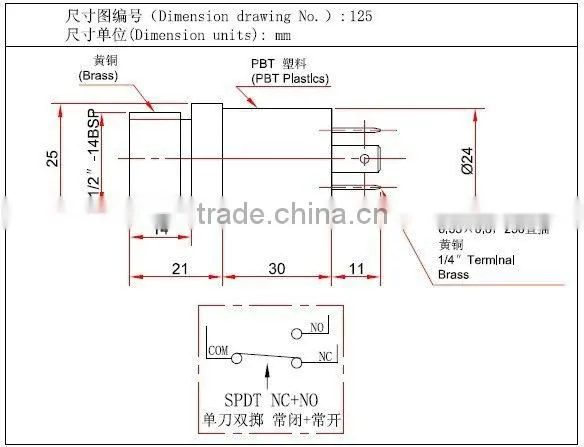

Dimension Drawing:
