Specifications
washing machine pressure switchhigh quality.
easy installation.
selectable working pressure.
suitable for vacuum,water ,oil
washing machine pressure switch
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : DPST 2NC or DPST 2NO (Selectable),
Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: 1/8"-27NPT Thread (Male ).
3, Electrical connection: UL 1015 18AWGX4, Lead wire.
4, Voltage: 5VDC to 110VDC, 5VAC to 250VAC;
Resistance load : 0.1A to 6A, Inductive load : 0.1A to 3A.
5, Fluid media: Air,Water, Vacuum,Oil,etc.
6, Work Life: ≥100,000 Cycle.
7, Levels Of Protection: IP65.
8, Ambient temperature: -20°C~55°C, Medium temperature: -10°C~80°C.

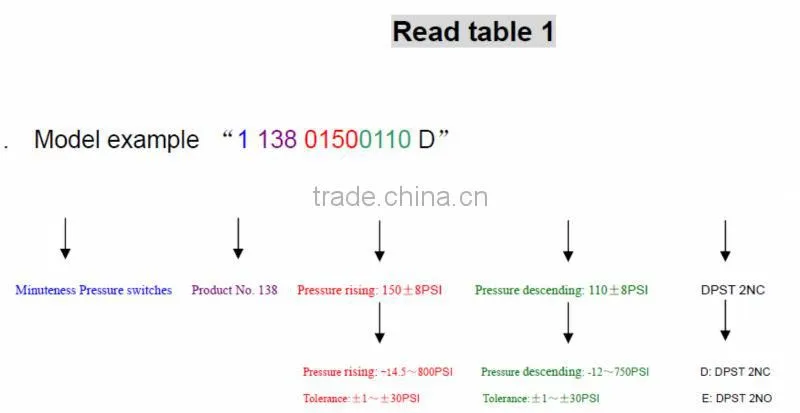

9, Model: (Read table 1).
10,Working pressure: Vacuum -14.5PSI to +800PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free
Certificate:
Production Photo:

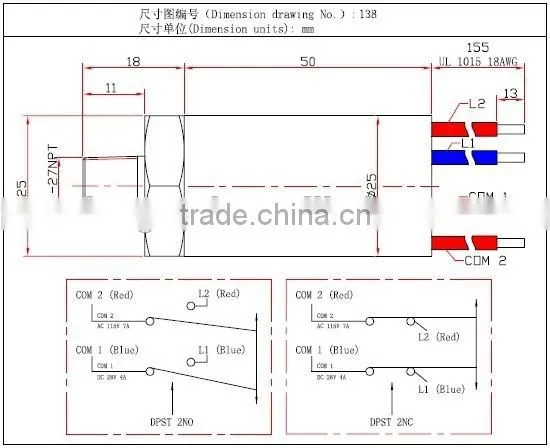

Dimension Drawing:
