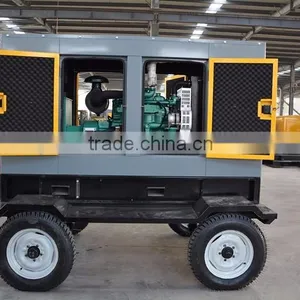

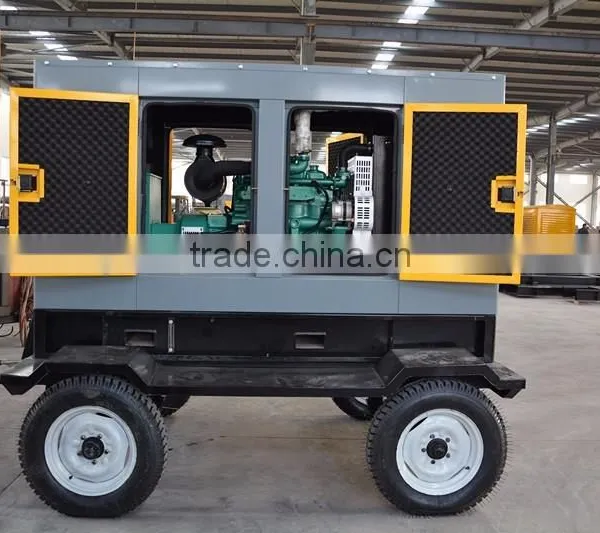

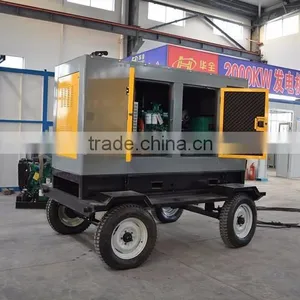

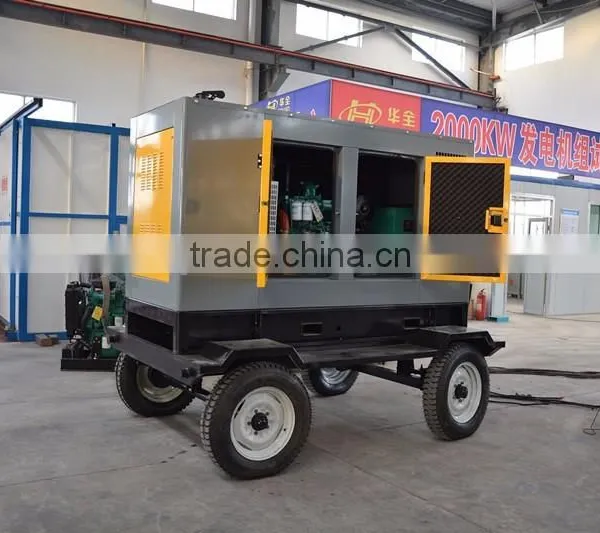

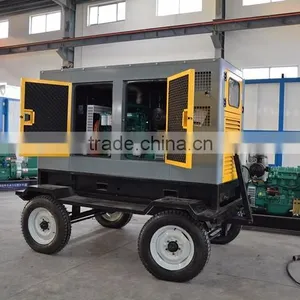

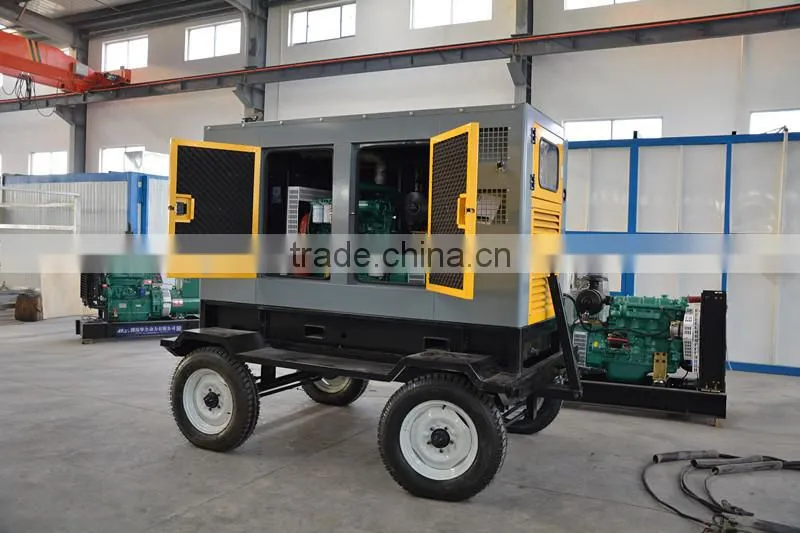

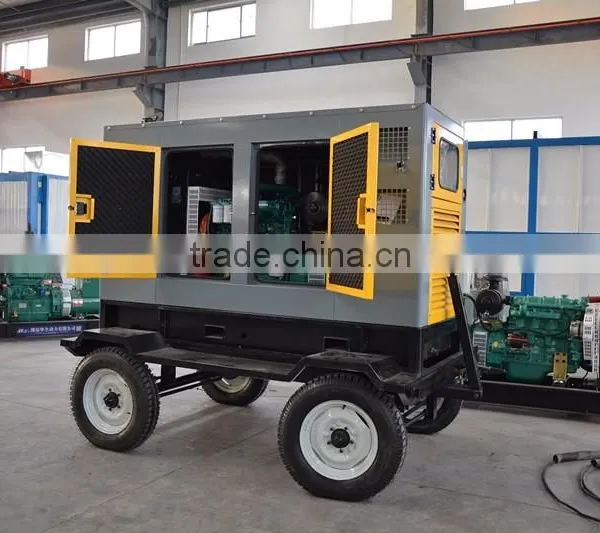

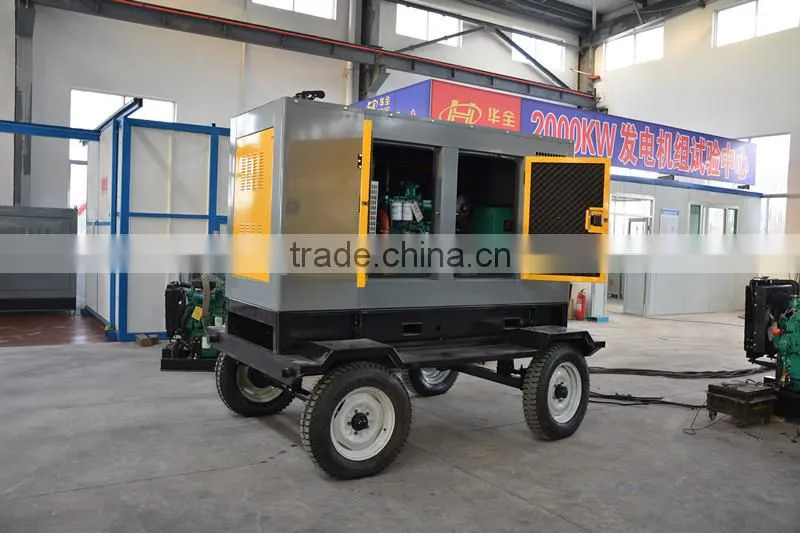

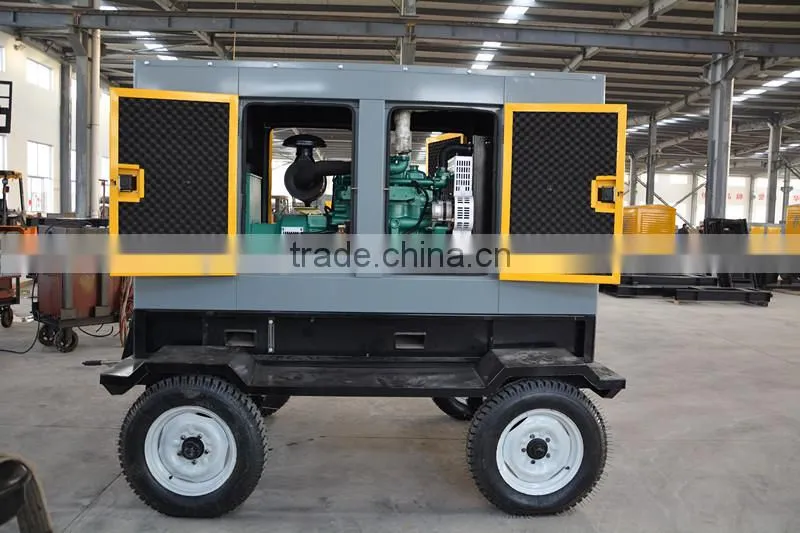

Help Center50kw Yuchai Silent Diesel Mobile Trailer
Related Products
-
China Weifang Famous Yuchai 30kw Electric Diesel GeneratorUS$ 3,780 - 3,790MOQ: 1 Set -
30 kw Generator Price China Yuchai Diesel GeneratorUS$ 3,780 - 3,790MOQ: 1 Set
-
Yuchai Strong Power 300kw Diesel GeneratorUS$ 20,550 - 20,560MOQ: 1 Set
-
300kw China Open Frame Yuchai Diesel GeneratorUS$ 20,550 - 20,560MOQ: 1 Set
-
Factory Price 300kw Yuchai Diesel GeneratorUS$ 20,550 - 20,560MOQ: 1 Set
shipping : in 3-7days after deposit
package: plywood package
Product Information

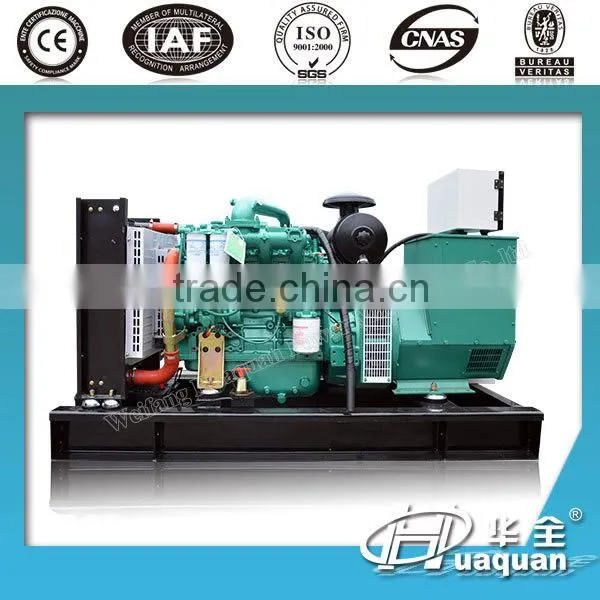

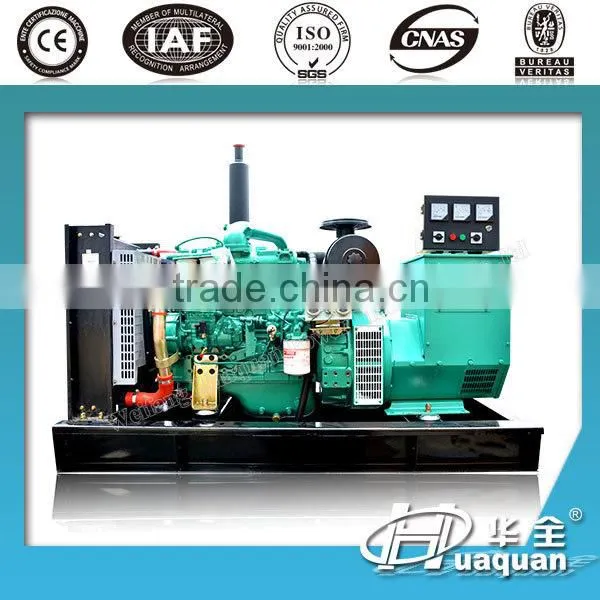

Guangxi Yuchai Diesel Generator Set Features:
1. Diesel generator adopt the Guangxi original Yuchai engine, as the main power support.
Engine charactors: Injection, Inline.Four stroke,water-cooled
2. Yuchai engine basic its years experience,produce the more strong ,stable and low fuel cost engine.
Widely used as continous work area, continous working time more than 48 hours.
3. Yuchai engine strong power,stable,long working life,low fuel cost, and price economic, price lower than Deutz, Cummins engine etc.Widely used in Factory, Project, Shop,Hospital ,Train,Aireport,station etc areas.
4. Alternator, adopt option brand like China brush alternator, Stamford, Farady, Marathon,Leroy-somer, Lanzhou,etc so famous brands alternators.
5.This series diesel generator is the special type we promotion for abroad market, and make the highly quality level than other configurations.
6.Diesel generator including abersorber system,and protect the generator during its working time.
7.All generator surface after acidification , and suitalbe wet condtion working .
8.Standard control panel design basic the operation,and easy show all meters you care during generator working time.
9.Structure: adopt the high strong steel make the under frame, and easy moved and stable long life.
10.We offer options generators as the below shows:
A.Frequency we offer 50HZ and 60HZ.
B.Voltage: we offer 110/220v, 240v,380v/440v,254v/440 etc,or depend on your request.
C.Phase: we offer three phase or single phase generator
D.Options parts like: Electric speed adjustment, LCD show panel,protection system,Automatic transfer system. Silent canopy, Weatherproof canopy,Fuel tank.
Parameters
| 50KW DIESEL GENERATOR DETAILS | |||
| Model | HQY50GF | Start Method | DC 24 |
| Generator Prime Power(KW/KVA) | 50/63 | Output Current(A) | 90 |
| Standby Power(KW/KVA) | 55/69 | Voltage(V) | 400/230 |
| Power Factor | 0.8 | Phase | Three phase, Four Wires |
| Frequency(Hz) | 50 | Weight(kg) | 1000 |
| Size(mm) | L | W | G |
| 1800 | 750 | 1300 | |
| Diesel Engine Data | |||
| Manufacturer | Yuchai | Model | YC4D85Z-D20 |
| Rated Speed(Rpm) | 1500 | Diesel Engine Max Power(KW/H) | 60.5 |
| Cylinder No. | 4 | Arrangement Type | In-line |
| Bore×Stroke(mm) | 108×115 | Displacement(L) | 3.61 |
| Intake Method | Turbocharged | Compression ratio | 17.0:1 |
| Fuel | Diesel Fuel | Full Load Consumption(g/kw.h) | ≤209 |
| Oil Capacity(L) | 14 | Start Method | Electrical |
| Engine Cooled Method | Radiator Max 40℃,fans are driven by belt with safety guard. | ||
| Alternator Data | |||
| Manufacturer | China Stanford | Model | XN50 |
| Rated Power(KW/KVA) | 50/63 | Excitation Type | Brushless |
| Insulation Class | H | Protection Grade | IP22 |
| Unload Voltage Adjustment | ≥±5% | Stable Voltage Adjustment | ±1% |
| Efficiency (%) | 94.8 | Voltage Control Method | AVR |
