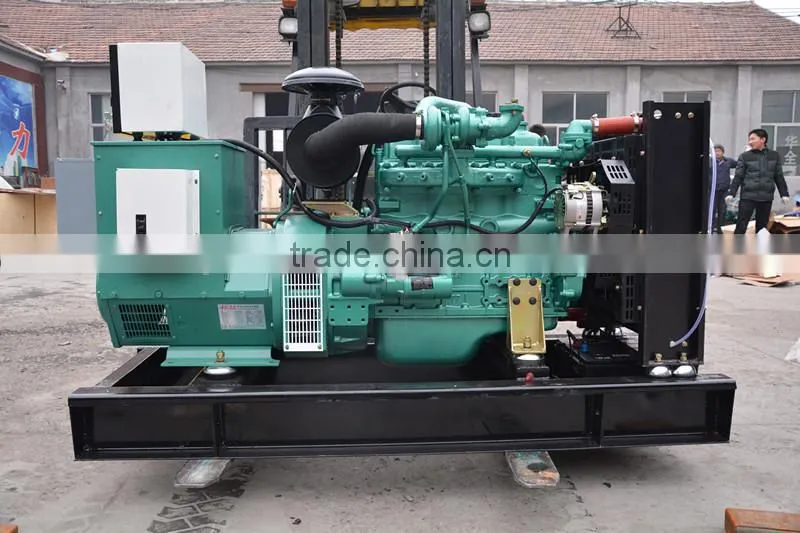

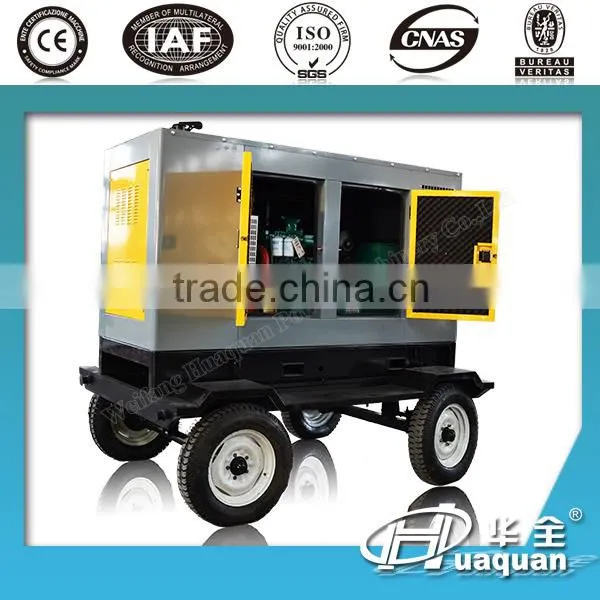

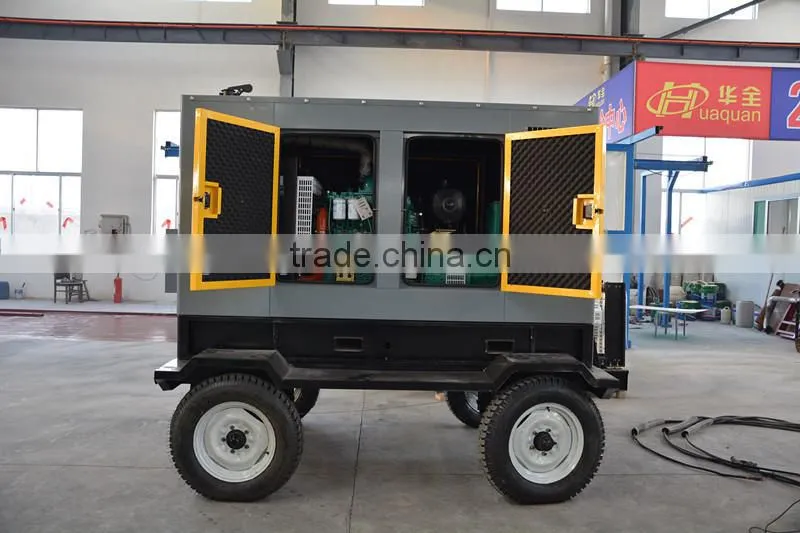

Yuchai Mobile Trailer 50kw Diesel Generator
US$ 4,860 - 4,870
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Huaquan
Model Number:
HQ50GF, HQ50GF, Yuchai YD4D85Z-D20
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
50kw Best Selling China Mobile Trailer Diesel Silent GeneratorUS$ 4,860 - 4,870MOQ: 1 Set -
Trailer/mobile Silent Diesel Generator 50kwUS$ 4,860 - 4,870MOQ: 1 Set
-
50kw Yuchai Silent Mobile/ Trailer Diesel GeneratorUS$ 4,860 - 4,870MOQ: 1 Set
-
Reliable Quality for Yuchai Engine 50kw Trailer Diesel Generator PriceUS$ 7,000 - 8,000MOQ: 1 Set
-
CE Approved With Brushless Alternator Diesel Generator for Hot SaleUS$ 3,000 - 10,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Huaquan
Model Number
HQ50GF, HQ50GF, Yuchai YD4D85Z-D20
Output Type
AC Three Phase
Speed
1500r/min
Frequency
50Hz
Rated Power
50KW
Rated Voltage
220/380V
Rated Current
36A
Packaging & Shipping
Package: plywood package
shipping: in 3-7days after deposit
Product Description
Parameters
| 50KW DIESEL GENERATOR DETAILS | |||
| Model | HQY50GF | Start Method | DC 24 |
| Generator Prime Power(KW/KVA) | 50/63 | Output Current(A) | 90 |
| Standby Power(KW/KVA) | 55/69 | Voltage(V) | 400/230 |
| Power Factor | 0.8 | Phase | Three phase, Four Wires |
| Frequency(Hz) | 50 | Weight(kg) | 1000 |
| Size(mm) | L | W | G |
| 1800 | 750 | 1300 | |

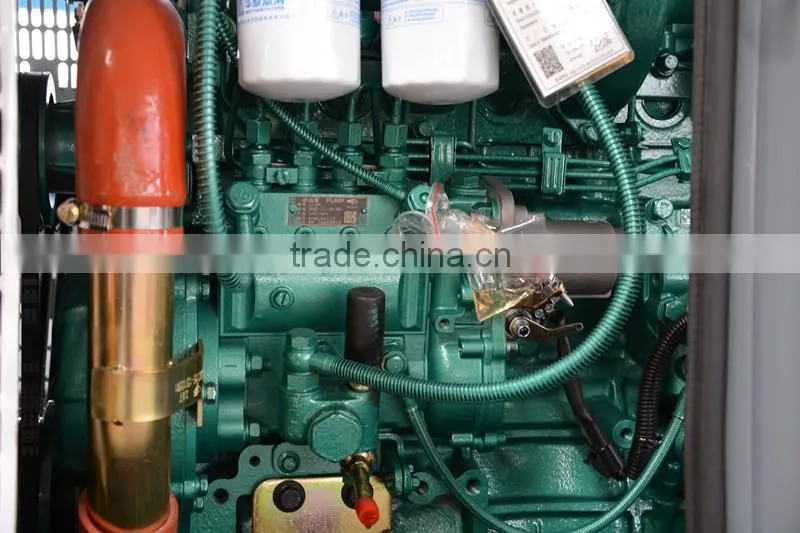

| Diesel Engine Data | |||
| Manufacturer | Yuchai | Model | YC4D85Z-D20 |
| Rated Speed(Rpm) | 1500 | Diesel Engine Max Power(KW/H) | 60.5 |
| Cylinder No. | 4 | Arrangement Type | In-line |
| Bore×Stroke(mm) | 108×115 | Displacement(L) | 3.61 |
| Intake Method | Turbocharged | Compression ratio | 17.0:1 |
| Fuel | Diesel Fuel | Full Load Consumption(g/kw.h) | ≤209 |
| Oil Capacity(L) | 14 | Start Method | Electrical |
| Engine Cooled Method | Radiator Max 40℃,fans are driven by belt with safety guard. | ||
| Alternator Data | |||
| Manufacturer | Stamford | Model | 50kW |
| Rated Power(KW/KVA) | 50/63 | Excitation Type | Brushless |
| Insulation Class | H | Protection Grade | IP22 |
| Unload Voltage Adjustment | ≥±5% | Stable Voltage Adjustment | ±1% |
| Efficiency (%) | 94.8 | Voltage Control Method | AVR |
Sales Promises
Huaquan provides a full line of brand new and high quality products.Each
and every unit is strictly factory tested Warranty is according to our
standard conditions:12 months or 1000 running hour’s ,subject to the
earlier one .Service and parts are available from our factory
