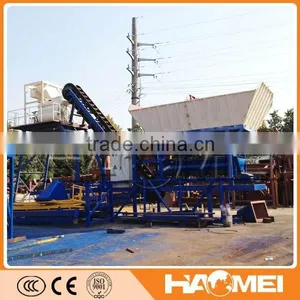

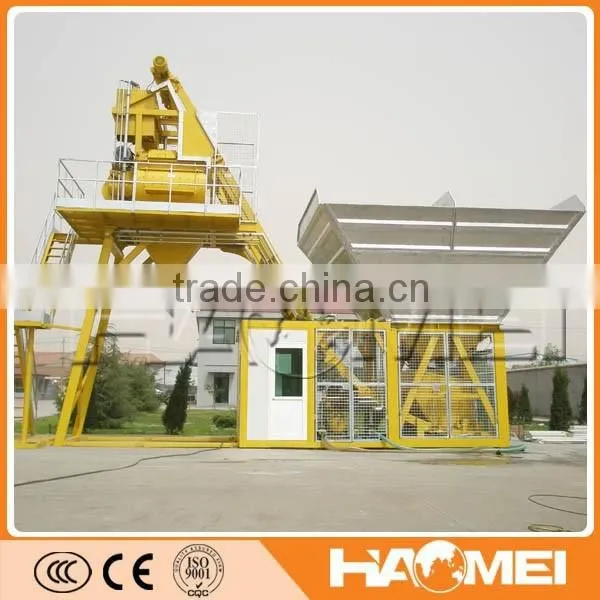

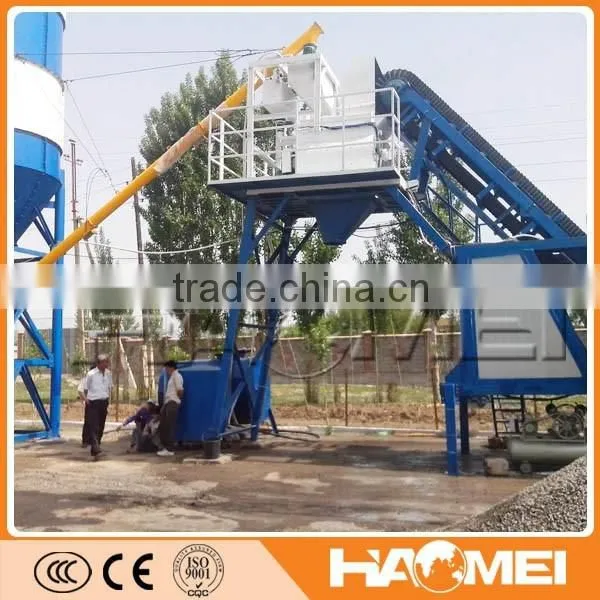

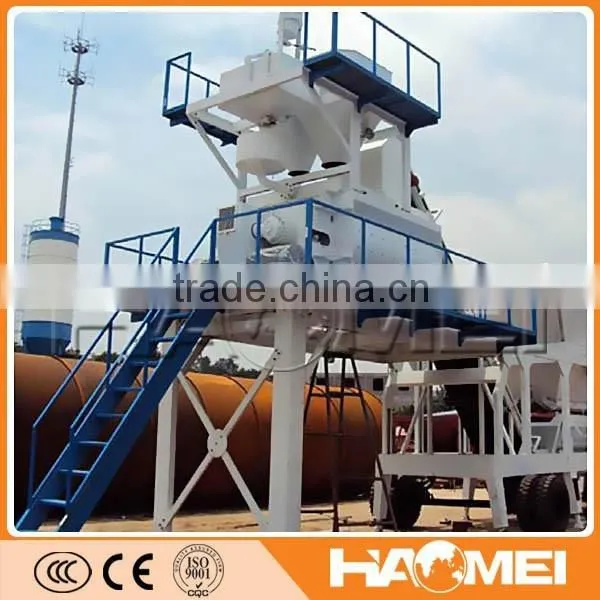

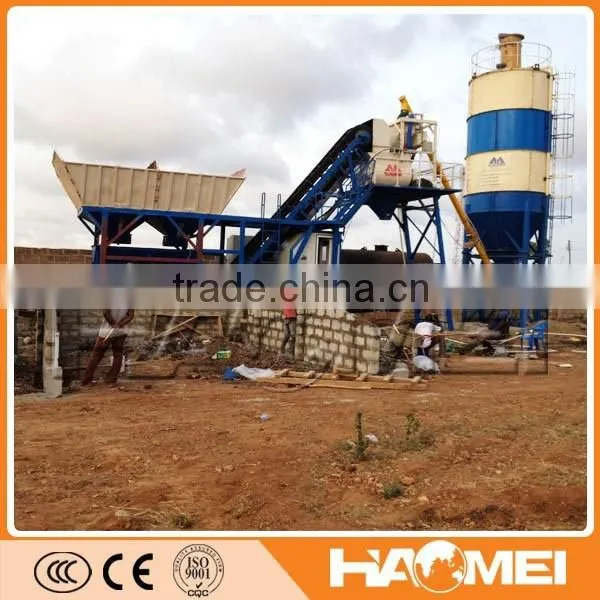

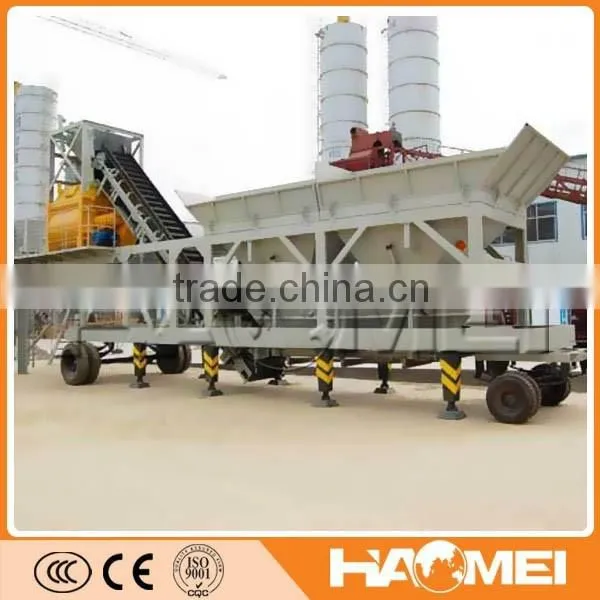

YHZS25 Mobile ready Mixed Concrete Plant :
YHZS25 mobile concrete batch plant for sale, YHZS25 mobile concrete batching plant is a new type readymix batching equipment which is movable by trailing. It is uniquely and novelly designed with a simple and compact structure. One trailing unit assembles a whole working set of aggregating, weighing, conveying and mixing system, enabling it great overall mobility. By absorbing new technologies from overseas and domestic, the mobile concrete batch plant has such characteristics as accurate weighing, homogeneous and efficient mixing, fast and clean delivery, convenient to move and operate, safe trailing, etc. It is the ideal choice for projects that require frequent movement from one construction site to another.
Technical Parameters of YHZS25 Mobile ready Mixed Concrete Plant :
Item |
YHZS25(3.8m) |
|
theoretical productivity |
25m3/h |
|
weighing scale |
concrete |
2000kg |
|
cement |
510kg |
|
water |
150kg |
|
liquid addictive |
15kg |
overall power |
about 60KW (optional parts not included) |
|
power source |
380V/50HZ |
|
discharging height |
3.8m |
|
overall weight |
20t(optional parts not included) |
|
trail speed |
≤40km/h |
|
|
specification (LxWxH) |
during work |
17x3.6x8.2m |
|
during transportation |
17.6x2.4x4.35m |
Main Components of YHZS25 Mobile ready Mixed Concrete Plant :

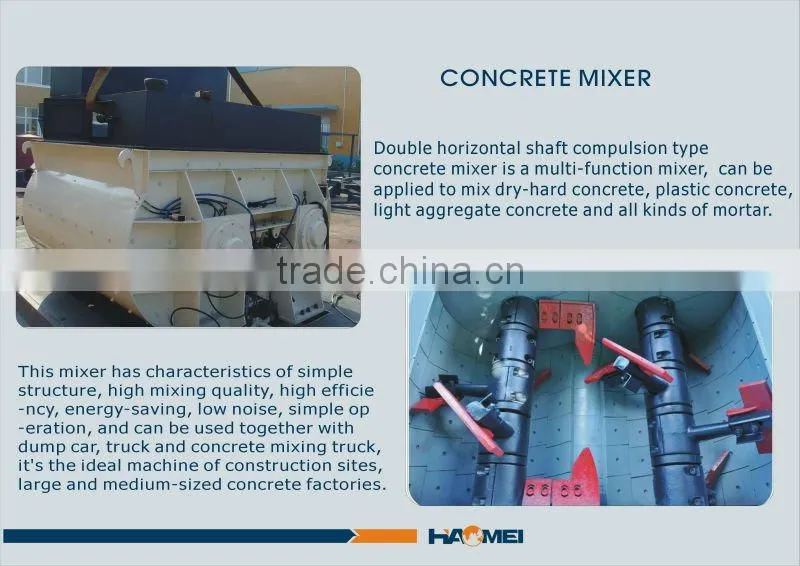

1.Concrete mixer

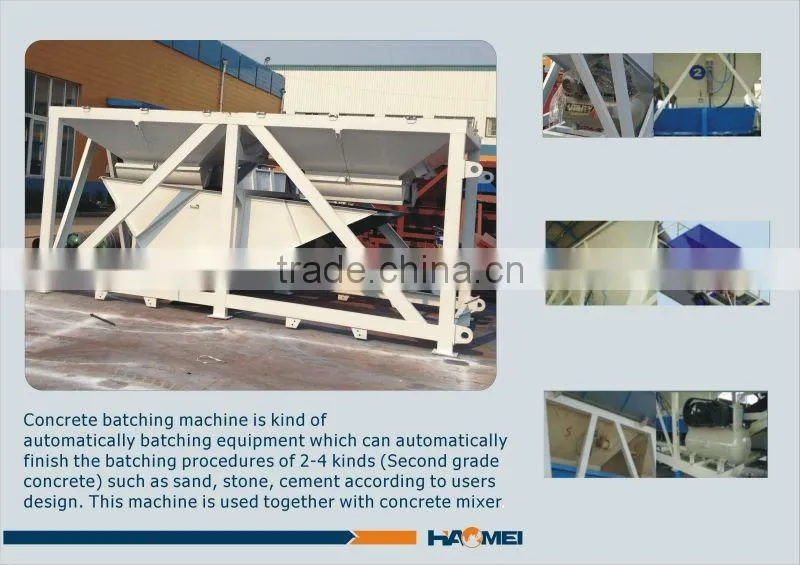

2.Bacher

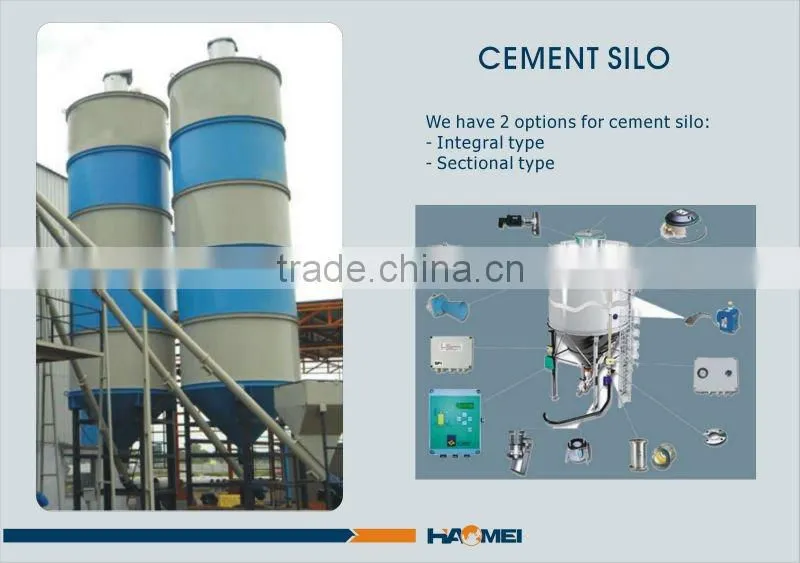

3.Cement Silo

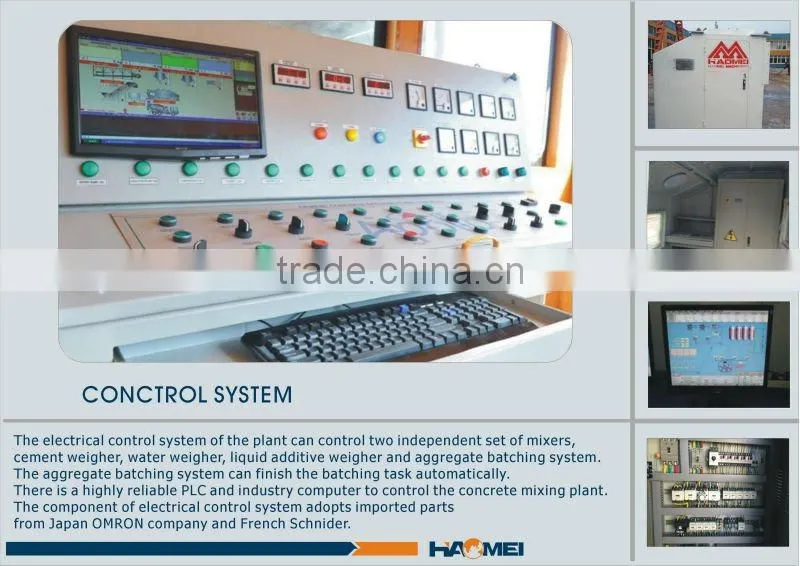

4.Control System

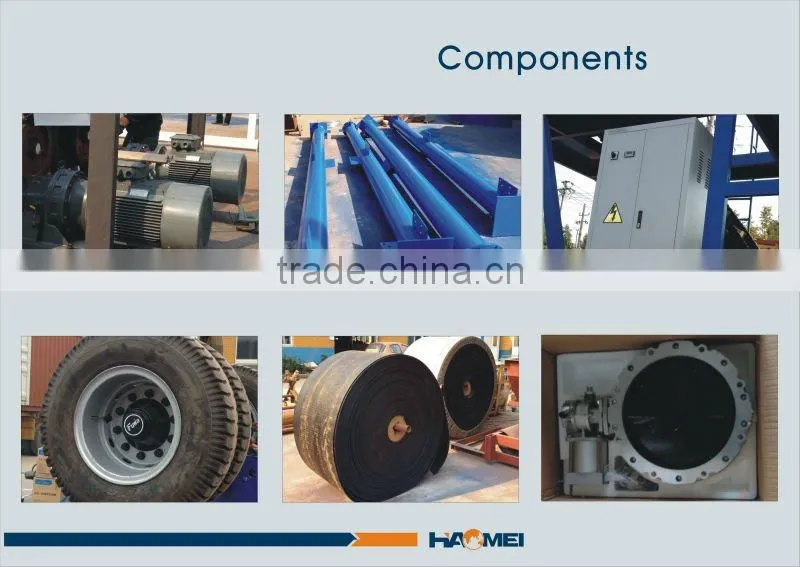

5.Components
