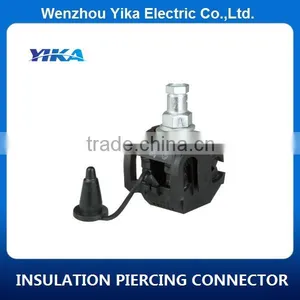

Help CenterInsulating Piercing Connector IPC Cable Clamp, Clamp Connector Waterproof Connector
Related Products
-
Series Insulation Piercing Connector, Power Connector, TTDUS$ 1 - 10MOQ: 10 Pieces -
1KV Insulation Piercing Connector 150mm2 Cable Connector JJCUS$ 1 - 10MOQ: 10 Pieces
-
China Earthing Cable Connectors Insulation Earthing Piercing Clamps for Distribution Line , JJCD10US$ 1 - 10MOQ: 10 Pieces
-
1KV-10KV Insulation Piercing Connector Earthing Cable Connectors JJCF10 Insulation Cable ClampUS$ 1 - 10MOQ: 10 Pieces
-
1KV-10KV Insulation Piercing Ground Connector, JJCF10 Insulation Cable ClampUS$ 1 - 10MOQ: 10 Pieces
1) Insulating Piercing connector, simple installation, no need strip the cable coat.
2) Moment nut, piercing pressure is constant, keep good electric connection and make no damage to lead.
3) Self-seam frame, wetproof, waterproof, and anti-corrosion, extend the using life of insulated lead and connector.
4) Adopted special connection tablet, apply to joint of Cu (Al) and Cu(Al) or Cu and Al.
5) Small electric connecting resistance, connecting resistance less than 1.1 times of the resistance of branch conductor with the same length.
6) Special insulated case body, resistance to illumination and environmental aging, the insulation strength can up to 12KV.
7) Arc surface design, apply to connection with the same (different) diamater, wide connection scope (0.75mm2 – 400mm2)
| Type | Equivalent type |
Main line section area (mm2) |
Branch Line section area (mm2) |
nominal current |
Outline size | weight (g) |
piercing depth (mm) |
| KN2-150 | JJC-4 | 50-150 | 6-35(50) | 157 | 45*52*87 | 162 | 1.5-2.5 |
- 1. Professional Manufacturer
- 2. Standards: ANSI, IEC, BS, DIN
- 3. A wide range of low and high voltage electrical products:
Fuse Cutout |
Lightning Arrester |
Composite Insulator |
Glass Insulator |
Porcelain Insulator |
Insulation Piercing Connector |
Fuses |
Disconnector Switch |
Circuit Breaker |
Ring Main Unit |
Insulated Sheath |
Capacitor |
4. Factory Direct Price
5. Enough ability to meet buyers fresh designed items.
1. Payment : T/T or Irrevocable L/C at sight
2. Delivery time and method: Usually within 30 days
3. Port of loading: NINGBO, SHANGHAI, FUZHOU (CHINA)
4. MOQ: 10PCS
5. Package: Standard export packing or as per your requirement.
OEM/ODM can be acceptable by us. We will make a mould as per your sample.
If you discovers defects in workmanship and /or material and so notifies us promptly in writing. we shall with all reasonable speed remedy such defects of non-conformance to the specifications at our expense by replacement at the option of you.
