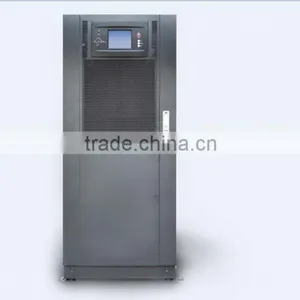

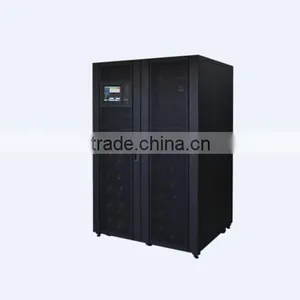

200kva Online Ups Power Parallel Ups Power Supply
US$ 10,000 - 40,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
INVT & OEM
Model Number:
HT33200X
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian Shekou Huangpu HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Three Phase in Three Phase Out High Frequency Online Tower 150kva 380v 400v 415v Ups PowerUS$ 5,000 - 6,500MOQ: 1 Unit -
Three Phase High Frequency Online Tower 120kva 380v 400v 415v Ups Power for Networking ApplicationUS$ 6,500 - 20,000MOQ: 1 Unit
-
Online Tower 100kva 380v 400v 415v Ups Power for Networking ApplicationUS$ 6,000 - 10,000MOQ: 1 Unit
-
Online Tower 90kva 380v 400v 415v Ups Power 3 Phase in 3 Phase Out Ups Power SupplyUS$ 6,000 - 8,000MOQ: 1 Unit
-
Three Phase in Three Phase Out High Frequency Online Tower 80kva 380v 400v 415v Ups PowerUS$ 5,000 - 6,500MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
INVT & OEM
Model Number
HT33200X
Phase
Three Phase
Protection
Short Circuit
Weight
350kg
Output Voltage
380/400V/415V
Type
On-line
Application
Networking
200kva online ups power parallel ups power supply
Product Specifications:
| Model | HT33200X | HT33250X | HT33300X | HT33400X | HT33500X |
| Power Rating | 200kVA | 250kVA | 300kVA | 400KVA | 500KVA |
| Main Input | |||||
| Grid System | 3 Phases + Neutral + Ground | ||||
| Rated Input Voltage | 380/400/415VAC | ||||
| Rated Frequency | 50/60Hz | ||||
| Input Voltage Range | 304~478Vac (Line-Line),full load 228V~304Vac (Line-Line),load decrease linearly according to the min phase voltage |
||||
| Input Frequency Range | 40Hz~70Hz | ||||
| Input Power Factor | >0.99 | ||||
| Input Current THDi | <3% (full Linear Load) | ||||
| Bypass Input | |||||
| Rated Bypass Voltage | 380/400/415VAC (Line-Line) | ||||
| Rated Frequency | 50/60Hz | ||||
| Bypass Voltage Range | Selectable, default -20%~+15% Up limited: +10%, +15%, +20%, +25% Down limited: -10%, -15%, -20%, -30%, -40% |
||||
| Bypass Frequency Range | Selectable, ±1Hz, ±3Hz, ±5Hz | ||||
| Bypass Overload | 125%, long time operation 125%< load <130%, last for more than 10 minutes 130%<load<150%,last for more than 1 minutes >150%, last for more than 300ms |
110% Long term operation 110%~125% last for more than 5min 125%~150% last for more than 1min >150% last for more than 1s |
|||
| Output | |||||
| Rated Inverter Voltage | 380/400/415VAC (Line-Line) | ||||
| Rated Frequency | 50/60Hz | ||||
| Output Power Factor | 0.9 | ||||
| Voltage precision | ±2% | ||||
| Transient Response | <5% for step load (20% - 80% -20%) | ||||
| Transient recovery | < 30ms for step load (0% - 100% -0%) | ||||
| Output Voltage THDu | <1.5% from 0% to 100% linear load <6% full non-linear load according to IEC/EN62040-3 |
||||
| Inverter Overload |
<110%, 60min; 110%~125%,10min; 125%~150%,1min; >150%,200ms |
||||
| Frequency Regulation | 50/60Hz±0.01% | ||||
| Synchronized Range | Settable, ±0.5Hz ~ ±5Hz, default ±3Hz | ||||
| Synchronized Slew Rate | Settable, 0.5Hz/S ~ 3Hz/S, default 0.5Hz/S | ||||
| Battery And Charger | |||||
| Battery Rate Voltage | ±240VDC | ||||
| Charger Voltage precision | 1% | ||||
| Charger Power | max=20% *Output power | ||||
| Efficiency | |||||
| Normal Operation | >96% | ||||
| Battery Operation | >96% | ||||
| System | |||||
| Display | LED + LCD + touch screen | ||||
| Interface | RS232, RS485, USB,Programmable dry contact,battery cold start | ||||
| Option | SNMP,AS400,parallel kit,Lightning protection components,Dust Filter,LBS | ||||
| Environmental | |||||
| Operation Temperature | 0 ~ 40 ℃ | ||||
| Storage Temperature | -40 ~ 70 ℃ | ||||
| Relative Humidity | 0 ~ 95% Non condencing | ||||
| Noise (1 meter) | 65dB @ 100% load, 62dB @ 45% load | ||||
| Altitude | <1000m, Load derated 1% per 100m From 1000 ~ 2000m | ||||
| Phisical data | |||||
| Cabinet Dimension(W*D*H,mm) | 650*960*1600 | 650*960*2000 | 650*960*2000 | 1300*1100*2000 | 1300*1100*2000 |
| Cabinet Weigh (kg) | 350 | 445 | 490 | 810 | 900 |

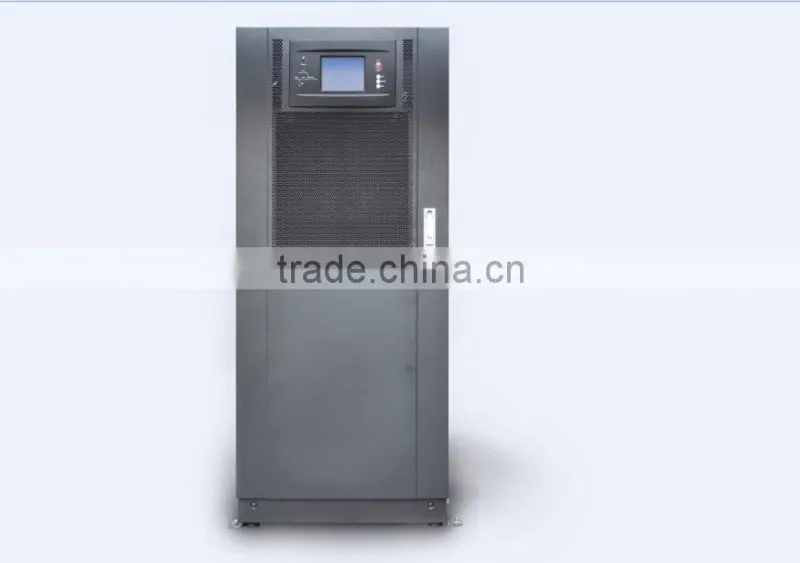

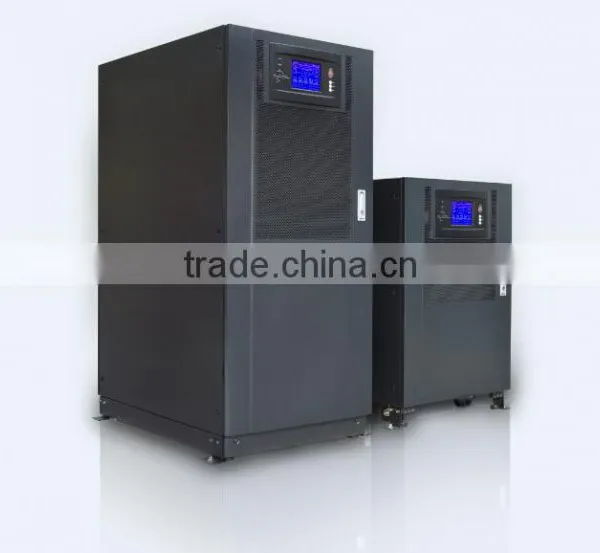

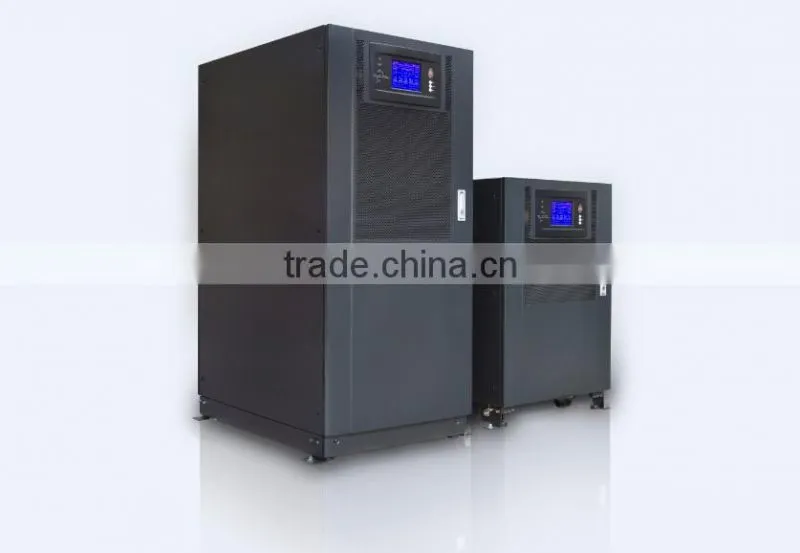

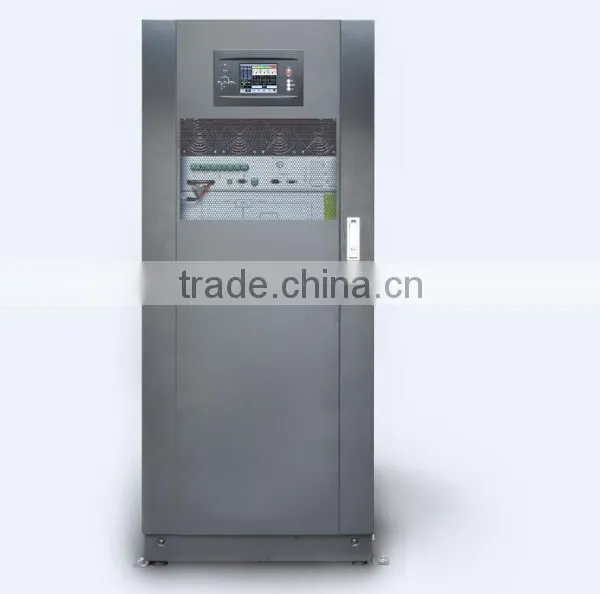

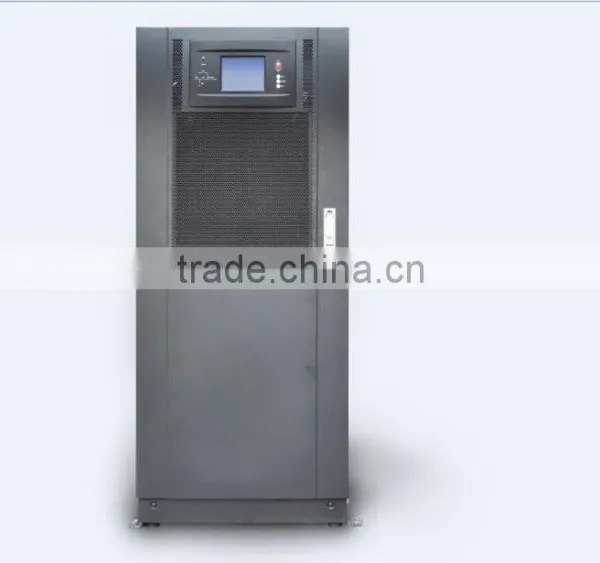

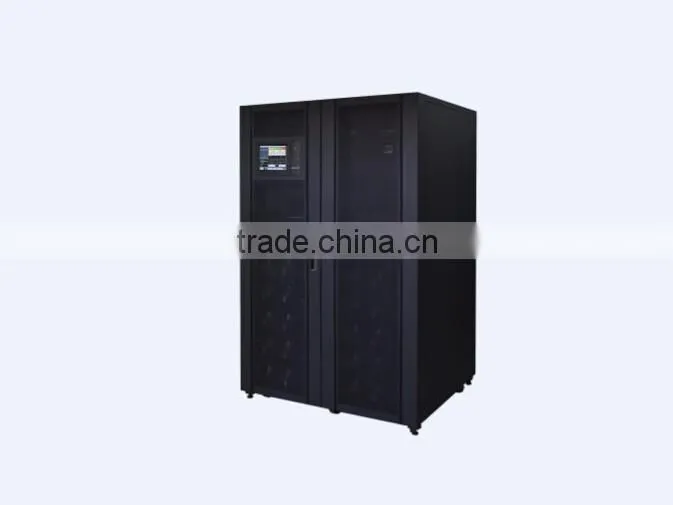

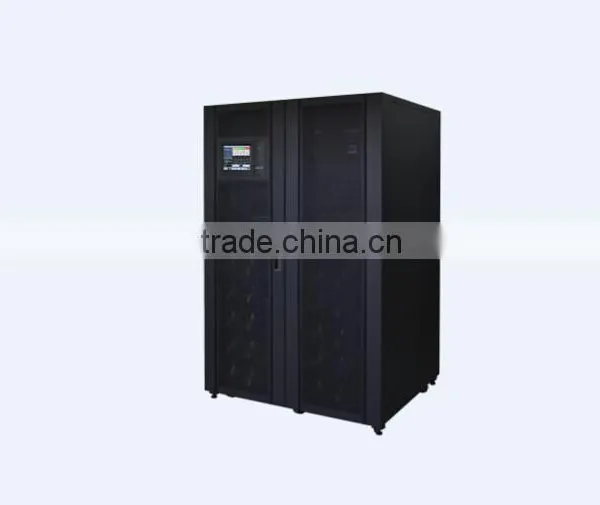

Product Images:
Our Factory:
Our Exhibitions:
Product Certifications:
Shipping:
FAQ:
Product Quality: We are a public company(stock code: 002334) and owned 800-900 engineers for the control of product quality.
Delivery Time: Usually 15-20days, it depends to your specific order information.
Package: We have professional wooden package for large machine.
Quotation: Please leave your message,and I will send you a formal quotation via email.
