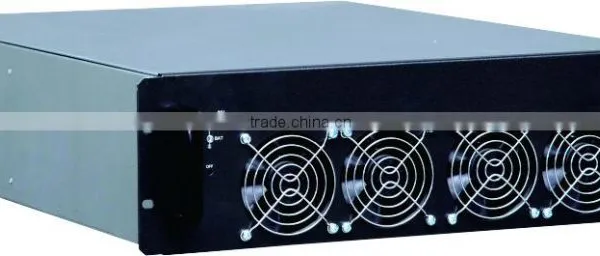

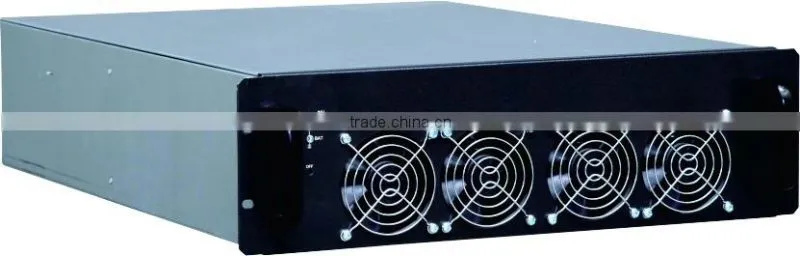

60kva 54kw 3phase high frequency modular ups power supply with intelligent power module
Product Description:
Modular design with N+X redundancy and online hot swapping ,easy to expand the capacity
Full DSP control of high stability, reliability and safety
Integrated IGBT module with improved performance and reduced size
Excellent input performances for complete compatibility with input PF of 99% and wide range of voltage
Self-Aging mode for full load test with less than 10% of the total power capacity needed
Smart charging management system, intelligently control the whole process of the charging and discharging effectively improve the life time of the battery
Independent charger for batteries, intelligent battery management system
Battery cold start, UPS can be powered on from the battery without utility.
Totally front access, top and bottom cable connection
Friendly human machine interface with touch screen
Product Specifications:
| MODEL | RM200/20 | RM120/20 | RM060/20 | RML120/12 | RML072/12 | RML036/12 | |||
| RM150/15 | RM090/15 | RM045/15 | RML100/10 | RML060/10 | RML030/10 | ||||
| RM100/10 | RM060/10 | RM030/10 | RML060/06 | RML036/06 | RML018/06 | ||||
| Capacity | 10-400KVA | 6-240KVA | |||||||
| Power Module Type | PM20/PM15/PM10 | PML12/PML10/PML06 | |||||||
| NPUT | |||||||||
| Phase | 3 Phases + Neutral + Ground | ||||||||
| Voltage | 380V/400V/415V(line to line) | 200V/208V/220V(line to line) | |||||||
| Frequency | 50/60Hz | ||||||||
| Power Factor | >0.99 | ||||||||
| THDi | THDi<3% @100% linear load | ||||||||
| Voltage Range | -20%~25% | -20%~25% | |||||||
| Frequency Range | 40Hz~70Hz | ||||||||
| OUTPUT | |||||||||
| Voltage | 380V/400V/415V | 200V/208V/220V | |||||||
| Voltage Regulation | ±1%(Balance load); ±1.5%(Unbalance load) | ||||||||
| THDu | THD<1.5%(linear load ),THD<6%(None linear load) | ||||||||
| Power Factor | 0.8 | ||||||||
| Crest Ratio | 3:01 | ||||||||
| Overload Capability | 110% for 1 hour; 125% for 10 minutes ;150% for1 minute; >150% for 200ms | ||||||||
| BATTERY | |||||||||
| Voltage | ±240VDC | ±120VDC | |||||||
| Charge Power | 20%*System Power | ||||||||
| Charge Power Precision | ±1% | ||||||||
| SYSTEM | |||||||||
| System Efficiency | Normal mode:95%; ECO mode:98%; | Normal mode:92%; ECO mode:98%; | |||||||
| Battery mode:95% | Battery mode:90% | ||||||||
| Display | LCD+LED, Touch Screen +Keyboard | ||||||||
