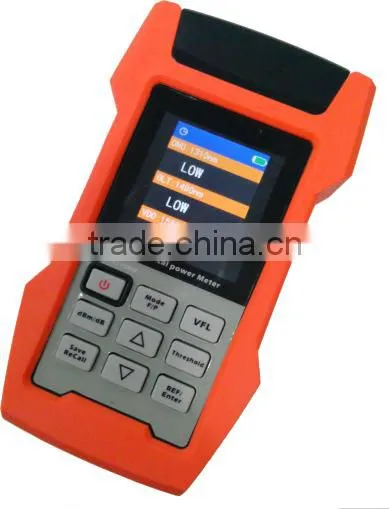

1mW VFL PON POWER METER(T-PO500V01)
Providing distinct power values for
1310 nm, 1490 nm and 1550 nm
Pass through measurement;
Simultaneously measure and display
of voice, data and video signals on
different PON architectures
Manual calibration;
Model:
|
T-PO500 |
T-PO500T |
T-PO500C |
T-PO500-V01 |
T-PO500-V10 |
PON power meter |
√ |
√ |
√ |
√ |
√ |
VFL (1mW) |
|
|
|
√ |
|
VFL (10mW) |
|
|
|
|
√ |
OPM (+6 ~ -70) |
|
√ |
|
|
|
OPM (+26 ~ -50) |
|
|
√ |
|
|
Main Characteristic
Measurement Range |
1310 nm: +10 ~ - 35 dBm |
1490 nm: +10 ~ - 50 dBm |
1550 nm: +25 ~ - 45 dBm |
Pass Through Loss |
< 1.5 dB |
||
Accuracy * |
± 0.2dB (burst signal: ± 0.5dB) |
||
Threshold sets |
10 |
||
Data Storage |
100 |
||
Connector |
SC/PC ( or customize ) |
||
Auto Power Off |
No operation in 10 minutes (can be canceled), Low battery energy |
||
Battery Charge |
Yes |
||
Connect To PC |
Optional function |
||
Manual Calibration |
Yes |
||
Operate Time |
Above 36 hours |
||
Temperature |
Storage: -20 -- +60 ℃, < 90%RH Operating: -10 -- +50 ℃, < 90%RH |
||
Power Supply |
3 * AA batteries or AC/DC adapter |
||
Size / Weight |
190mm * 90mm *40mm / About 450g |
||
* at 20±3℃, with SC/PC connector, -10dBm
Accessories
Standard |
Carrying bag |
1 |
User’s manual |
1 |
|
Calibration certificate |
1 |
|
Optional |
AC/DC adapter |
1 |
software |
1 |
|
USB cable |
1 |
