Optical Power Meter and Visual Fault Locator

Optical Power Meter and Visual Fault Locator photo-1

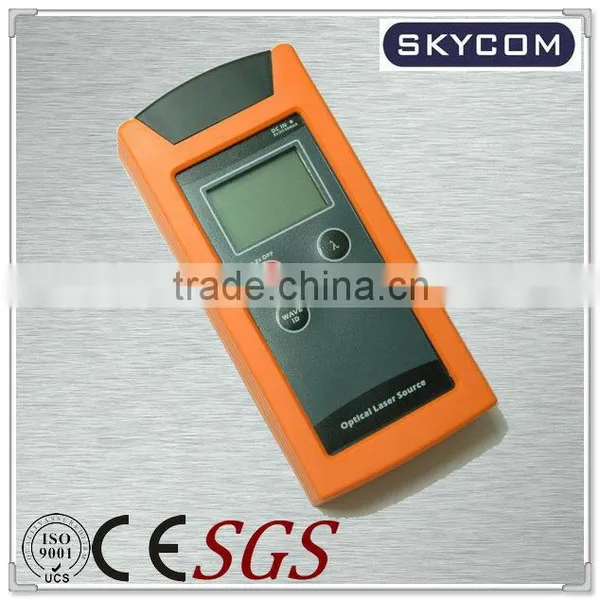

Optical Power Meter and Visual Fault Locator photo-2

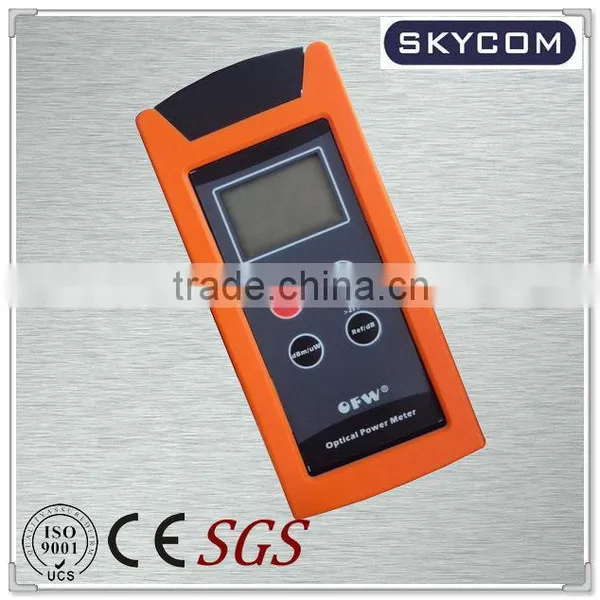

Optical Power Meter and Visual Fault Locator photo-3

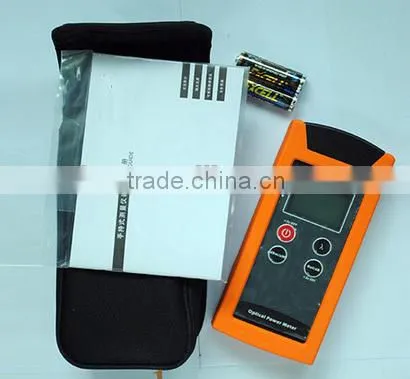

Optical Power Meter and Visual Fault Locator photo-4
US$ 30 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
skcom
Model Number:
BML-205
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name skcom
Model Number BML-205



1) Wide measuremen range;

High resolution: 0.01dB;

Good accuracy:±0.2dB;



2)  Insertion loss test in dB;



3) SM or MM applications;



4) FC/PC and 2.5mm universal connector;



5) 850/1300/1310/1490/1550/1625nm

Calibrated CW wavelengths;



6) Built in VFL



7) Energy save mode: about 10 minutes

no operation will cause the device

automatic power off (can be cancelled);



8) Reference value storage;



9) Full energy can support above 100

hours operation;





Model Option:



BPV330X---XXX



       A   B



A:



Optical power meter

T

C

Range

+10~-70dBm

+26~-50dBm







B:



Visual fault locator

V01

V10

Output power

1mW

10mW







Main Characteristic



OPTICAL POWER METER

Accuracy *

± 0.2dB

Calibrated Wavelengths

850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm

Resolution

0.01dB

Connector

FC/PC & 2.5mm Universal

Reference Value storage

Yes

VISUAL FAULT LCOATOR

Connector

2.5mm UPP

Glint

Yes

OTHERS

Automatic Power Off

No operation in 10 minutes (can be cancelled), Low battery energy

Battery Charge

Yes

Battery Life

Above 100 hours (1800mAH battery)

Storage Temperature

-20 -- +60 °C, < 90%RH

Operating Temperature

-10 -- +50 °C, < 90%RH

Power Supply

AA * 2 batteries or AC/DC power supply adapter

Size

160mm * 75mm * 32mm

Weight

About 180g



* at 20±3°C, CW, with FC connector, -10dBm



* For 850nm/1300nm, the Min. Power measurement is -60dBm@BPM100, -40dBm@BPM101















Accessories



Standard

Carrying bag

1

User’s manual

1

Calibration certification

1

Optional

AC/DC adapter

1
