receiver dvb-s asi out av out

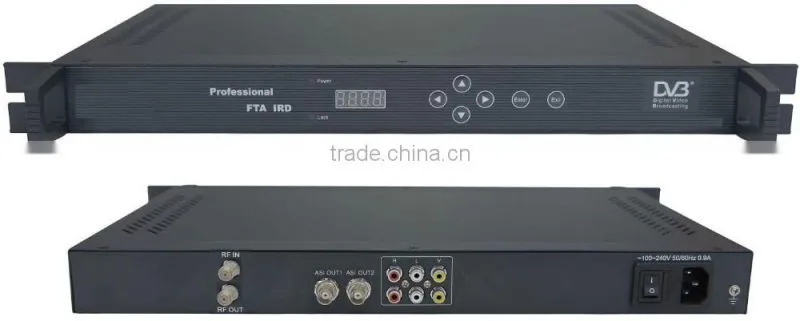

DVB-S/S2 IRD (FTA)
Overview
DVB-S/S2 IRD adopts advanced QPSK/8PSK modulation mode and MPEG-2 technique and it has 1 DVB-S/S2 RF input interface, receiving and decoding all digital satellite programs to output ASI TS stream and AV signal.
Technical Specification
Input |
RF, F-head |
||
Frequency |
950~2150MHZ |
||
Modulation Mode |
8PSK/QPSK |
||
Output interface |
ASI |
2 BNC ASI/TS, DVB standard |
|
AV |
RCA(left/right sound and video) |
||
Decoding |
Video mode |
PAL/NTSC |
|
Video format |
Only SD MPEG-2 TS |
||
Audio format |
MPEG-1 Layer 1/2 |
||
General Features |
Temperature Range |
0 ~ 45 (Operation); -20 ~ 80 (Storage) |
|
Power |
100-240VAC±10%, 50/60Hz, 25W |
||
Order Guide
5301 |

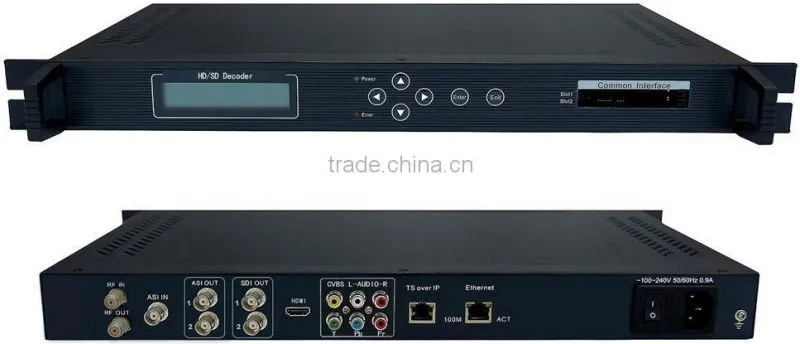

DVB-S/S2 Decoder(DVB-S/S2+ASI+IP in,2*CI,AV+HDMI+SDI+YPbPr+IP+ASI out)
|
2133 |

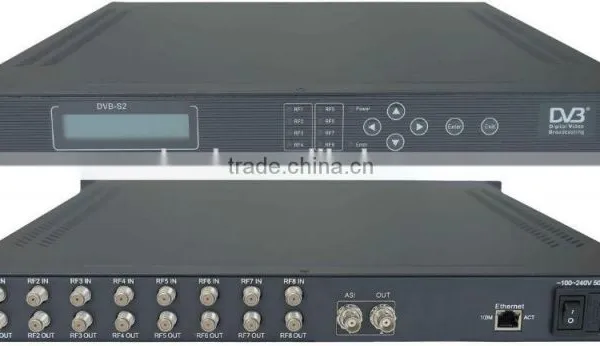

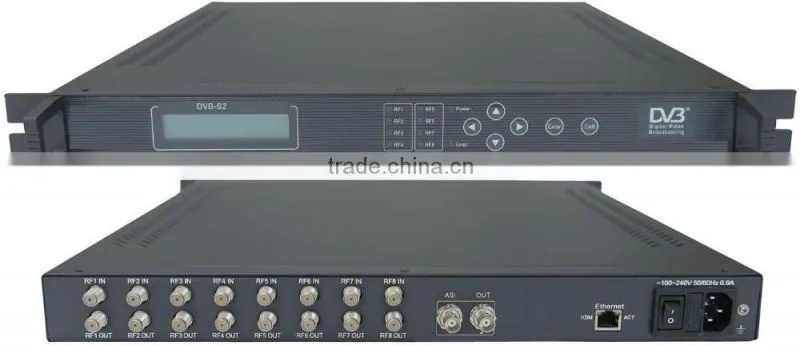

8×RF (DVB-S/S2) in, ASI out
|
5115 |
DVB-S/S2 Decoder(DVB-S/S2 in, AV+ASI out) |
