iptv HD IP Encoder(4 HDMI in and IP/multicast/SPTS out)
HD H.264 IP Encoder
Overview

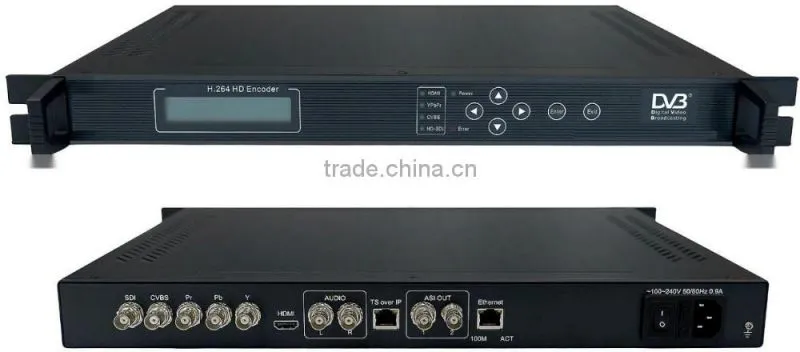

HD H.264 IP Encoder has 1×HD SDI, 1×HDMI, 1×HD YPbPr, 1×SD CVBS and one pair of unbalanced audio input interfaces and DVB Transport Stream (TS/ASI) and IP (TS over IP) output interfaces, supporting multiple HD formats including 1080i/p and 720p. It suits 1U rack and can be remotely controlled by Network Management Software.
Technical Specification
Input |
SD CVBS |
BNC interface |
HD SDI |
BNC interface |
|
HD HDMI |
High Definition Multimedia Interface, Support HDCP
|
|
HD YPbPr |
BNC interface |
|
Video Coding |
ISO/IEC14496-10 (H.264/MPEG-4 AVC) |
|
4:2:0 encoding H.264 HP@L4 MP@L3 | ||
H.264 Adaptive Field Frame (AFF) | ||
H.264 Field-Based (FB) | ||
|
full HD: 1920×1080×60i, 1920×1080×50i/p, 1280×720×60p/50p, SD:720×480×60i (NTSC), 720×576×50i (PAL) | ||
Audio |
BitRate |
128, 160, 192, 224, 256, 320, 384Kbps |
Property |
MPEG-1, Layer2 |
|
Output |
2×ASI |
TS DVB standard, BNC interface |
BitRate |
1 to 20Mbps |
|
IP |
IP/UDP (TS over IP), Unicast/Multicast |
|
Control |
NMS (Ethernet Port), Keyboard + LCD |
|
General Features |
Size |
482mm×280mm×44mm (1RU) |
Temperature |
0~45°C (Operation); -20~80°C (Storage) |
|
Power |
220VAC (±10%), 50Hz, 25W |
|
Don’t support 4:2:2;biss;FEC;AES/EBU; | ||
Order Guide
1106 |
HDMI+YPbPr+CVBS in, ASI+IP out |
1105 |
HDMI+SDI+YPbPr+CVBS in, ASI+IP out |
1115 |
SD/HD H.264 4HDMI Encoder(4*HDMI+ASI in,ASI+IP(1*MPTS/4*SPTS) out) |
1815 |
SD/HD H.264 8HDMI Encoder(8*HDMI+ASI in,ASI+IP(1*MPTS/8*SPTS) out) |
Network management software

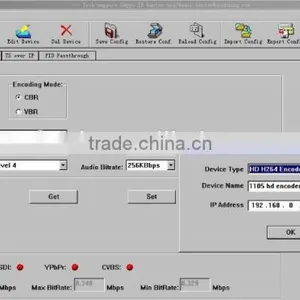

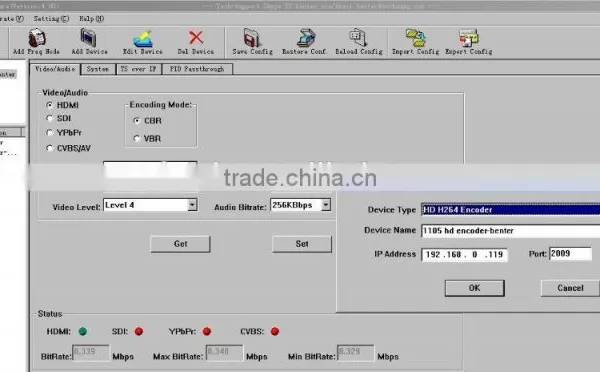

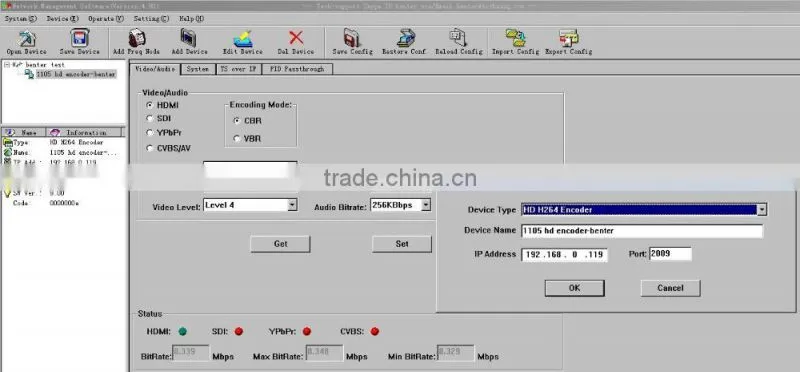

1>Encoding setting:

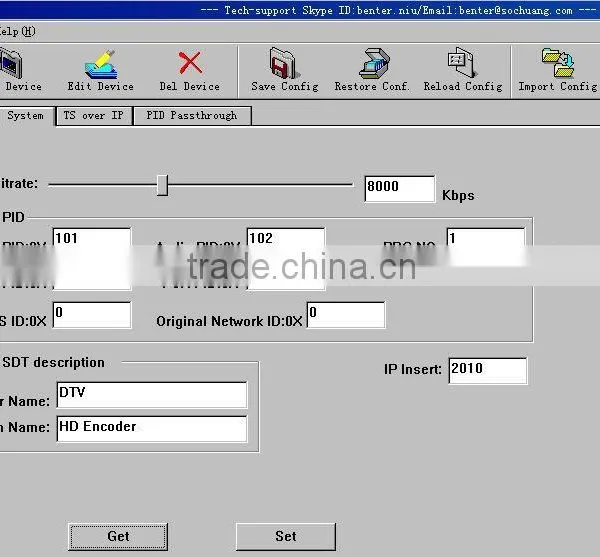

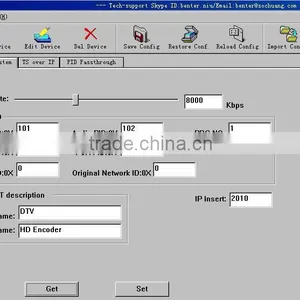

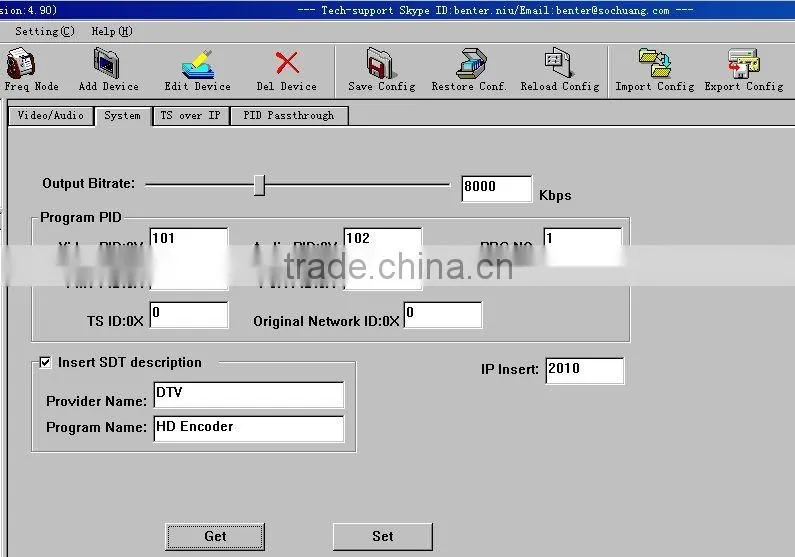

2>bitrate,PID,name setting:

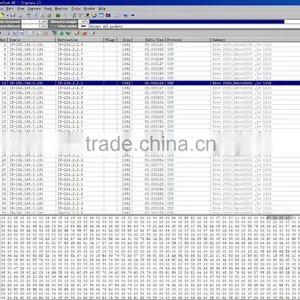

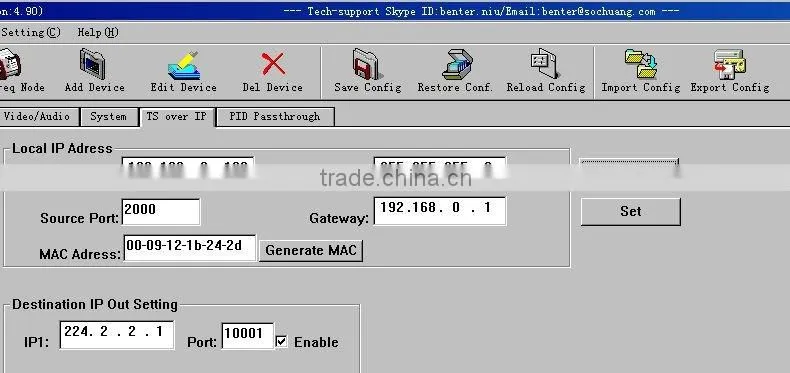

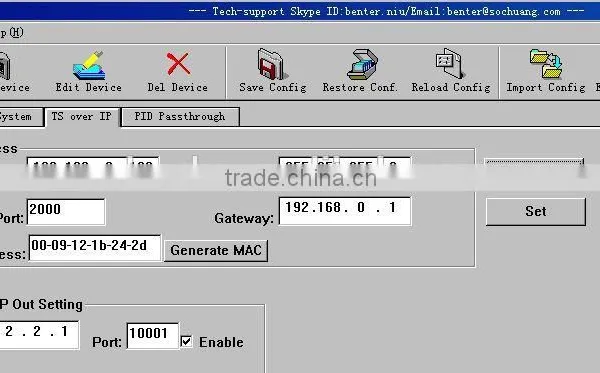

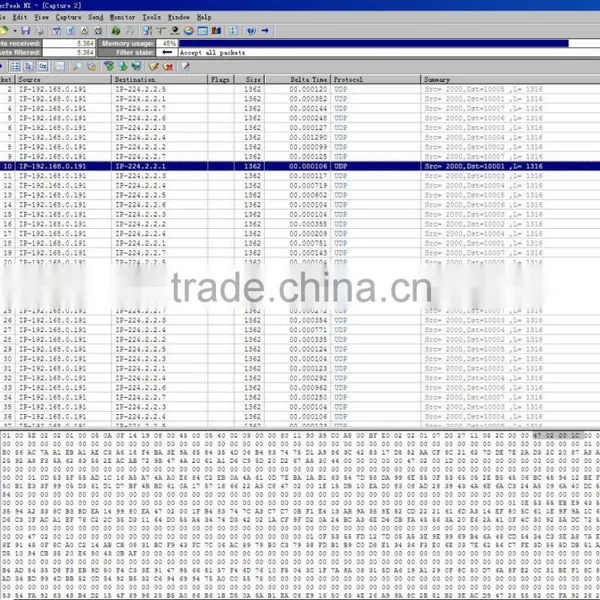

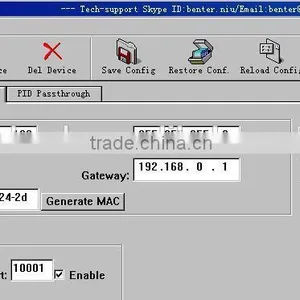

3>IP output setting,TS over UDP:
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
