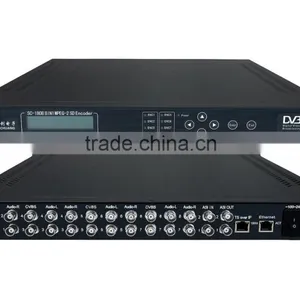

Help CenterSC-1808 8 in 1 MPEG2 IP Encoder / Digital tv Encoder
Related Products
-
SC-1808 Mpeg2 Iptv EncoderUS$ 700 - 1,000MOQ: 1 Set -
SC-1808 Audio Iptv Encoder/video Encoder IptvUS$ 700 - 1,000MOQ: 1 Set
-
SC-1808 8-channel av ip Encoder/ip Video EncoderUS$ 700 - 1,000MOQ: 1 Set
-
SC-1808 8-channel Audio Video Iptv EncoderUS$ 700 - 1,000MOQ: 1 Set
-
SC-1808 SD 8IN1 IPTV MPEG-2 EncoderUS$ 700 - 1,000MOQ: 1 Set
Overview:

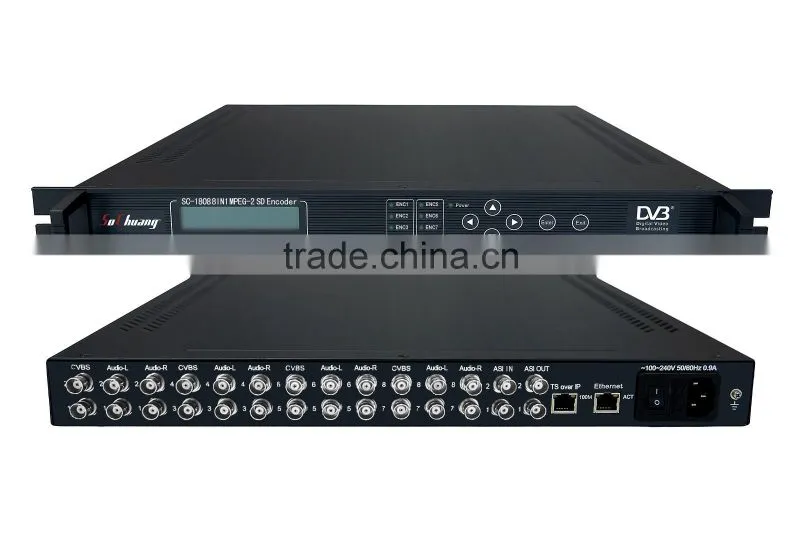

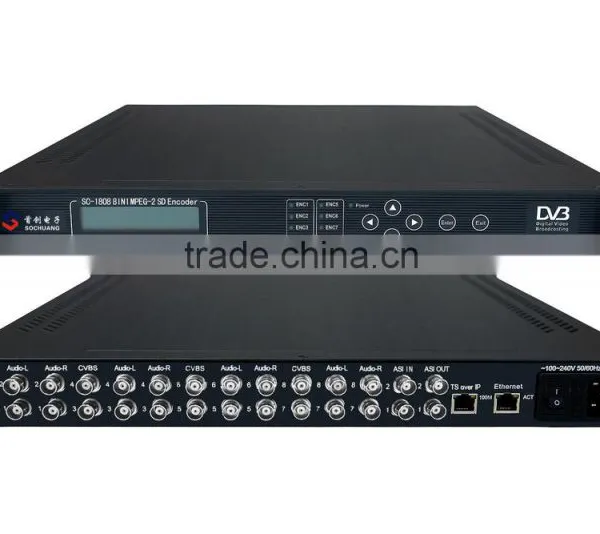

SC-1808 MPEG-2 8 in1 IP encoder is a broadcast level encoder for DVB headend. It supports standard CVBS video and stereo audio input, encode and output standard DVB transport stream with ASI interface, it also support IP data (Multicast,unicast) output via 100M RJ45 port . It's full compliant with MPEG-2 standard, with the front panel,LCD display,network management software,user can easily configure it to run standby.
Features:
. 8 channel A/V input + 1 ASI input, and generate one MPTS or SPTS stream.
. Support MPEG-2 MP @ ML (4:2:0) coding;
. Output bit rate continuously adjustable, flexible and easy to use;
. Local and remote network management;
. LCD display, easy and flexible operation;
. High reliability design;
. Stream multiplexing function;
. PID display and setting;
. SDT, program name, provider setting.
Technical Specification:
Input |
Video signal |
LEV 1.0Vp-p |
|
S-Video |
LEV 0.28Vp-p |
||
IP data insert |
Network RJ-45 10/100M base-T TX |
||
Output |
Audio signal |
LEV 2Vp-p |
|
ASI |
DVB standard |
||
TS over IP |
Rj-45 10/100 Base-TX , UDP/IP (Unicast,Multicast) |
||
Code rate |
1.0~15Mbps Continuously adjustable per channel |
||
Control |
NMS(Ethernet Port), Keyboard+LCD |
||
Video Coding |
Compliance with ISO 11172(MPEG-1) &ISO 13818(MPEG-2) |
||
MPEG-2 coding adopt MP@ML (4:2:0) | |||
MPEG-2 Adaptive Field Frame (AFF) | |||
MPEG-2 field based (FB) | |||
audio coding |
sampling |
32KHz,44.1KHz,48KHz |
|
code rate |
64,128,192,256,384 Kbps |
||
property |
MPEG-1 1/2 layer, Support stereo or dual-channel |
||
Resolution |
Standard |
Compliance with CCIR601 standard, Support 1/2D1,2/3D1,3/4D1 |
|
PAL |
720*576,704*576,640*576,544*576,480*576,384*576,352*576 |
||
NTSC |
720*480,704*480,640*480,544*480,480*480,384*480,352*480 |
||
General Features |
Size |
44mm * 482mm * 390mm |
|
Environment |
0 ~ 45(Operating);-20~ 80(Storage) |
||
Power |
220VAC±10%,50Hz,25W |
||
Network Management:

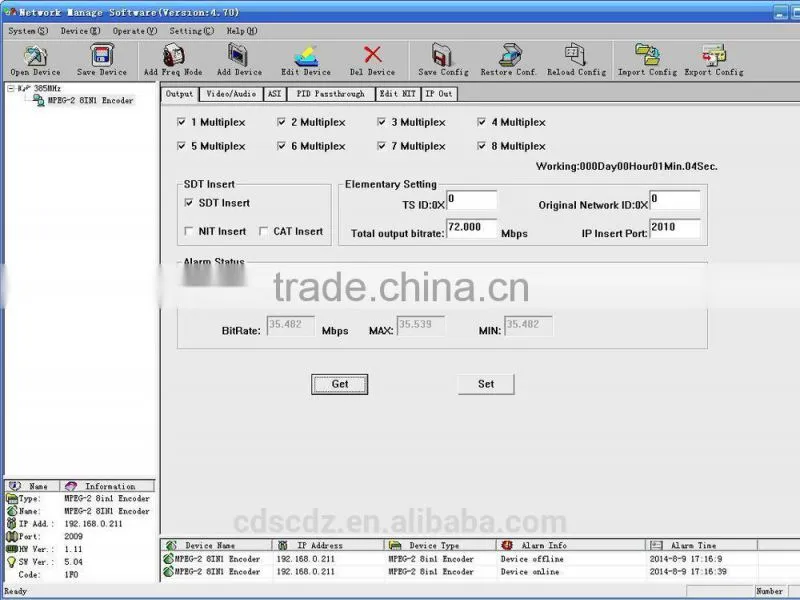

P1: MPEG-2 encoder-output setting

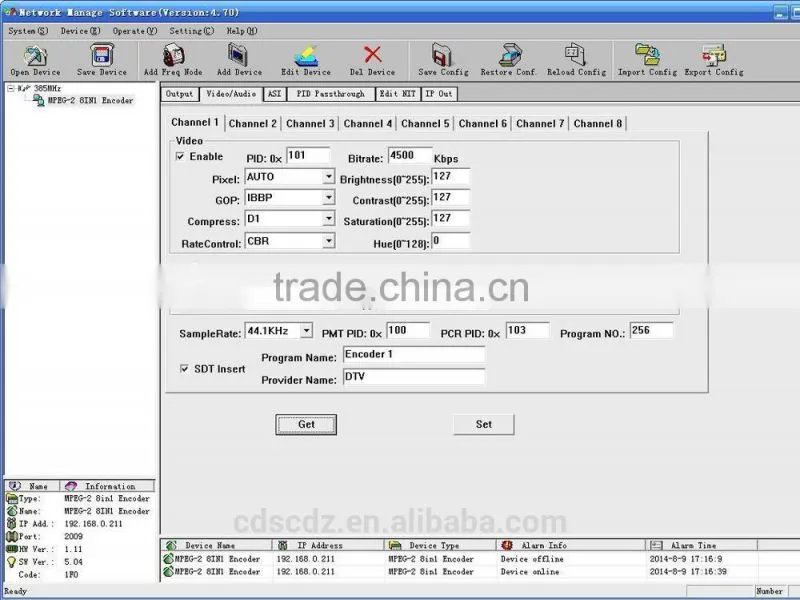

P2: MPEG-2 encoder-video setting

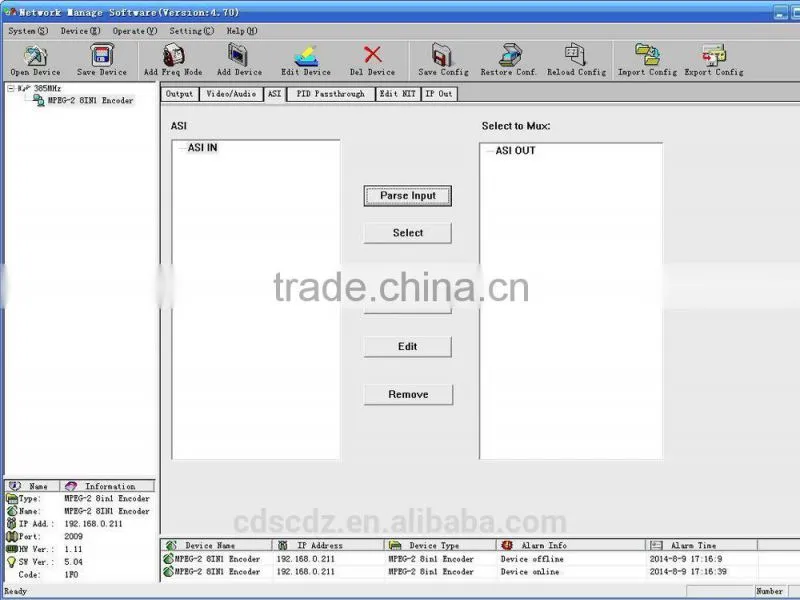

P3: MPEG-2 encoder-ASI multiplex

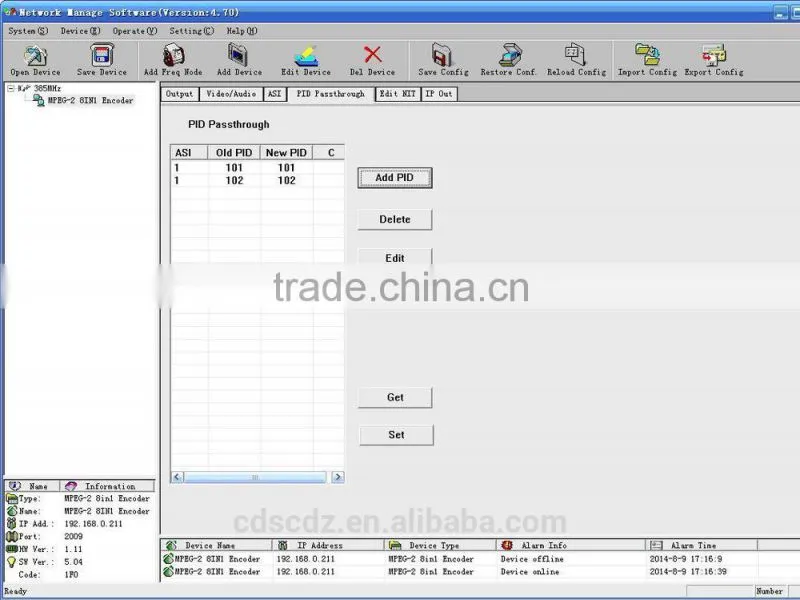

P4: MPEG-2 encoder-pid passthough
P5: MPEG-2 encoder-edit nit

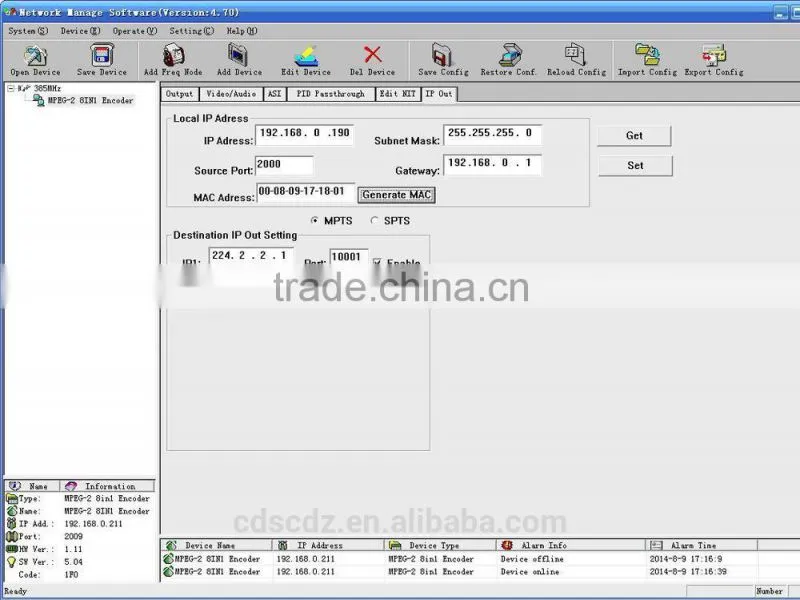

P6: MPEG-2 encoder-ip output setting
3 years warranty, lifetime maintenance, technical support, OEM.
