Specifications
* outdoor waterproof Iron cabinet* time,date, temperature, graphic, (3D,DIY) animation, worldwide language display-
Single side full color RF wireless communication P10 LED pharmacy cross sign
1. Textual instruction
Monochrome&double-color& full color are available
a. function parameter:
1. 4 grades of brightness and it support automatic adjustment or programmed control in different period.
2. 5 grades of speeds for text, 8 grades of moving speeds for animation.
3. Animation setting: comes with animation or user-defined animation displaying.
4.Time control: set two time periods to open and close the LED automatically and timing function.
5. 3kinds of fonts, fonts size&offset setting, bold and italics setting.
6.Worldwide language displaying.
7. Multi-language operation interface: English, French, Italian, Spanish etc..
8. Display function: current temperature (Centigrade), time, date, graphics, animations (including GIF, 3D) and text .
9. All operations can be done very easily and conveniently!
10. Low power consumption.
b. tech. parameter:
| Part No | Description | |
| XMSCR-10S | Pixel Pitch | 10mm |
| Display size | 480*480(mm) | |
| With frame size | 520 × 820 ×100mm | |
| Cabinet Resolution | 48*48 | |
| Weight (kg) | 18 | |
| Display color | R,G,B,W,Y (or dual/full color ) | |
| Display content | Animation, graphics, text, time, date, temperature etc | |
| Communication | RS232/Wireless/GPRS/TCP IP/WIFI | |
| Packing | Carton | |
| Brightness | ≥3000|5000|6000cd/m2 | |
| Max power consumption | 60/120/180W(Green/dual/full color) | |
| Life span | 100,000hours | |
| Part No | Description | |
| XMSCR-16S | Pixel Pitch | 16mm |
| Display size | 768*768(mm) | |
| With frame size | 808*1109*100(mm) | |
| Cabinet Resolution | 48*48 | |
| Weight (kg) | 30 | |
| Display color | R,G,B,W,Y (or dual/full color ) | |
| Display content | Animation, graphics, text, time, date, temperature etc | |
| Communication | RS232/Wireless/GPRS/TCP IP/WIFI | |
| Packing | Carton | |
| Brightness | ≥3000|5000|6000cd/m2 | |
| Max power consumption | 60/120/180W(Green/dual/full color) | |
| Life span | 100,000hours | |
| Part No | Description | |
| XMSCR-20S | Pixel Pitch | 20mm |
| Display size | 960*960(mm) | |
| With frame size | 1000*1400*100(mm) | |
| Cabinet Resolution | 48*48 | |
| Weight (kg) | 40 | |
| Display color | R,G,B,W,Y (or dual/full color ) | |
| Display content | Animation, graphics, text, time, date, temperature etc | |
| Communication | RS232/Wireless/GPRS/TCP IP/WIFI | |
| Packing | Carton | |
| Brightness | ≥2500|4800|5800cd/m2 | |
| Max power consumption | 170/340/510W(Green/dual/full color) | |
| Life span | 100,000hours | |
| Part No | Description | |
| XMSCR-25S | Pixel Pitch | 25mm |
| Display size | 1200*1200(mm) | |
| With frame size | 1240*1640*100(mm) | |
| Cabinet Resolution | 48*48 | |
| Weight (kg) | 50 | |
| Display color | R,G,B,W,Y (or dual/full color ) | |
| Display content | Animation, graphics, text, time, date, temperature etc | |
| Communication | RS232/Wireless/GPRS/TCP IP/WIFI | |
| Packing | Carton | |
| Brightness | ≥3000|5000|6000cd/m2 | |
| Max power consumption | 170/340/510W(Green/dual/full color) | |
| Life span | 100,000hours | |

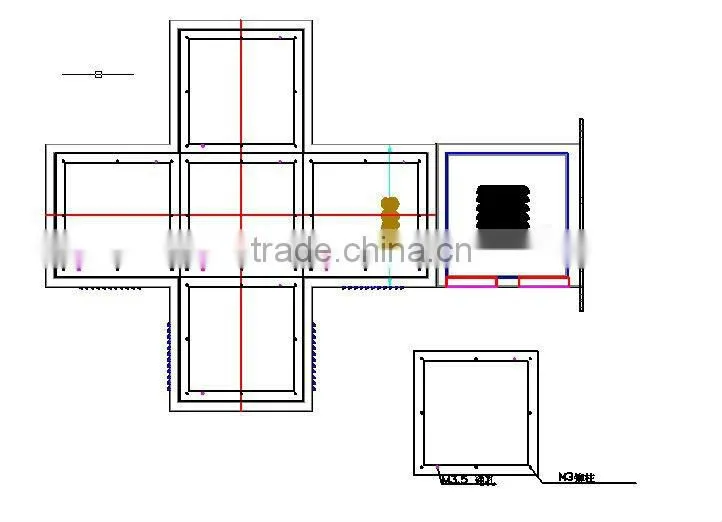

2. Photo instruction

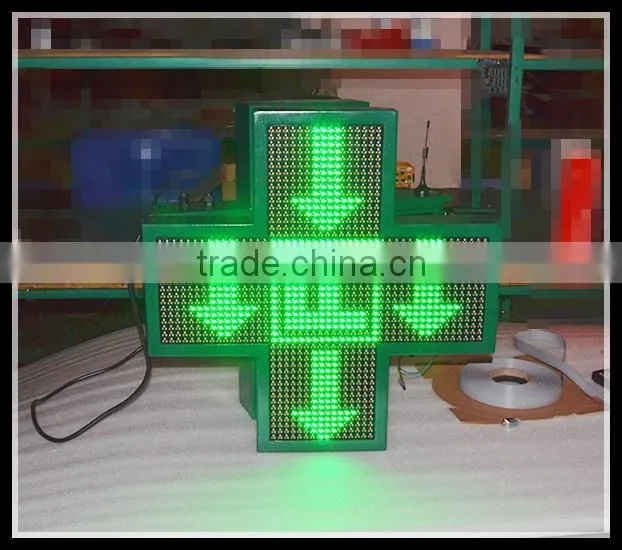

3. Real prodcut photo show
More phtots showed in below link:
https://img13.fr-trading.com/custom_page_2/Showroom.html

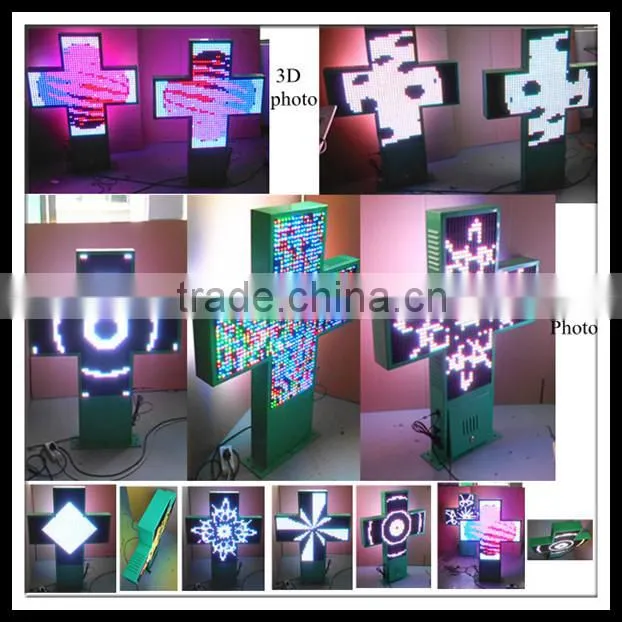

Other type:

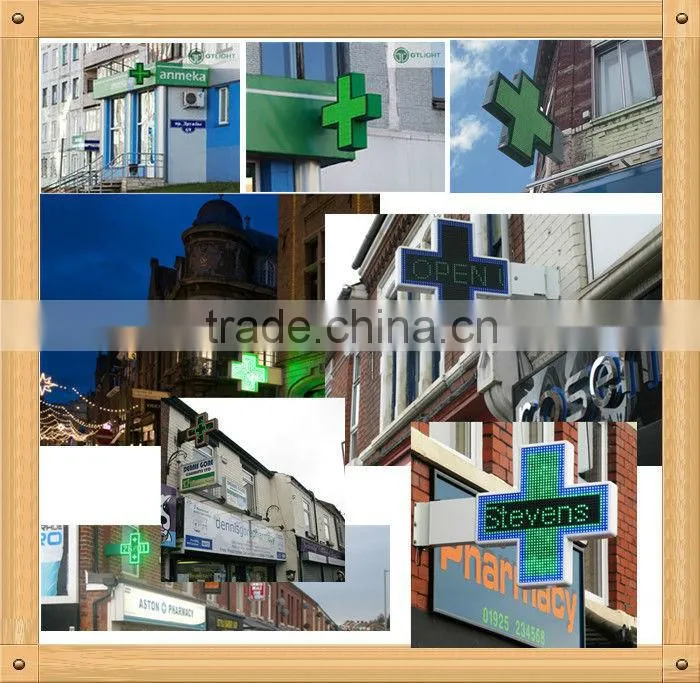

5. Installation photos
