Overview
8-in-1 DVB-S/S2 IP receiver (IRD), is one of the main equipment of iptv, cable tv digital head-end, it receive 8 channels DVB-S/S2 signal (RF) and output 64 SPTS IP or MPTS transport stream. It can be applied to the IPTV headend, hotel iptv, hospital iptv, etc., up to 64 programs TS stream output with IGMP multicast supported.
Features
u 8 channel DVB-S2 input (8 tuner);
u Support seleting 64 programs output to 64 SPTS;
u Full hardware stream output;
u Support IP UDP / RTP protocol(Gigabit, SPTS/Multicast);
u LCD display, easy and flexible to operate;
u Local and remote management;
u High reliability design, stable;
Technical Specification
Control |
NMS(Ethernet Port), Keyboard + LCD |
|
Demodulation Mode |
DVB-S/S2 QPSK/8PSK |
|
Symbol rate |
1~45Mbaud/s |
|
Frequency |
950MHz ~ 2150MHz |
|
Error correction coding |
RS Coding 188/204 |
|
Input |
RF |
8 F-type |
output |
IP |
SPTS/ Multicast 1000BASE-T(64*SPTS) UDP/RTP(TS over IP) |
General Features |
Size |
44mm * 482mm * 410mm |
Environment |
0 ~ 45(Operating); -20 ~ 80(Storage) |
|
NMS Management
P1: Signal monitor
P2: Satellite Parameters
P3: Multiplexing
P4: IP output setting

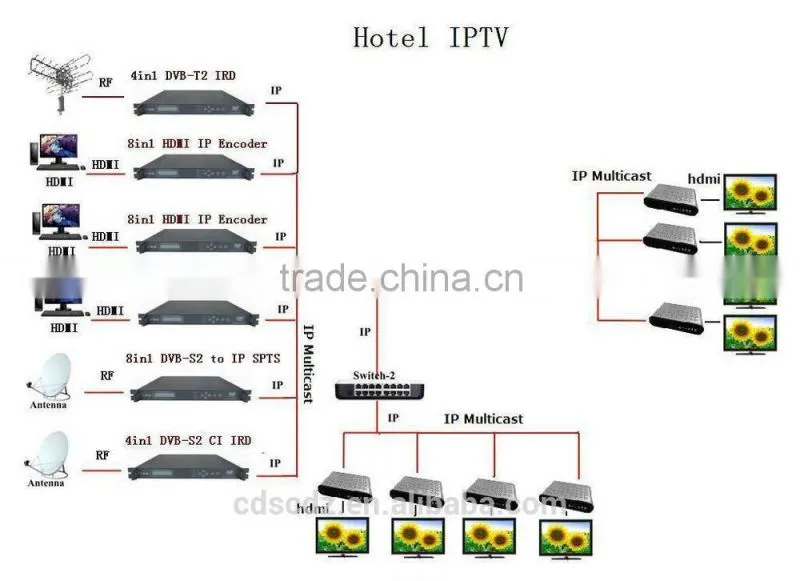

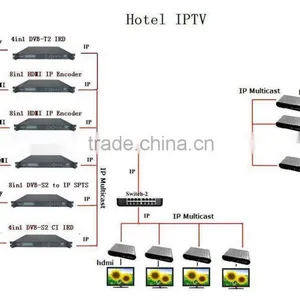

Hotel IPTV
Cable TV muxed with IPTV headend
3 years warranty, life time maintanence, technical support, OEM,ODM.
Chengdu Sochaung Electronics,Co.Ltd. welcome to visit our website:
Any question, please add me Skype: jackpeng2000
