Overview

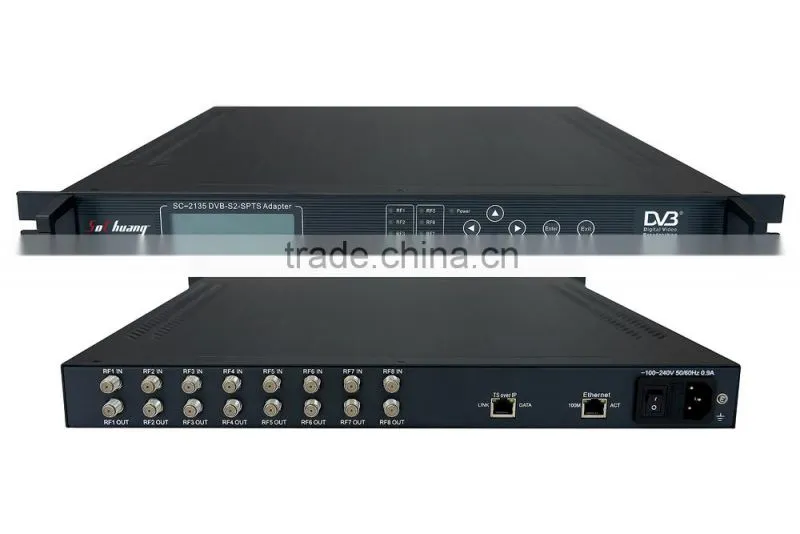

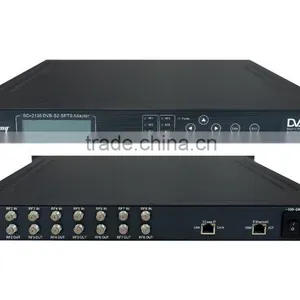

8-in-1 DVB-S/S2 IP receiver (IRD), is one of the main equipment of iptv, cable tv digital head-end, it receive 8 channels DVB-S/S2 signal (RF) and output 64 SPTS IP or MPTS transport stream. It can be applied to the IPTV headend, up to 64 programs TS stream output with IGMP multicast supported.
Features
u 8 channel DVB-S2 input (8 tuner);
u Support seleting 64 programs output to 64 SPTS;
u Full hardware stream output;
u Support IP UDP / RTP protocol(Gigabit, SPTS/Multicast);
u LCD display, easy and flexible to operate;
u Local and remote management;
u High reliability design, stable;
Technical Specification
Control |
NMS(Ethernet Port), Keyboard + LCD |
|
Demodulation Mode |
DVB-S/S2 QPSK/8PSK |
|
Symbol rate |
1~45Mbaud/s |
|
Frequency |
950MHz ~ 2150MHz |
|
Error correction coding |
RS Coding 188/204 |
|
Input |
RF |
8 F-type |
output |
IP |
SPTS/ Multicast 1000BASE-T(64*SPTS) UDP/RTP(TS over IP) |
General Features |
Size |
44mm * 482mm * 410mm |
Environment |
0 ~ 45(Operating); -20 ~ 80(Storage) |
|
NMS Management

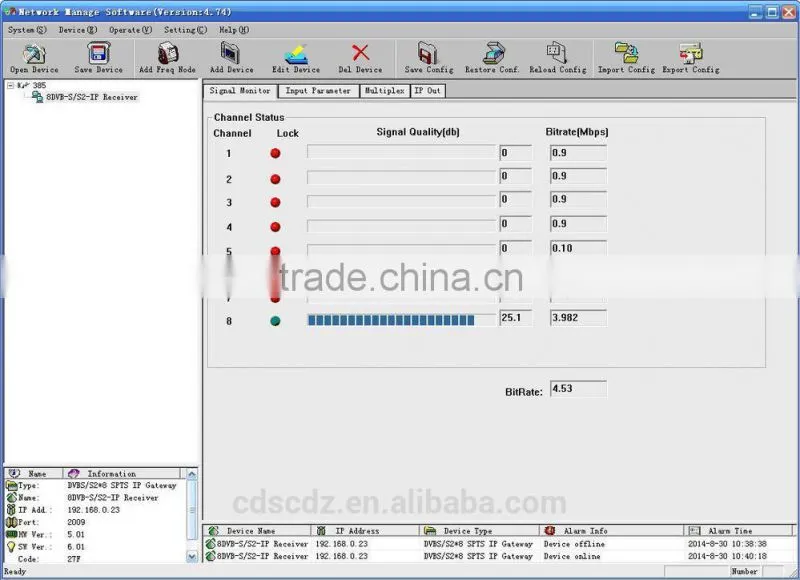

P1: Signal monitor

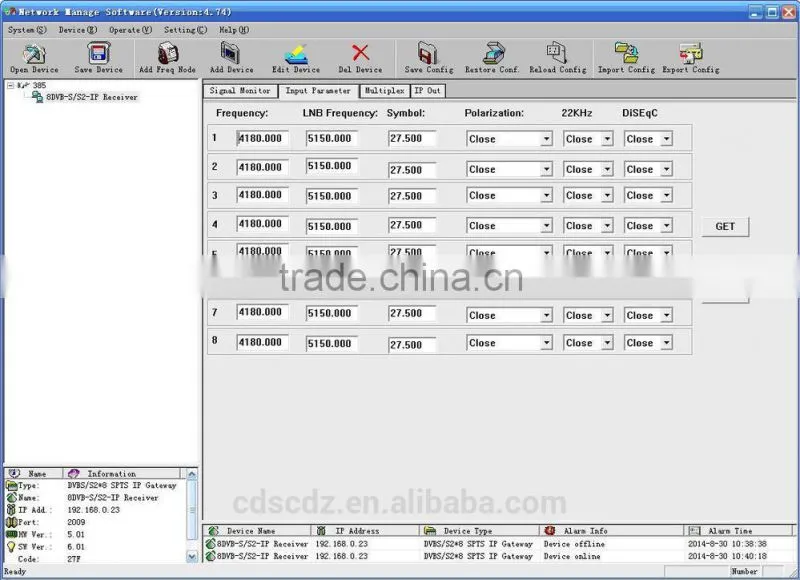

P2: Satellite Parameters

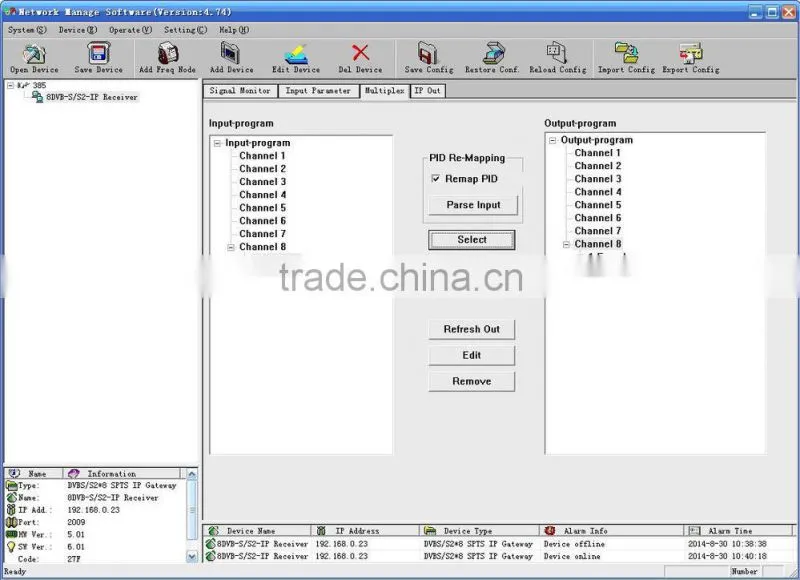

P3: Multiplexing

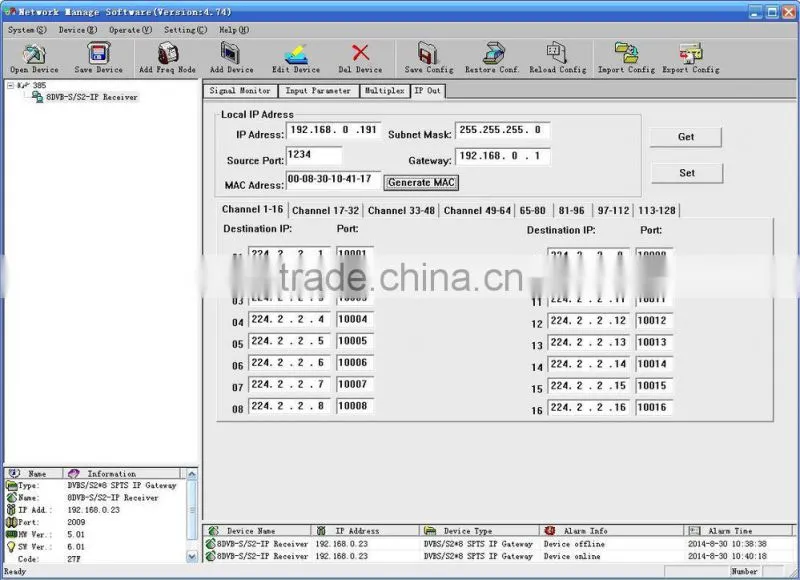

P4: IP output setting
3 years warranty, life time maintanence, technical support, OEM,ODM.
